001
MAIN HARNESS ASS Y
278002002
760,30€ Unit Price incl. VAT
020
FEMALE TERMINAL
278000223
3,66€ Unit Price incl. VAT
030
MALE CONNECTOR, 4 CIRCUITS
278001308
13,13€ Unit Price incl. VAT
040
MALE CONNECTOR, 26 CIRCUITS
278000993
40,14€ Unit Price incl. VAT
050
MALE TERMINAL HOUSING, 26 CIRCUITS
278001062
40,14€ Unit Price incl. VAT
060
HOUSING-TAB
270000137
710001539
22,34€ Unit Price incl. VAT
080
CONNECTOR_FEMALE 3 CAVITIES
278000273
10,90€ Unit Price incl. VAT
090
FEMALE LOCK, 6 CIRCUITS
278000735
3,66€ Unit Price incl. VAT
100
MALE TERMINAL
278000631
5,00€ Unit Price incl. VAT
110
CONNECTOR_MALE 6 CAVITIES
278000736
710001540
25,60€ Unit Price incl. VAT
130
Cosse Femelle
278001276
Not Available
140
FEMALE TERMINAL
278001114
3,66€ Unit Price incl. VAT
150
FEMALE TERMINAL
278000995
5,62€ Unit Price incl. VAT
160
FEMALE TERMINAL
278000994
2,71€ Unit Price incl. VAT
170
FEMALE TERMINAL
409011700
3,96€ Unit Price incl. VAT
180
MALE TERMINAL
515175823
5,36€ Unit Price incl. VAT
200
FEMALE TERMINAL
278000632
2,42€ Unit Price incl. VAT
210
WIRE SEAL
278000996
2,90€ Unit Price incl. VAT
220
FEMALE TERMINAL
278001661
9,89€ Unit Price incl. VAT
230
MALE HOUSING, 41 CIRCUITS
278001751
28,64€ Unit Price incl. VAT
240
SEALING CAP
293000070
5,44€ Unit Price incl. VAT
250
Joint d'Étanchéité
278001223
Not Available
260
WIRE SEAL
278000218
5,00€ Unit Price incl. VAT
280
MALE LOCK, 3 CIRCUITS
409207600
3,66€ Unit Price incl. VAT
290
MALE LOCK, 6 CIRCUITS
278000737
2,71€ Unit Price incl. VAT
300
WRAP_TIE 142 X 3.2
293750002
1,38€ Unit Price incl. VAT
310
CONNECTOR_MALE 3 CAVITIES
409207000
278002378
15,64€ Unit Price incl. VAT
320
FEMALE HOUSING, 4 CIRCUITS
278000635
18,54€ Unit Price incl. VAT
330
FEMALE WEDGE, 4 CIRCUITS
278000636
5,00€ Unit Price incl. VAT
360
FEMALE TERMINAL HOUSING, 2 CIRCUITS
278001673
27,94€ Unit Price incl. VAT
370
WEDGE-2 WAYS M
278001671
4,26€ Unit Price incl. VAT
380
FEMALE TERMINAL
515175260
9,07€ Unit Price incl. VAT
420
MALE CONNECTOR, 4 CIRCUITS
278000739
21,42€ Unit Price incl. VAT
430
MALE LOCK, 4 CIRCUITS
278000738
3,52€ Unit Price incl. VAT
450
FEMALE TERMINAL
278001750
4,00€ Unit Price incl. VAT
460
CONNECTOR_FEMALE 2 CAVITIES
278000220
17,26€ Unit Price incl. VAT
470
CONNECTOR_FEMALE 3 CAVITIES
409207400
278002375
36,44€ Unit Price incl. VAT
480
FEMALE LOCK
409207200
5,00€ Unit Price incl. VAT
490
Not Available As Spare Parts
XXX
Not Available
500
Not Available As Spare Parts
XXX
Not Available
510
Not Available As Spare Parts
XXX
Not Available
520
Not Available As Spare Parts
XXX
Not Available
530
Not Available As Spare Parts
XXX
Not Available
540
Not Available As Spare Parts
XXX
Not Available
560
Not Available As Spare Parts
XXX
Not Available
570
Not Available As Spare Parts
XXX
Not Available
580
Not Available As Spare Parts
XXX
Not Available
600
Not Available As Spare Parts
XXX
Not Available
610
Not Available As Spare Parts
XXX
Not Available
620
Not Available As Spare Parts
XXX
Not Available
630
Not Available As Spare Parts
XXX
Not Available
640
Not Available As Spare Parts
XXX
Not Available
650
BATTERY CABLE
278002058
38,17€ Unit Price incl. VAT
660
FUSE, 30 AMPERES
410917200
3,90€ Unit Price incl. VAT
670
CONNECTOR_FEMALE 2 CAVITIES
278001113
19,79€ Unit Price incl. VAT
680
FUSE HOLDER
278001325
10,38€ Unit Price incl. VAT
690
FEMALE TERMINAL
710000357
8,78€ Unit Price incl. VAT
696
CONNECTOR, 3 CIRCUITS
278002064
30,74€ Unit Price incl. VAT
700
BUS CONNECTOR, 6 CIRCUITS
278001892
34,55€ Unit Price incl. VAT

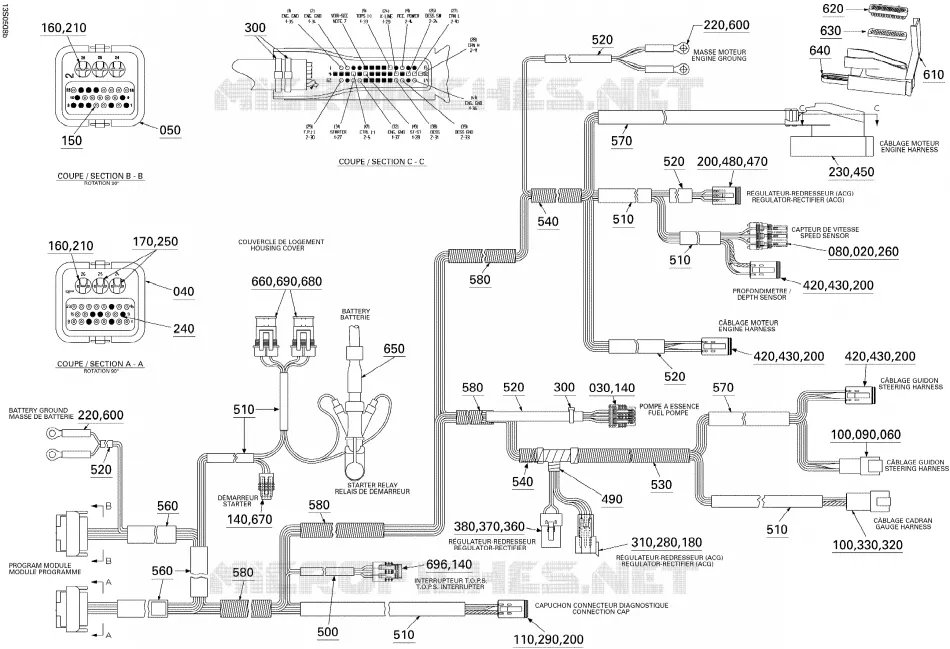

Find the detailed Electrical Harness 2 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.
