Steering System for Sea-Doo 01- Cooling System from 1997

HELM ASS Y

204390038

204390361

259,00€ Unit Price incl. VAT

STEERING (BLACK)

277000508

204390440 , 204390441

Not Available

CENTRE VOLANT *CENTER-STEERING

277000509

50,99€ Unit Price incl. VAT

COLLAR, YELLOW

277000507

44,00€ Unit Price incl. VAT

SCREW-HEX.CAP DIN.933A2

210000015

207163060

1,66€ Unit Price incl. VAT

CABLE DIRECT.DR*CABLE-STEER.RH

204390047

216,50€ Unit Price incl. VAT

RONDELLE 11/16 *WASHER-11/16

277000438

8,63€ Unit Price incl. VAT

ECROU 11/16-16 *NUT-11/16-16

277000437

30,80€ Unit Price incl. VAT

HEX. NUT 5/16"-24

277000439

6,72€ Unit Price incl. VAT

SEAL SWIVEL

277000440

10,24€ Unit Price incl. VAT

TERMINAL WIPER

277000441

13,82€ Unit Price incl. VAT

CABLE ACCELERAT*CABLE-RH.

204390027

129,38€ Unit Price incl. VAT

PASSE-FILS *GROMMET

293720014

3,32€ Unit Price incl. VAT

CABLE ACCELERAT*CABLE-LH.

204390028

204390065

208,01€ Unit Price incl. VAT

SPACER

277000593

11,39€ Unit Price incl. VAT

<> LOGO

415037800

704909040

17,94€ Unit Price incl. VAT

SEALANT LOCTITE SI 5011CL

296000309

44,21€ Unit Price incl. VAT

FLAT WASHER

211200019

1,40€ Unit Price incl. VAT

NUT-STOP ELASTIC MS-17830

212000005

1,25€ Unit Price incl. VAT

BUSHING

293350012

2,52€ Unit Price incl. VAT

WASHER-FLAT DIN.125A-A2

213200003

234001600

1,30€ Unit Price incl. VAT

CABLE SUPPORT

277000458

29,99€ Unit Price incl. VAT

SCREW-PT.FLANGE PAN HD.K40 X 20

211000038

241642060

1,32€ Unit Price incl. VAT

LUBRIFIANT - DEOXIT, 250 ML

293800015

293800060

25,72€ Unit Price incl. VAT

NUT-STOP ELASTIC DIN.985-A2(M6)

212000001

232561600

1,32€ Unit Price incl. VAT

PIVOT 3/8#

277000461

34,00€ Unit Price incl. VAT

LOCK NUT

211100024

5,12€ Unit Price incl. VAT

SCREW-PT.HEX.FLANGE K40 X 25

211000083

241142560

3,12€ Unit Price incl. VAT

WASHER-FLAT DIN.125A-A2(M6)

213200001

234061600

0,36€ Unit Price incl. VAT

WOODRUFF KEY

277000384

7,56€ Unit Price incl. VAT

SUPPORT

277000383

21,17€ Unit Price incl. VAT

LOCK NUT 1/2"-20

211100021

1,84€ Unit Price incl. VAT

FLAT WASHER, STAINLESS

211200006

2,40€ Unit Price incl. VAT

HEX. SCREW 1/4"-20 X 3/4#, SCOTCH GRIP

211000050

1,84€ Unit Price incl. VAT

Pivot

277000456

Not Available

LOCK WASHER 1/4"

211200025

1,50€ Unit Price incl. VAT

WASHER-FLAT DIN.9021B-A2

217042600

234042600

1,32€ Unit Price incl. VAT

SPACER 6.7 MM

277000584

10,56€ Unit Price incl. VAT

SCREW-HEX.CAP DIN.933A2

210000004

207162060

1,48€ Unit Price incl. VAT

Douille

293350014

Not Available

ARM

204390040

19,99€ Unit Price incl. VAT

TIE RAP 180 MM

294000606

414115200

0,12€ Unit Price incl. VAT

UPPER CLIP

204390037

2,39€ Unit Price incl. VAT

CABLE SUPPORT

204390035

17,92€ Unit Price incl. VAT

Écrou d'arrêt 5/8-18 NF

204390053

Not Available

HEX. SCREW 1/4"-20 X 1#, SCOTCH GRIP

211000054

5,82€ Unit Price incl. VAT

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

LOCK WASHER 1/4"

211200025

1,50€ Unit Price incl. VAT

ATT.INF.CABLE *CLIP-LOWER

204390036

9,59€ Unit Price incl. VAT

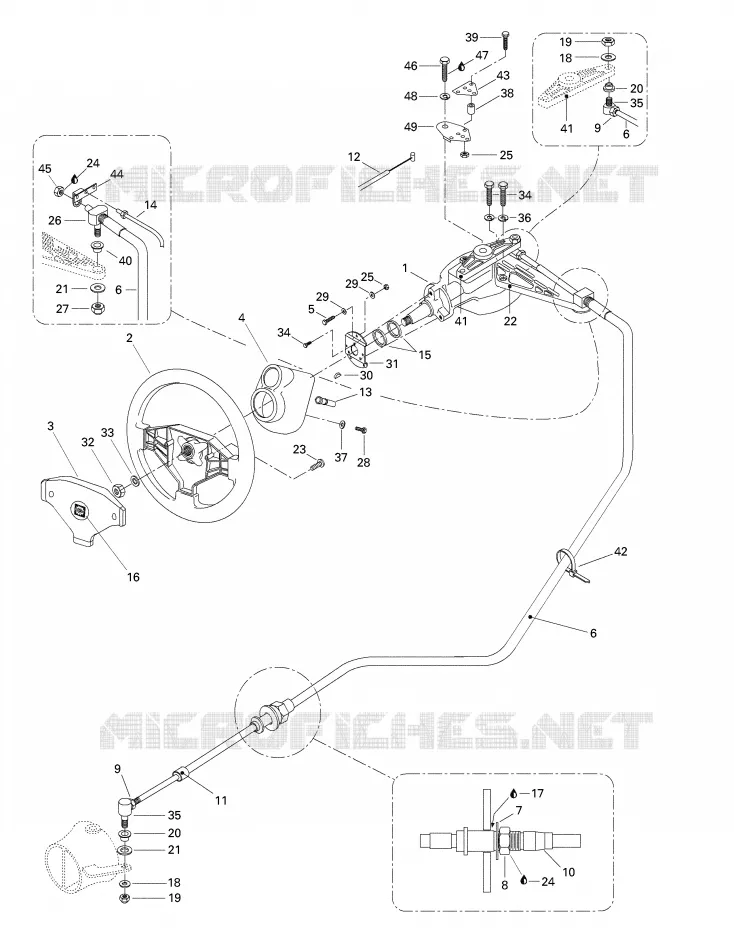

Find the detailed Steering System SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
