Engine Compartment And Accessories for Sea-Doo 00- Model Numbers from 2007

ENGINE ACCESS COVER

204050701

744,01€ Unit Price incl. VAT

Joint étanche

293200020

Not Available

HANDLE, WHITE

291000608

15,94€ Unit Price incl. VAT

HEX. FLANGED PT SCREW K40 X 16

241141660

1,66€ Unit Price incl. VAT

FLAT WASHER 4 MM, STAINLESS

234042600

1,32€ Unit Price incl. VAT

HEX. SCREW M6 X 50

207065060

2,44€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

ACCESS COVER PLUG

204072432

35,99€ Unit Price incl. VAT

POLE CLIP

204070342

17,09€ Unit Price incl. VAT

PHILLIPS SCREW M4.2 X 25

209642560

1,40€ Unit Price incl. VAT

HINGE

204072386

34,22€ Unit Price incl. VAT

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6

208563060

1,48€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

Not Available As Spare Parts

XXX

Not Available

LATCH STUD

204130146

169,01€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

TIE RAP WITH DART

204130098

4,18€ Unit Price incl. VAT

DART, BLACK

204130099

6,72€ Unit Price incl. VAT

WRAP_TIE 371 X 4.6

293750008

1,20€ Unit Price incl. VAT

ENGINE COVER

204072621

842,26€ Unit Price incl. VAT

Joint étanche

293200020

Not Available

Anneau De Néoprene

293200093

Not Available

GROMMET

293720017

9,38€ Unit Price incl. VAT

SHOCK BRACKET

204071700

204073074

Not Available

HEX. SCREW M5 X 16

207151660

1,46€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

LATCH BASE

269000015

269700109

28,88€ Unit Price incl. VAT

LATCH COVER

269700076

269700109

28,88€ Unit Price incl. VAT

LATCH LEVER

269700077

269700109

28,88€ Unit Price incl. VAT

LATCH SPRING

269700017

10,42€ Unit Price incl. VAT

SHIM

269700015

12,79€ Unit Price incl. VAT

HEX. SCREW M6 X 50

207065060

2,44€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

LATCH PROTECTOR

204070952

37,34€ Unit Price incl. VAT

POLE SUPPORT

291000642

29,99€ Unit Price incl. VAT

PHILLIPS SCREW M4 X 25

208642560

1,69€ Unit Price incl. VAT

FLAT WASHER 4 MM

234040600

0,66€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

HINGE ASS Y

204070127

58,00€ Unit Price incl. VAT

HINGE ROD

204070204

13,16€ Unit Price incl. VAT

COTTER PIN M2.5 X 12

204070205

0,71€ Unit Price incl. VAT

HEX. SCREW M6 X 25

207162560

1,62€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

GAS SHOCK

204071925

149,00€ Unit Price incl. VAT

SUPP.AMORT.*BRACKET-SHOCK/FLAT

204071673

16,28€ Unit Price incl. VAT

HEX. SCREW M5 X 25

207152560

2,10€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

INLET VENT, PORT SIDE

204072315

44,99€ Unit Price incl. VAT

INLET VENT, STARBOARD

204072316

44,99€ Unit Price incl. VAT

RIVET_POP 1/8 X ,750

293150036

0,40€ Unit Price incl. VAT

VENT COVER ASS Y, PORT SIDE

204072317

189,00€ Unit Price incl. VAT

VENT COVER ASS Y, STARBOARD

204072318

279,00€ Unit Price incl. VAT

FLAT WASHER

211200019

1,40€ Unit Price incl. VAT

PHILLIPS SCREW 1"

204100154

0,98€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

LOCK WASHER 1/4"

211200025

1,50€ Unit Price incl. VAT

HEX. NUT 1/4"

211100026

1,22€ Unit Price incl. VAT

SEAT STORAGE, STARBOARD

204072627

786,88€ Unit Price incl. VAT

Seat Storage, Port Side

204072628

Not Available

SLOTTED BOLT 1/4#-20 X 1#

204100095

2,34€ Unit Price incl. VAT

VENT COVER ASS Y, PORT SIDE

204072102

204073360

Not Available

VENT COVER ASS Y, STARBOARD

204072104

204073362

Not Available

PHILLIPS TAPPING SCREW #8 X 1"

204100049

1,20€ Unit Price incl. VAT

FINITION WASHER

204100057

1,20€ Unit Price incl. VAT

Anneau De Néoprene

293200093

Not Available

FLAT WASHER 10 MM, STAINLESS

234002600

2,44€ Unit Price incl. VAT

HEX. NUT 3/8-16

211100063

1,73€ Unit Price incl. VAT

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

HELICOIDAL LOCK WASHER M10

234101601

1,32€ Unit Price incl. VAT

GRAB HANDLE

204071122

109,00€ Unit Price incl. VAT

STUD 3/8#-16 X 2#

204100050

18,98€ Unit Price incl. VAT

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

PRIMER LOCTITE SF 7649

293800041

53,34€ Unit Price incl. VAT

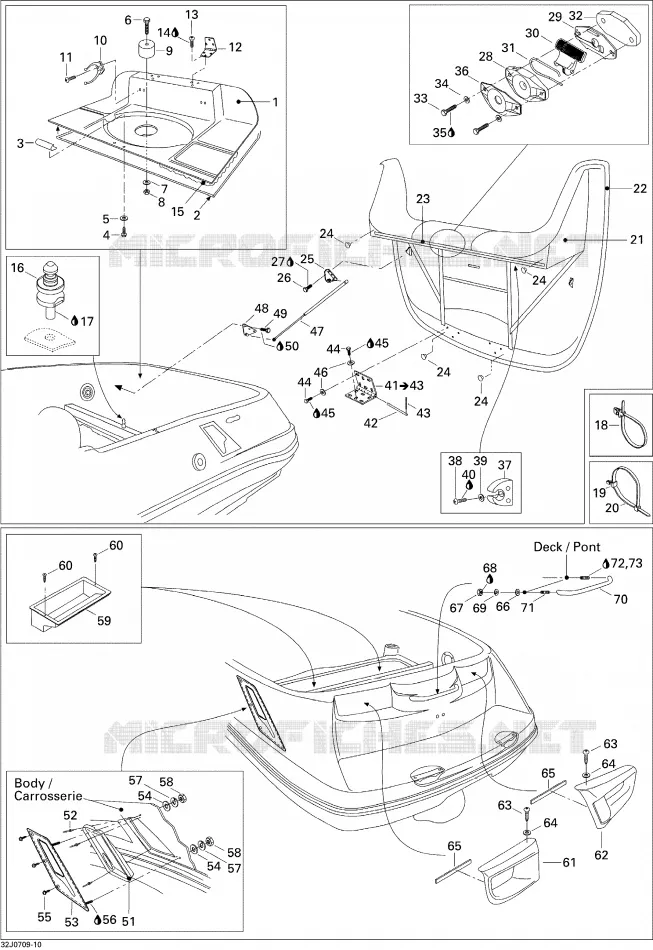

Find the detailed Engine Compartment And Accessories SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
