1
Model
GTX
2
Year
2010
3
Trim
GTX iS 215 (iS:SUSPENSON INTELLIGENTE)
4
Parts Catalog
Reverse
5
Parts Diagram
Parts Catalog
Pump
by
Steering 1
Reverse
33
44
50
45
45
45
41
41
49
49
37
37
13
13
13
13
13
27
27
27
8
43
43
24
35
35
47
47
18
14
53
53
25
40
40
5
29
31
31
3
3
3
20
20
16
30
30
26
26
26
26
26
23
23
23
23
23
52
52
52
52
52
52
1
7
28
28
28
17
38
38
21
21
51
51
51
51
51
51
34
11
19
19
4
12
12
12
12
32
32
6
36
36
9
48
48
22
22
22
22
22
2
2
2
2
39
39
10
42
42
15
46
46
46
1
IBR ACTUATOR
278002418
957,36€ Unit Price incl. VAT
1a
COOLING COVER
296000317
16,20€ Unit Price incl. VAT
1b
O-RING
278002474
5,88€ Unit Price incl. VAT
1c
TORX SCREW STAINLESS M5 X 16.8
278002475
6,84€ Unit Price incl. VAT
2
HEX. SCREW M8 X 60, SCOTCH GRIP
250000187
5,18€ Unit Price incl. VAT
3
FLAT WASHER 8 MM, STAINLESS
234081600
0,66€ Unit Price incl. VAT
4
LH SUPPORT PLATE ASS Y
268000067
27,38€ Unit Price incl. VAT
5
LH FORMED SEAL
268000046
18,53€ Unit Price incl. VAT
6
LH FIXING PLATE ASS Y
268000069
30,50€ Unit Price incl. VAT
7
LH FORMED SEAL
268000055
11,44€ Unit Price incl. VAT
8
RH SUPPORT PLATE ASS Y
268000068
26,96€ Unit Price incl. VAT
9
RH FORMED SEAL
268000047
18,53€ Unit Price incl. VAT
10
RH FIXING PLATE ASS Y
268000070
18,38€ Unit Price incl. VAT
11
RH FORMED SEAL
268000056
11,44€ Unit Price incl. VAT
12
HEX. SCREW M8 X 30, SCOTCH GRIP
207383060
2,22€ Unit Price incl. VAT
13
FLAT WASHER
293050001
1,85€ Unit Price incl. VAT
14
WASHER
268000065
8,40€ Unit Price incl. VAT
15
BLACK U ARM
271001615
50,99€ Unit Price incl. VAT
16
TIGHTE BUSHING
268000057
8,52€ Unit Price incl. VAT
17
HEX. SCREW M8 X 20, SCOTCH GRIP
207382060
2,26€ Unit Price incl. VAT
18
FLAT WASHER 8 MM, STAINLESS
234082600
2,84€ Unit Price incl. VAT
19
SPACER
268000062
15,89€ Unit Price incl. VAT
20
LINKAGE ARM
268000042
268000145
21,60€ Unit Price incl. VAT
21
HEX. SCREW M8 X 45
207084560
3,98€ Unit Price incl. VAT
22
FLAT WASHER 8 MM, STAINLESS
234081600
0,66€ Unit Price incl. VAT
23
VENTURI BUSHING
271000321
9,58€ Unit Price incl. VAT
24
HEX. ELASTIC NUT M8, BRASS
232581200
1,85€ Unit Price incl. VAT
25
BLACK TRIMMING RING
268000033
268000155
103,46€ Unit Price incl. VAT
26
VENTURI BUSHING
293900007
6,31€ Unit Price incl. VAT
27
SPACER
268000063
20,10€ Unit Price incl. VAT
28
FLAT WASHER 8 MM, STAINLESS
234082600
2,84€ Unit Price incl. VAT
29
VENTURI BUSHING
293900007
6,31€ Unit Price incl. VAT
30
HEX. SCREW M8 X 70
207087060
3,24€ Unit Price incl. VAT
31
FRICTION SLEEVE
268000045
10,94€ Unit Price incl. VAT
32
SOCKET HEAD SCREW M6 X 16, SCOTCH GRIP
205561660
1,96€ Unit Price incl. VAT
33
DIRECTION NOZZLE, BLACK
267000397
267000727
87,00€ Unit Price incl. VAT
34
DIRECTION NOZZLE LEVER, BLACK
268000064
268000148
68,00€ Unit Price incl. VAT
35
DIRECTION LEVER ARM
268000058
15,24€ Unit Price incl. VAT
36
SPACER
268000060
14,32€ Unit Price incl. VAT
37
FLAT WASHER M6, STAINLESS
234062600
0,92€ Unit Price incl. VAT
38
HEX. SCREW M6 X 20, SCOTCH GRIP
207362060
1,62€ Unit Price incl. VAT
39
SOCKET HEAD SCREW M8 X 10, SCOTCH GRIP
211000127
4,66€ Unit Price incl. VAT
40
SPACER
268000060
14,32€ Unit Price incl. VAT
41
BUSHING
268000059
16,54€ Unit Price incl. VAT
42
FLAT WASHER M6, STAINLESS
234062600
0,92€ Unit Price incl. VAT
43
HEX. SCREW M6 X 20, SCOTCH GRIP
207362060
1,62€ Unit Price incl. VAT
44
REVERSE GATE ASS Y
268000048
268000182 , 268000183
Not Available
45
FLAT WASHER M6, STAINLESS
234061600
0,36€ Unit Price incl. VAT
46
SOCKET HEAD SCREW M6 X 16, SCOTCH GRIP
205561660
1,96€ Unit Price incl. VAT
47
SPACER
271001039
18,26€ Unit Price incl. VAT
48
FLAT WASHER 8 MM, STAINLESS
234082600
2,84€ Unit Price incl. VAT
49
HEX. SCREW M8 X 30, SCOTCH GRIP
207383060
2,22€ Unit Price incl. VAT
50
GUARD
268000066
268000162
33,46€ Unit Price incl. VAT
51
HEX. FLANGED SCREW M6.81 X 25, PLASTITE
243162560
2,50€ Unit Price incl. VAT
52
SEALANT LOCTITE SI 5011CL
296000309
44,21€ Unit Price incl. VAT
53
ADHESIVE LOCTITE 243
293800060
25,72€ Unit Price incl. VAT

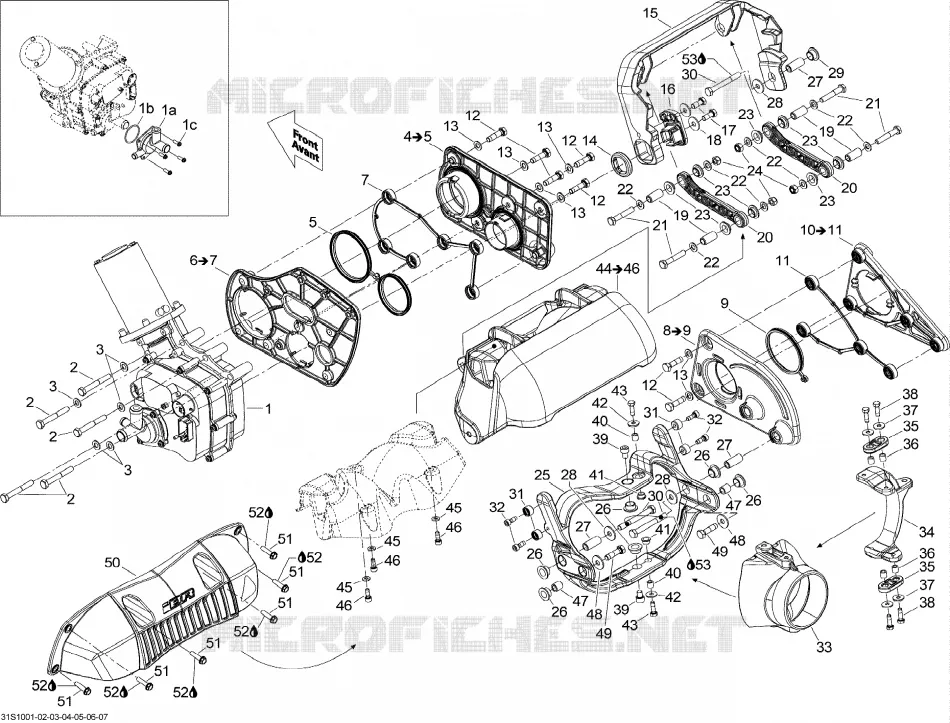

Find the detailed Reverse SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
