Seat, Rear View, Copper for Sea-Doo 01- Cooling System from 2005

Seat, Rear View, Copper

1

REAR BACKREST, PORT SIDE

204613139

650,24€ Unit Price incl. VAT

2

REAR BACKREST, CENTER

204613141

392,98€ Unit Price incl. VAT

3

REAR BACKREST, STARBOARD

204613143

204613502

663,28€ Unit Price incl. VAT

4

SEAT SUPPORT

204610288

204613998

17,09€ Unit Price incl. VAT

5

RIVET_POP 3/16 X ,675

293150043

2,32€ Unit Price incl. VAT

6

REAR SEAT ASS Y, PORT SIDE

204613145

513,35€ Unit Price incl. VAT

7

SNAP BASE

204000083

5,63€ Unit Price incl. VAT

8

SNAP COVER

204611609

6,72€ Unit Price incl. VAT

9

SCREW 8 X 3/4#

204100054

1,20€ Unit Price incl. VAT

10

FLAT WASHER

211200019

1,40€ Unit Price incl. VAT

11

REAR SEAT ASS Y, CENTER

204613147

202000159 , 204613208

Not Available

12

SNAP BASE

204000083

5,63€ Unit Price incl. VAT

13

SNAP COVER

204000085

7,68€ Unit Price incl. VAT

14

REAR SEAT ASS Y, STARBOARD

204613149

513,35€ Unit Price incl. VAT

15

SNAP BASE

204000083

5,63€ Unit Price incl. VAT

16

SNAP COVER

204611609

6,72€ Unit Price incl. VAT

17

SCREW 8 X 3/4#

204100054

1,20€ Unit Price incl. VAT

18

FLAT WASHER

211200019

1,40€ Unit Price incl. VAT

19

SEAT LATCH

204611940

18,98€ Unit Price incl. VAT

20

SCREW 1/4#-20 X 2#

204100039

1,37€ Unit Price incl. VAT

21

LATCH

204611805

10,24€ Unit Price incl. VAT

22

PHILLIPS SCREW M4.2 X 25

209642560

1,40€ Unit Price incl. VAT

23

SCREW-STUD TAPP. 3/8" SS

202000159

1,57€ Unit Price incl. VAT

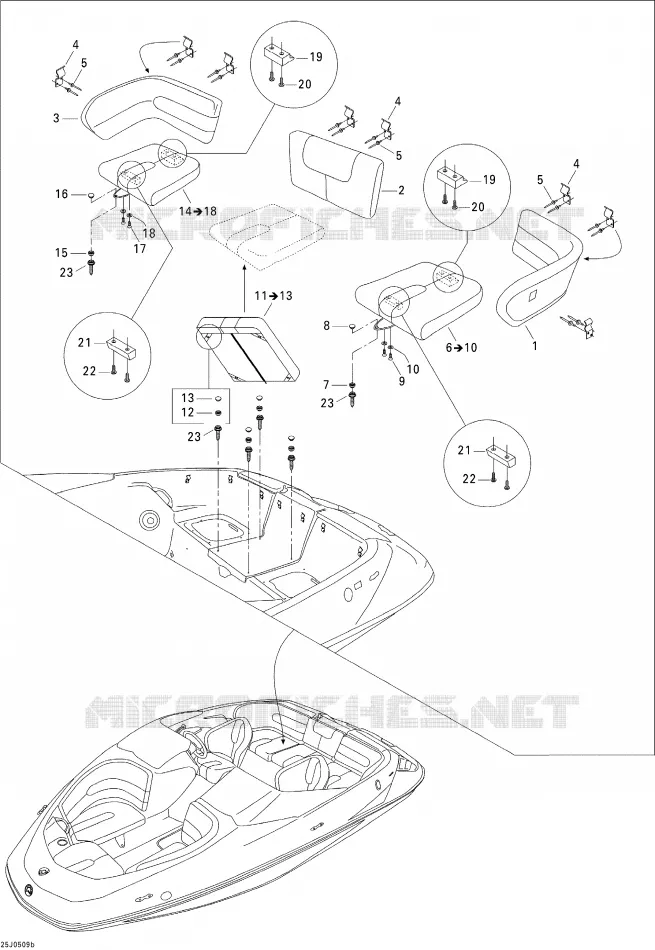

Find the detailed Seat, Rear View, Copper SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
