1
Model
GTI
2
Year
2014
3
Trim
GTI SE 130
4
Parts Catalog
Fuel System _17S1413
5
Parts Diagram
Parts Catalog
Oil Separator
by
PTO Cover And Magneto
Fuel System _17S1413
4
4
4
43
43
22
22
28
5
9
9
9
18
1
16
16
31
31
31
31
8
20
13
13
13
27
27
27
62
62
15
21
61
17
17
17
17
17
17
14
7
7
7
24
23
23
23
32
32
32
29
34
11
11
3
3
3
2
2
2
10
51
51
51
48
48
6
6
65
65
30
30
30
30
33
30
30
37
37
37
19
19
25
25
12
12
26
1
FILLER NECK NUT, FUEL
211100012
16,56€ Unit Price incl. VAT
2
FLAT WASHER M3, STAINLESS
234032600
0,66€ Unit Price incl. VAT
3
FUEL FILTER
270600108
270600113
38,54€ Unit Price incl. VAT
4
Non disponible pour ce véhicule
N/A
Not Available
5
HEX. FLANGED PT SCREW K40 X 10
241140060
1,66€ Unit Price incl. VAT
6
Non disponible pour ce véhicule
N/A
Not Available
7
SPECIAL NUT M130
250100062
25,34€ Unit Price incl. VAT
8
FUEL CAP CHAIN
275500507
20,06€ Unit Price incl. VAT
9
QUICK ATTACH 90
275500700
19,12€ Unit Price incl. VAT
10
Non disponible pour ce véhicule
N/A
Not Available
11
FUEL TANK ASS Y
275500754
275500962
397,01€ Unit Price incl. VAT
12
Non disponible pour ce véhicule
N/A
Not Available
13
SENSOR LEVER
275500780
250,01€ Unit Price incl. VAT
14
FILLER NECK HOSE
275500788
275500918
99,00€ Unit Price incl. VAT
15
Non disponible pour ce véhicule
N/A
Not Available
16
Non disponible pour ce véhicule
N/A
Not Available
17
OETIKER CLAMP
293650053
3,46€ Unit Price incl. VAT
18
Boyau
296000331
Not Available
19
Non disponible pour ce véhicule
N/A
Not Available
20
FUEL CAP ASS Y
275500833
275501094
68,00€ Unit Price incl. VAT
21
FILLER NECK
275500845
42,14€ Unit Price incl. VAT
22
Non disponible pour ce véhicule
N/A
Not Available
23
FUEL PUMP ASS Y
275500850
275500996
487,39€ Unit Price incl. VAT
24
SNAP CAP, BLACK
293000034
10,72€ Unit Price incl. VAT
25
Non disponible pour ce véhicule
N/A
Not Available
26
GASKET
293250029
17,30€ Unit Price incl. VAT
27
GASKET
293250173
293250514
22,30€ Unit Price incl. VAT
28
GASKET
293250285
293250417
4,50€ Unit Price incl. VAT
29
Non disponible pour ce véhicule
N/A
Not Available
30
NORMA CLAMP
293650081
14,02€ Unit Price incl. VAT
31
FUEL TANK STRAP
293850087
22,10€ Unit Price incl. VAT
32
ELBOW FITTING 90
293710105
16,56€ Unit Price incl. VAT
33
Non disponible pour ce véhicule
N/A
Not Available
34
Non disponible pour ce véhicule
N/A
Not Available
37
STRAP-FUEL TANK
293850093
24,32€ Unit Price incl. VAT
43
Non disponible pour ce véhicule
N/A
Not Available
48
Non disponible pour ce véhicule
N/A
Not Available
51
FUEL TANK STRAP
293850101
19,48€ Unit Price incl. VAT
61
RIVET_POP 1/8 X ,425
390407900
1,68€ Unit Price incl. VAT
62
Non disponible pour ce véhicule
N/A
Not Available
65
Non disponible pour ce véhicule
N/A
Not Available

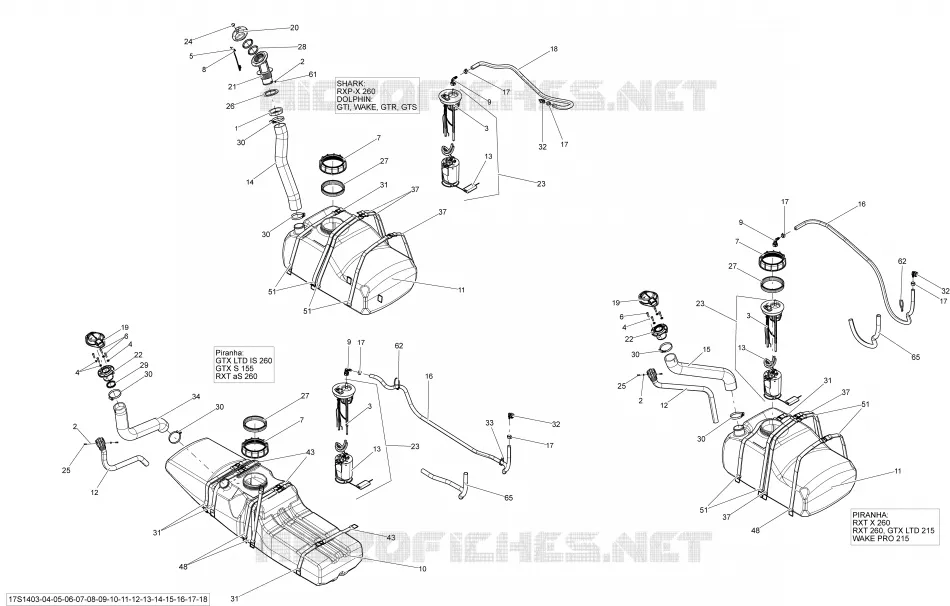

Find the detailed Fuel System _17S1413 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
