Parts Catalog
Engine Harness
5
Parts Diagram
Parts Catalog
Electrical Harness 2
by
Engine Harness
17
17
17
16
16
16
16
16
16
12
3
15
2
2
2
4
4
4
6
13
13
13
9
10
5
14
11
8
7
1
1
WIRING HARNESS ASS#Y
420664054
420664056
699,00€ Unit Price incl. VAT
2
CONNECTOR_BOSCH MALE 2 CAVITIES
278001003
51,22€ Unit Price incl. VAT
3
CONNECTOR HOUSING
290664450
420664450
32,60€ Unit Price incl. VAT
4
MALE HOUSING, 2 CIRCUITS
278001005
22,34€ Unit Price incl. VAT
5
HOUSING CONNECTOR, 3 CIRCUITS
278001829
25,14€ Unit Price incl. VAT
6
HOUSING CONNECTOR, 3 CIRCUITS
278001830
41,92€ Unit Price incl. VAT
7
MALE HOUSING, 1 CIRCUIT
278001012
19,79€ Unit Price incl. VAT
8
CONNECTOR
278001834
415128500
9,04€ Unit Price incl. VAT
9
CONNECTOR
278001834
415128500
9,04€ Unit Price incl. VAT
10
FEMALE HOUSING, 4 CIRCUITS
278000635
18,54€ Unit Price incl. VAT
11
CONNECTOR, MAGNETO
278001831
11,30€ Unit Price incl. VAT
12
MALE HOUSING, 2 CIRCUITS
278001005
22,34€ Unit Price incl. VAT
13
CONNECTOR, STICK COIL
278001832
420964100
12,84€ Unit Price incl. VAT
14
CONNECTOR, IDLE BYPASS VALVE
278001833
12,68€ Unit Price incl. VAT
15
MALE HOUSING, 3 CIRCUITS
278000997
22,34€ Unit Price incl. VAT
16
TIE RAP
420866714
2,24€ Unit Price incl. VAT
17
TIE WRAP 94X2.5MM
420866720
293750001
1,18€ Unit Price incl. VAT

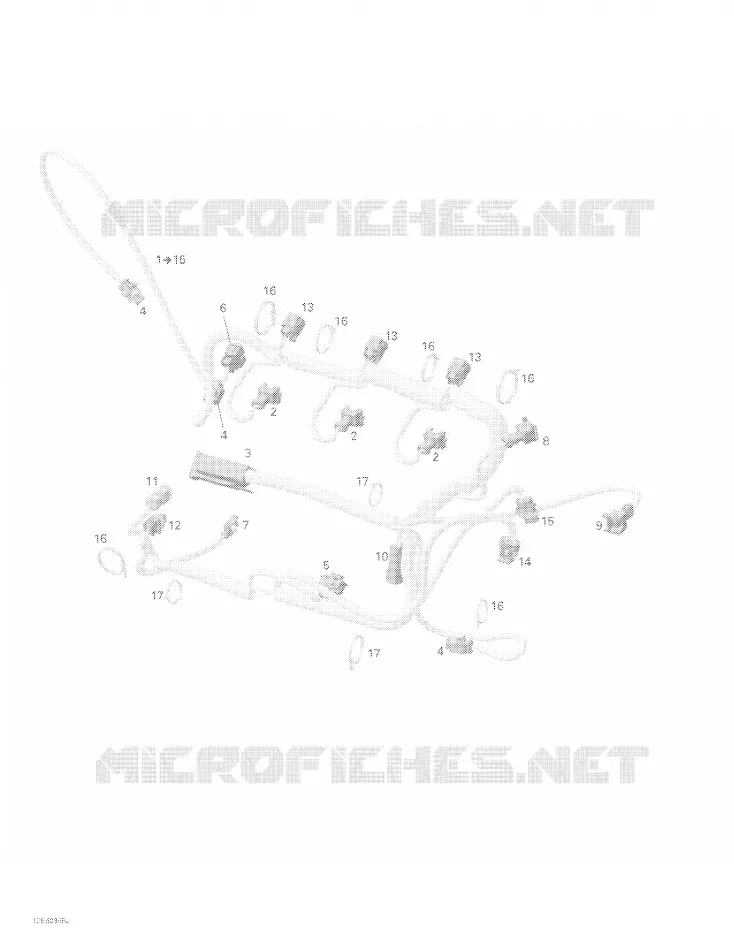

Find the detailed Engine Harness SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.
