Propulsion System for Sea-Doo GTS 5883 from 1999

HELICE STLSS.AS*IMPELLER-ASSY.

271000826

335,38€ Unit Price incl. VAT

IMPELLER BOOT

271000516

10,62€ Unit Price incl. VAT

IMPELLER SHAFT

271000291

128,12€ Unit Price incl. VAT

BEARING THRUST

293350019

26,99€ Unit Price incl. VAT

FLAT WASHER 10 MM, STAINLESS

234001600

1,30€ Unit Price incl. VAT

HEX. NUT M10

232001600

2,48€ Unit Price incl. VAT

IMPELLER HOUSING ASS Y

295500429

458,05€ Unit Price incl. VAT

WEAR RING

271000290

67,00€ Unit Price incl. VAT

NEEDLE BEARING

293350017

32,46€ Unit Price incl. VAT

DOUBLE LIP SEAL

293200025

267000094

25,34€ Unit Price incl. VAT

O-RING

293300011

10,02€ Unit Price incl. VAT

PIPE PLUG SOCKET HEAD 1/8-27 NPT

211500001

10,99€ Unit Price incl. VAT

IMPELLER COVER

271000670

18,26€ Unit Price incl. VAT

HEX. SCREW M5 X 20

207152060

1,62€ Unit Price incl. VAT

FITTING-PUMP

293700019

4,04€ Unit Price incl. VAT

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

VENTURI ASS Y

271000510

178,01€ Unit Price incl. VAT

SABOT NOIR *SHOE-BLACK

271000186190

201,00€ Unit Price incl. VAT

FLAT WASHER 8 MM, STAINLESS

234082600

2,84€ Unit Price incl. VAT

HEX. SCREW M8 X 60

207086060

2,24€ Unit Price incl. VAT

IMPELLER RING

271000517

10,62€ Unit Price incl. VAT

STEERING NOZZLE SLEEVE

271000122

271001816

16,44€ Unit Price incl. VAT

STUD-M10

211300015

12,72€ Unit Price incl. VAT

STEERING NOZZLE ASS Y

271000418

138,00€ Unit Price incl. VAT

VENTURI BUSHING

293900001

8,72€ Unit Price incl. VAT

Not Available As Spare Parts

XXX

Not Available

BAILER FITTING

293700017

5,98€ Unit Price incl. VAT

THRUST WASHER

293350020

12,90€ Unit Price incl. VAT

WASHER-THRUST

211200002

5,28€ Unit Price incl. VAT

LUBRIFIANT - DEOXIT, 250 ML

293800015

293800060

25,72€ Unit Price incl. VAT

SEALANT RIGHT STUFF 26015, 7 OZ

293800053

219701421

60,68€ Unit Price incl. VAT

INLET GRATE

271000466

95,15€ Unit Price incl. VAT

ADHESIVE LOCTITE 518

293800038

59,28€ Unit Price incl. VAT

SQUARE NUT M8

211100033

20,26€ Unit Price incl. VAT

O-RING

293300013

9,79€ Unit Price incl. VAT

HELICOIDAL LOCK WASHER M10

234101601

1,32€ Unit Price incl. VAT

SCREW-CTSK.OV.HD.PH.DIN.966A-A2

216362560

208562560

2,76€ Unit Price incl. VAT

HEX. SCREW M6 X 16, SCOTCH GRIP

207361660

1,30€ Unit Price incl. VAT

HEX. FORMING SCREW M6 X 20

207162060

1,48€ Unit Price incl. VAT

WASHER-LOCK HELICAL DIN.127B-A2

234181601

0,66€ Unit Price incl. VAT

SEALANT LOCTITE 567

293800013

92,51€ Unit Price incl. VAT

PLASTIC BUSHING

293900010

11,09€ Unit Price incl. VAT

PRIMER LOCTITE SF 7649

293800041

53,34€ Unit Price incl. VAT

SEALANT LOCTITE SI 5011CL

296000309

44,21€ Unit Price incl. VAT

HEX. SCREW M8 X 30, SCOTCH GRIP

207383060

2,22€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

PUSHER

271000978

13,68€ Unit Price incl. VAT

SPRING

271000973

8,30€ Unit Price incl. VAT

OBTURATEUR SABO*CAP-SHOE RIDE

291000446

22,36€ Unit Price incl. VAT

SORTIE D EAU *OUTLET-WATER

271000972

5,36€ Unit Price incl. VAT

SHIM, 0.3 MM

272000053

12,43€ Unit Price incl. VAT

FLAT WASHER M5, STAINLESS

234051600

0,92€ Unit Price incl. VAT

PHILLIPS SCREW M5 X 10

208551060

1,04€ Unit Price incl. VAT

Huile synthétique

293600011

Not Available

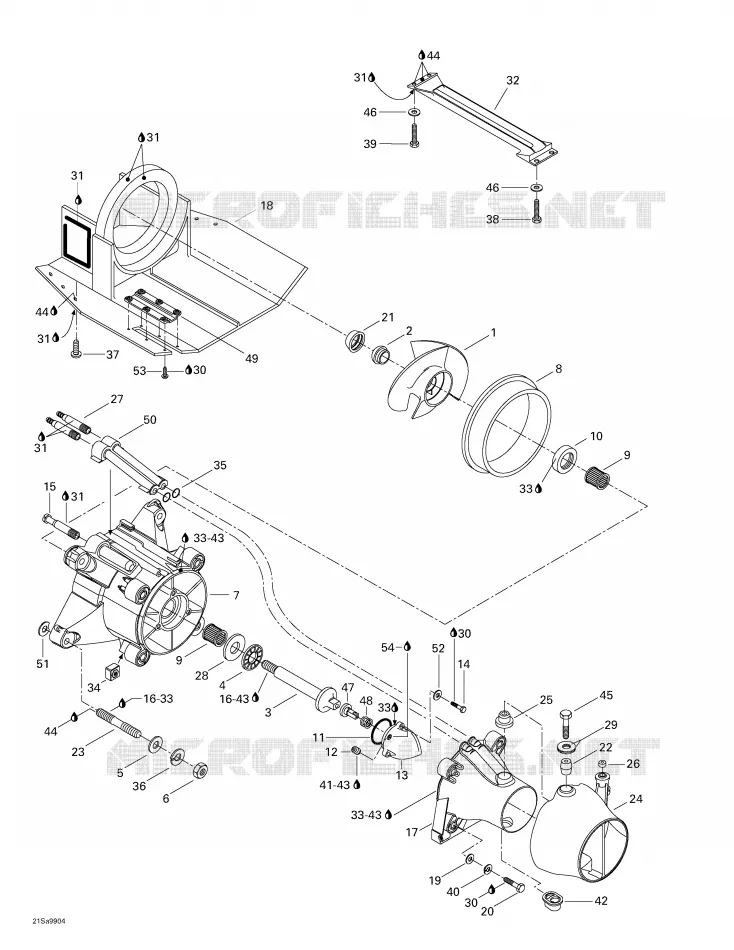

Find the detailed Propulsion System SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
