Electrical Harness 2 for Sea-Doo GTX LIMITED iS 255 (iS:SUSPENSON INTELLIGENTE) from 2009

Electrical Harness 1

Engine Harness

STEERING HARNESS

278002298

503,59€ Unit Price incl. VAT

129

FEMALE LOCK, 6 CIRCUITS

278000735

3,66€ Unit Price incl. VAT

131

MALE LOCK, 12 CIRCUITS

409015600

2,96€ Unit Price incl. VAT

136

SECONDARY LOCK, 8 CIRCUITS

278001744

5,16€ Unit Price incl. VAT

138

SEALING CAP

293000052

3,66€ Unit Price incl. VAT

196

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

541

Gaine 6 mm

515175442

Not Available

542

Gaine 9 mm

409901700

Not Available

543

Gaine 12 mm

409902000

Not Available

546

Tubing 19 mm

409901600

Not Available

757

FEMALE TERMINAL

278001665

5,36€ Unit Price incl. VAT

775

MOUNT DART

293730018

293730040

1,24€ Unit Price incl. VAT

827

FEMALE TERMINAL

710001119

6,20€ Unit Price incl. VAT

853

WIRE SEAL

710001163

8,78€ Unit Price incl. VAT

854

FEMALE TERMINAL

710001164

10,18€ Unit Price incl. VAT

888

SEAL

710001230

2,41€ Unit Price incl. VAT

891

TERMINAL

710001228

3,90€ Unit Price incl. VAT

894

CAP

710001225

10,42€ Unit Price incl. VAT

928

MALE TERMINAL

710001348

14,72€ Unit Price incl. VAT

938

FEMALE TERMINAL HOUSING, 6 CIRCUITS

278002299

10,72€ Unit Price incl. VAT

977

CONNECTOR_MALE 6 CAVITIES

710001539

22,34€ Unit Price incl. VAT

1014

FEMALE TERMINAL HOUSING, 8 CIRCUITS

278002376

57,48€ Unit Price incl. VAT

1018

MALE TERMINAL HOUSING, 12 CIRCUITS

278002380

41,47€ Unit Price incl. VAT

1020

MALE TERMINAL HOUSING, 20 CIRCUITS

278002385

19,14€ Unit Price incl. VAT

1023

FEMALE TERMINAL HOUSING, 3 CIRCUITS

278002386

9,88€ Unit Price incl. VAT

1024

CONNECTOR_FEMALE 3 CAVITIES

278002387

10,38€ Unit Price incl. VAT

2015

START/STOP SWITCH

278001733

56,16€ Unit Price incl. VAT

2042

SAFETY SWITCH

278002325

278002773

126,68€ Unit Price incl. VAT

2045

CONTROL SWITCH

278002349

295501137

68,00€ Unit Price incl. VAT

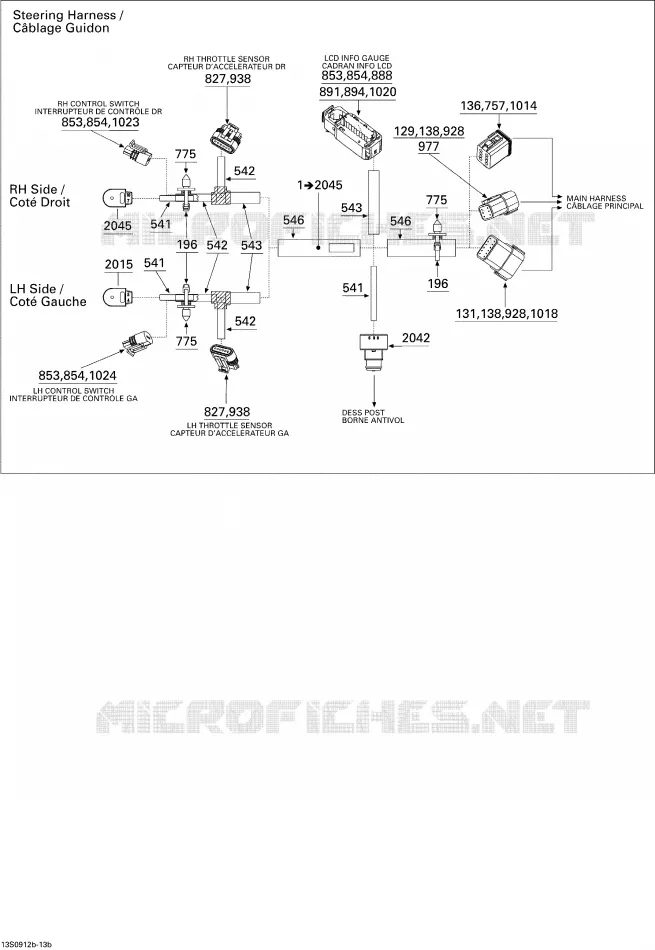

Find the detailed Electrical Harness 2 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
