Body And Accessories 2 for Sea-Doo 00- Model Numbers from 2011

Body And Accessories 2

1

DRAIN FITTING

204073301

24,98€ Unit Price incl. VAT

2

GASKET

293250255

7,56€ Unit Price incl. VAT

3

HOSE BILGEFLEX 1-1/2#, METER

204070560

5,78€ Unit Price incl. VAT

4

NORMA CLAMP

293650074

19,12€ Unit Price incl. VAT

5

SOUNDWALL SEAL, PORT SIDE

204072504

34,00€ Unit Price incl. VAT

6

BLACK DART

293730014

1,16€ Unit Price incl. VAT

7

FRONT CARPET

291003315

11,28€ Unit Price incl. VAT

8

CARPET-AFT/PORT

291003316

15,10€ Unit Price incl. VAT

9

CARPET-AFT/STBD

291003317

16,01€ Unit Price incl. VAT

10

STORAGE NET, REAR

204073217

57,58€ Unit Price incl. VAT

11

PHILLIPS TAPPING SCREW M4.2 X 32

209943260

1,62€ Unit Price incl. VAT

12

Bouton de Fixation

204073221

Not Available

13

STORAGE NET

204073218

291003524

109,38€ Unit Price incl. VAT

14

COOLER, 23 LITERS (25 QUARTS)

204072662

119,98€ Unit Price incl. VAT

15

Support d'Amortisseur

204073074

Not Available

16

POP RIVET 3/16

204130050

2,10€ Unit Price incl. VAT

17

STAINLESS LATCH

204072838

159,00€ Unit Price incl. VAT

18

FLAT WASHER M5, STAINLESS

234051600

0,92€ Unit Price incl. VAT

19

HINGE

204072601

38,99€ Unit Price incl. VAT

20

RIVET_AVEX 4,8 X 18.7

293150037

0,68€ Unit Price incl. VAT

21

ANCHOR LID

291003160

491,15€ Unit Price incl. VAT

22

Anneau De Néoprene

293200093

Not Available

23

KEEPER

204070060

10,24€ Unit Price incl. VAT

24

TAPPING PHILLIPS SCREW M4.2 X 13

209641360

1,78€ Unit Price incl. VAT

25

GAS SHOCK

204073017

66,98€ Unit Price incl. VAT

26

TAPPING PHILLIPS SCREW M4.2 X 13

209641360

1,78€ Unit Price incl. VAT

27

BOW RAIL ASS Y

204073416

359,00€ Unit Price incl. VAT

28

STUD 3/8#-16 X 2#

204100050

18,98€ Unit Price incl. VAT

29

FLAT WASHER 10 MM, STAINLESS

234002600

2,44€ Unit Price incl. VAT

30

HEX. ELASTIC NUT 3/8"

204100032

0,90€ Unit Price incl. VAT

31

Non disponible pour ce véhicule

N/A

Not Available

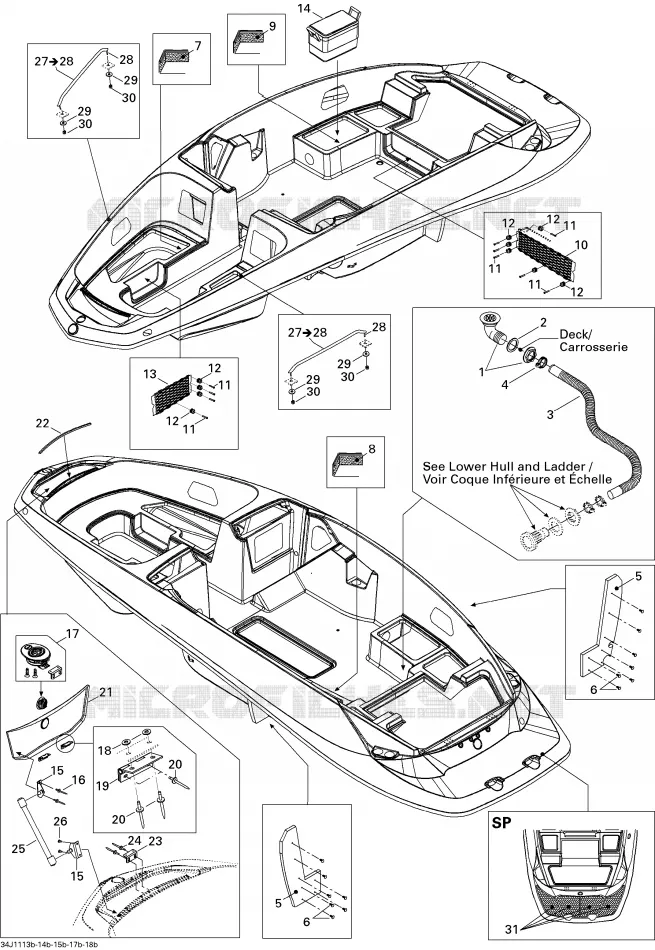

Find the detailed Body And Accessories 2 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
