Electrical Harness for Sea-Doo 00- Model Numbers Edition 1 from 2006

Electrical Accessories 4, SPEED, TOWER

Electrical System

001

ENGINE HARNESS

204470811

475,01€ Unit Price incl. VAT

030

MALE CONNECTOR, 4 CIRCUITS

278001308

13,13€ Unit Price incl. VAT

040

FEMALE TERMINAL

278000223

3,66€ Unit Price incl. VAT

050

WIRE SEAL

278000218

5,00€ Unit Price incl. VAT

060

CONNECTOR_FEMALE 2 CAVITIES

278000220

17,26€ Unit Price incl. VAT

100

MALE TERMINAL

515175823

5,36€ Unit Price incl. VAT

110

CONNECTOR_MALE 6 CAVITIES

278000736

710001540

25,60€ Unit Price incl. VAT

120

MALE TERMINAL

278000631

5,00€ Unit Price incl. VAT

140

FEMALE TERMINAL

278001114

3,66€ Unit Price incl. VAT

200

FEMALE TERMINAL

278000632

2,42€ Unit Price incl. VAT

220

TERMINAL_FEMALE

278001392

5,46€ Unit Price incl. VAT

230

MALE HOUSING, 41 CIRCUITS

278001751

28,64€ Unit Price incl. VAT

240

TERMINAL_FEMALE

278001392

5,46€ Unit Price incl. VAT

270

SEALING CAP

293000052

3,66€ Unit Price incl. VAT

280

MALE LOCK, 3 CIRCUITS

409207600

3,66€ Unit Price incl. VAT

290

MALE LOCK, 6 CIRCUITS

278000737

2,71€ Unit Price incl. VAT

300

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

310

CONNECTOR_MALE 3 CAVITIES

409207000

278002378

15,64€ Unit Price incl. VAT

320

MALE CONNECTOR, 12 CIRCUITS

409015800

278002380

41,47€ Unit Price incl. VAT

330

MALE LOCK, 12 CIRCUITS

409015600

2,96€ Unit Price incl. VAT

360

FEMALE TERMINAL HOUSING, 2 CIRCUITS

278001673

27,94€ Unit Price incl. VAT

370

WEDGE-2 WAYS M

278001671

4,26€ Unit Price incl. VAT

420

MALE CONNECTOR, 4 CIRCUITS

278000739

21,42€ Unit Price incl. VAT

430

MALE LOCK, 4 CIRCUITS

278000738

3,52€ Unit Price incl. VAT

440

FEMALE TERMINAL

515175567

8,78€ Unit Price incl. VAT

450

FEMALE TERMINAL

278001750

4,00€ Unit Price incl. VAT

470

CONNECTOR_FEMALE 3 CAVITIES

409207400

278002375

36,44€ Unit Price incl. VAT

480

FEMALE LOCK

409207200

5,00€ Unit Price incl. VAT

510

Not Available As Spare Parts

XXX

Not Available

520

Not Available As Spare Parts

XXX

Not Available

540

Not Available As Spare Parts

XXX

Not Available

560

Not Available As Spare Parts

XXX

Not Available

570

Not Available As Spare Parts

XXX

Not Available

600

Not Available As Spare Parts

XXX

Not Available

610

Not Available As Spare Parts

XXX

Not Available

620

Not Available As Spare Parts

XXX

Not Available

630

Not Available As Spare Parts

XXX

Not Available

640

Not Available As Spare Parts

XXX

Not Available

660

FUSE, 20 AMPERES

278001143

409003900

3,90€ Unit Price incl. VAT

670

CONNECTOR_FEMALE 2 CAVITIES

278001113

19,79€ Unit Price incl. VAT

680

FUSE HOLDER

278001325

10,38€ Unit Price incl. VAT

690

FEMALE TERMINAL

710000357

8,78€ Unit Price incl. VAT

700

FUSE, 15 AMPERES

278000343

3,90€ Unit Price incl. VAT

800

Not Available As Spare Parts

XXX

Not Available

810

FUSE HOLDER CAP

278001326

8,78€ Unit Price incl. VAT

820

Not Available As Spare Parts

XXX

Not Available

830

SEAL WIRE

710000394

15,96€ Unit Price incl. VAT

840

Not Available As Spare Parts

XXX

Not Available

850

FEMALE HOUSING

710000395

13,15€ Unit Price incl. VAT

860

FEMALE TERMINAL

515175806

1,16€ Unit Price incl. VAT

870

Not Available As Spare Parts

XXX

Not Available

880

Not Available As Spare Parts

XXX

Not Available

890

Not Available As Spare Parts

XXX

Not Available

900

WIRE SEAL

278000218

5,00€ Unit Price incl. VAT

910

Not Available As Spare Parts

XXX

Not Available

920

WIRE SEAL

278001505

6,62€ Unit Price incl. VAT

930

CUSHION

278000805

3,90€ Unit Price incl. VAT

940

FEMALE TERMINAL

278001661

9,89€ Unit Price incl. VAT

950

Not Available As Spare Parts

XXX

Not Available

960

PLUG

515175812

2,44€ Unit Price incl. VAT

970

Not Available As Spare Parts

XXX

Not Available

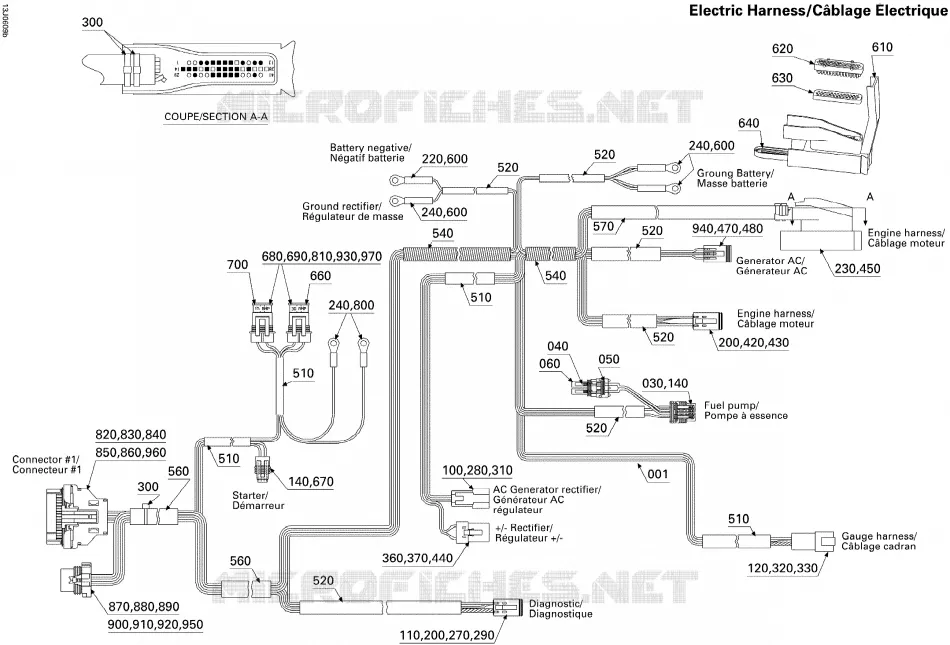

Find the detailed Electrical Harness SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
