CYLINDER HEAD
420623877
420213265
979,40€ Unit Price incl. VAT
2
HOSE NIPPLE
420441420
16,56€ Unit Price incl. VAT
3
CYLINDER HEAD GASKET
420431811
420431813
53,12€ Unit Price incl. VAT
4
INTAKE VALVE, 29 MM
420855130
420855131
25,14€ Unit Price incl. VAT
5
EXHAUST VALVE, 25 MM
420855145
420855146
43,02€ Unit Price incl. VAT
6
VALVE STEM SEAL
420431671
6,32€ Unit Price incl. VAT
7
VALVE SPRING
420939540
8,86€ Unit Price incl. VAT
8
VALVE SPRING RETAINER
420855150
5,18€ Unit Price incl. VAT
9
COTTER VALVE
420254630
1,20€ Unit Price incl. VAT
10
VALVE LIFTER BUCKET BLOC
420855164
420855165
54,98€ Unit Price incl. VAT
11
FLANGED TORX SCREW M6 X 45
420440324
1,16€ Unit Price incl. VAT
12
FLANGED TORX SCREW M9 X 113
420940945
16,30€ Unit Price incl. VAT
13
EXHAUST MANIFOLD
420673510
420673511
488,00€ Unit Price incl. VAT
14
FLANGED TORX SCREW M8 X 65
420640333
7,49€ Unit Price incl. VAT

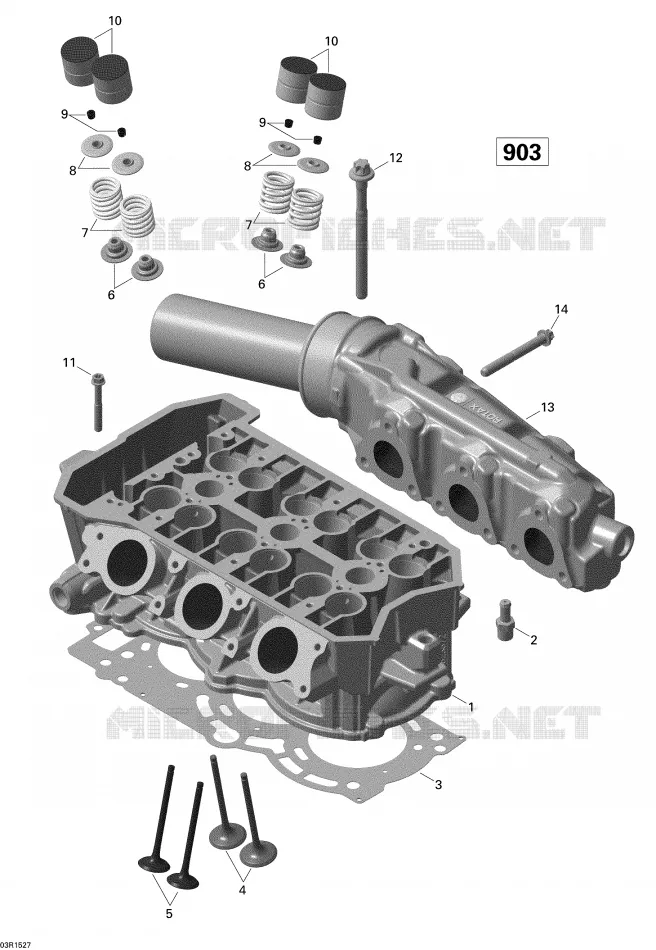

Find the detailed Cylinder Head _03R1527 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.
