Front Storage Compartment for Sea-Doo LRV DI 5771 from 2003

COFFRE BAG.AV. *TRAY-FRONT

204050218

585,26€ Unit Price incl. VAT

BLACK DART

293730006

1,16€ Unit Price incl. VAT

PANNEAU ACCESS *PANEL-ACCESS/FRONT

204630102

95,44€ Unit Price incl. VAT

BLACK DART

293730014

1,16€ Unit Price incl. VAT

GROMMET

293720029

1,76€ Unit Price incl. VAT

LATCH ASS Y

204050309

22,99€ Unit Price incl. VAT

BLACK TRIM, METER

204070055

17,64€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

Storage Cover Upper

204620238

Not Available

DEFLECTEUR *DEFLECTOR

204620201

137,38€ Unit Price incl. VAT

HEX. FLANGED PT SCREW K40 X 16

241141660

1,66€ Unit Price incl. VAT

FLAT WASHER 4 MM, STAINLESS

234041600

1,30€ Unit Price incl. VAT

DASH BOARD

269500588

41,57€ Unit Price incl. VAT

NUT HOUSING ASS Y

269500725

5,36€ Unit Price incl. VAT

M6 NUT HOUSING ASS Y

269500252

9,36€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

HEX. SCREW M6 X 25

207162560

1,62€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

GAUGE SUPPORT

269500585

21,17€ Unit Price incl. VAT

SCREW-THREAD CUT.PH.PAN TYPE25

211000098

4,48€ Unit Price incl. VAT

FLAT WASHER

211200007

1,73€ Unit Price incl. VAT

Bague de caoutchouc

570276900

Not Available

GRILLE ADMISS. *GRILL-AIR INT.

269500746

41,38€ Unit Price incl. VAT

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

ENJOLIVEUR GA. *MOULDING-LH.

269500712

83,38€ Unit Price incl. VAT

SOCKET SCREW M6 X 16

205461660

8,90€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

HEX. JAM NUT

204100060

1,78€ Unit Price incl. VAT

MIROIR DROIT *MIRROR-RH.

204620203

152,38€ Unit Price incl. VAT

ADAPTOR

269500546

11,39€ Unit Price incl. VAT

ADAPTOR

269500547

11,39€ Unit Price incl. VAT

Vis Allen M8 x 75

205087560

Not Available

HEX. ELASTIC NUT M8

232581600

1,66€ Unit Price incl. VAT

Not Available As Spare Parts

XXX

Not Available

HEX. FLANGED PT SCREW K40 X 16

241141660

1,66€ Unit Price incl. VAT

Not Available As Spare Parts

XXX

Not Available

MIRROR BALL JOINT

269500079

8,98€ Unit Price incl. VAT

MIRROR SPRING

269500453

11,32€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

MIRROR

269500454

26,98€ Unit Price incl. VAT

HEX. SCREW M6 X 80

207068060

2,86€ Unit Price incl. VAT

HEX. SCREW M6 X 70

207067060

6,62€ Unit Price incl. VAT

SYNTHETIC GREASE, 400 G

293550010

9779702

27,96€ Unit Price incl. VAT

SEALANT LOCTITE SI 5011CL

296000309

44,21€ Unit Price incl. VAT

SUPPORT D.PEINT*SUPPORT-PAINT.

204620207

53,63€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

PLAQUE MONTAGE *PLATE-MOUNTING

278000857

16,78€ Unit Price incl. VAT

RIVET_POP 3/16 X ,550

293150008

0,58€ Unit Price incl. VAT

FLAT WASHER 5 MM

234051500

0,84€ Unit Price incl. VAT

COMPASS

278001243

184,01€ Unit Price incl. VAT

CONNECTOR_MALE 4 CAVITIES

278000891

12,68€ Unit Price incl. VAT

CONNECTOR_FEMALE 2 CAVITIES

278000220

17,26€ Unit Price incl. VAT

FEMALE TERMINAL

278000223

3,66€ Unit Price incl. VAT

WIRE SEAL

278000218

5,00€ Unit Price incl. VAT

DART, BLACK

293730016

10,86€ Unit Price incl. VAT

AIR TEMPERATURE SENSOR

270600000

85,72€ Unit Price incl. VAT

INSULATOR

278001054

8,95€ Unit Price incl. VAT

Graisse diélectrique, 150 g

293550004

Not Available

COUV.BAGAGE INF*COVER-STOR.LOW

269500660

123,58€ Unit Price incl. VAT

FLAT WASHER

211200019

1,40€ Unit Price incl. VAT

GASKET

293250037

6,02€ Unit Price incl. VAT

EXTINGUISHER HOUSING

269500606

24,98€ Unit Price incl. VAT

EXTINGUISHER CAP

269500603

269501939

22,99€ Unit Price incl. VAT

SCREW-PAN HD.PH.DIN.7985A-A2

208661660

1,40€ Unit Price incl. VAT

Not Available As Spare Parts

XXX

Not Available

COUVRE BOULON *COVER-CAP SCREW

204620183

2,80€ Unit Price incl. VAT

ADHESIVE LOCTITE 425

293800040

53,75€ Unit Price incl. VAT

SCREW-PAN HD.PH.DIN.7985A-A2

208661660

1,40€ Unit Price incl. VAT

WASHER-LOCK HELICAL DIN.127B-A2

234161601

1,32€ Unit Price incl. VAT

ANNEAU NEOPRENE*NEOPRENE SEAL

293200060

31,48€ Unit Price incl. VAT

LATCH COVER

269700020

269700109

28,88€ Unit Price incl. VAT

LATCH BASE

269000015

269700109

28,88€ Unit Price incl. VAT

LEVIER LOQUET *LEVER-LATCH

269500610

3,25€ Unit Price incl. VAT

LATCH SPRING

269700017

10,42€ Unit Price incl. VAT

HEX. SCREW M6 X 25

207162560

1,62€ Unit Price incl. VAT

RH HINGE

269700022111

51,18€ Unit Price incl. VAT

COVER HINGE

269700038

86,14€ Unit Price incl. VAT

AXLE

269700024

10,08€ Unit Price incl. VAT

CUSHION

293350016

16,78€ Unit Price incl. VAT

HEX. FORMING SCREW M6 X 20

207162060

1,48€ Unit Price incl. VAT

GAS SHOCK ASS Y

269500261

142,01€ Unit Price incl. VAT

BELLOW

291000919

17,92€ Unit Price incl. VAT

WRAP_TIE 101 X 2.5

293750001

1,18€ Unit Price incl. VAT

WASHER-ALUMINUM

211200034

3,52€ Unit Price incl. VAT

SHORT PIN

211400006

8,69€ Unit Price incl. VAT

CIRCLIP

293370008

10,86€ Unit Price incl. VAT

FLAT WASHER 8 MM, STAINLESS

234081600

0,66€ Unit Price incl. VAT

HEX. SCREW M6 X 35

207063560

2,44€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

OWNERS TOOL KIT

295500783

24,31€ Unit Price incl. VAT

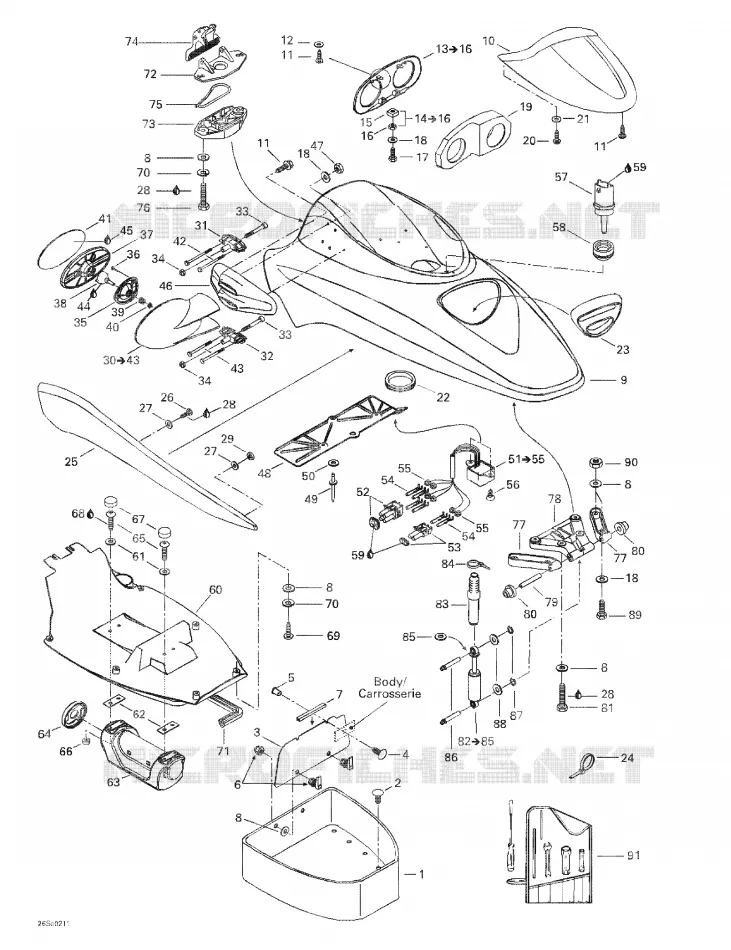

Find the detailed Front Storage Compartment SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
