Electrical System for Sea-Doo GSX 5620 from 1996

SCREW-TAPP.HEX. 6.3 X 13

211000012

2,39€ Unit Price incl. VAT

SUPPORT MODULE *SUPPORT-MODULE

278000611

2,74€ Unit Price incl. VAT

MODULE ELECTRON*MODULE-ELECT.

278000858

1 144,70€ Unit Price incl. VAT

SPACER

278000644

10,92€ Unit Price incl. VAT

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

ELECTRONIC MODULE ASS Y

278000897

523,73€ Unit Price incl. VAT

FUSE CAP

278000345

278001326

8,78€ Unit Price incl. VAT

FUSE CAP

278000378

13,84€ Unit Price incl. VAT

PORTE FUSIBLE *HOLDER-FUSE

278000379

3,53€ Unit Price incl. VAT

FUSE, 5 AMPERES

278000344

3,90€ Unit Price incl. VAT

FUSE, 15 AMPERES

278000343

3,90€ Unit Price incl. VAT

CUSHION

278000805

3,90€ Unit Price incl. VAT

FEMALE TERMINAL

290964068

278001009

3,66€ Unit Price incl. VAT

MALE TERMINAL

278000230

5,00€ Unit Price incl. VAT

INSULATING SHEATH

290964072

278001007

4,26€ Unit Price incl. VAT

GUARD_CONNECTOR

278000770

9,07€ Unit Price incl. VAT

INSULATING SHEATH (MALE TERMINAL)

290964077

278001008

3,88€ Unit Price incl. VAT

RING TERMINAL

278000300

3,68€ Unit Price incl. VAT

WASHER-LOCK HELICAL DIN.127B-A2

217361500

234161601

1,32€ Unit Price incl. VAT

Rubber Strip

293830012

Not Available

WRAP_TIE 101 X 2.5

293750001

1,18€ Unit Price incl. VAT

SCREW-TAPP.HEX.DIN.7976C

215462550

209462540

1,40€ Unit Price incl. VAT

RIVET_AVEX 4,8 X 18.7

293150037

0,68€ Unit Price incl. VAT

HEX. FLANGED SCREW 1/4"-20 X 1/2"

211000036

1,84€ Unit Price incl. VAT

JOINT ETANCHE *GASKET

278000181

11,70€ Unit Price incl. VAT

PLAQUE MONTAGE *PLATE-MOUNTING

278000615

10,80€ Unit Price incl. VAT

COUVERCLE BOITE*COVER-BOX ELEC

278000786

66,36€ Unit Price incl. VAT

SUPPORT BOITE *SUPPORT-BOX

278000780

6,04€ Unit Price incl. VAT

BASE BOITE ELEC*BASE-BOX ELECT

278000781

278001085

41,52€ Unit Price incl. VAT

REDRESSEUR ASS.*RECTIFIER-ASSY

278000443

91,72€ Unit Price incl. VAT

FEMALE TERMINAL

290964068

278001009

3,66€ Unit Price incl. VAT

MALE TERMINAL

278000230

5,00€ Unit Price incl. VAT

INSULATING SHEATH

290964072

278001007

4,26€ Unit Price incl. VAT

INSULATING SHEATH (MALE TERMINAL)

290964077

278001008

3,88€ Unit Price incl. VAT

RELAIS ASS. *RELAY-ASSY.

278000656

88,67€ Unit Price incl. VAT

FUSE CAP

278000378

13,84€ Unit Price incl. VAT

CUSHION

278000805

3,90€ Unit Price incl. VAT

WASHER-FLAT DIN.125A-A2(M6)

213200001

234061600

0,36€ Unit Price incl. VAT

NUT-HEXAGONAL DIN.934A2

212100004

232061600

1,30€ Unit Price incl. VAT

Electronic Module (Refer to Serv Bull N0. 96-34). Used on PWC with serial number ZZNM3126F696 thru ZZNM4115F696, ZZNM4124F696 thru ZZNM4132F696

278001047

Not Available

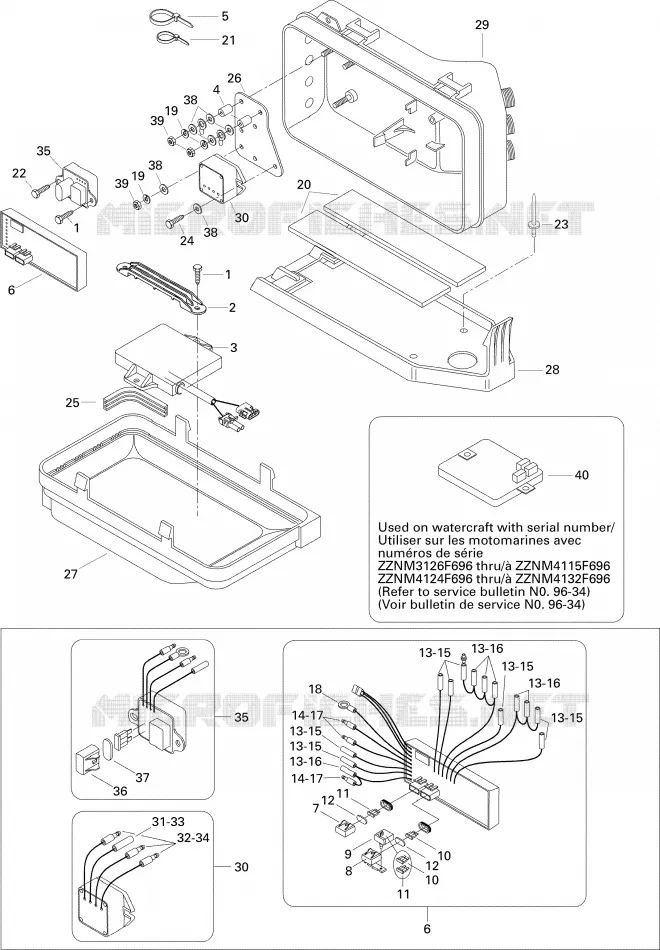

Find the detailed Electrical System SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
