Engine Compartment And Accessories for Sea-Doo 00- Model Numbers from 2007

LATCH BASE

204070037

15,49€ Unit Price incl. VAT

LATCH COVER

204070036

13,82€ Unit Price incl. VAT

SPRING

204070038

11,78€ Unit Price incl. VAT

LATCH PROTECTOR

204070952

37,34€ Unit Price incl. VAT

LATCH CABLE

204070049

109,00€ Unit Price incl. VAT

HEX. SCREW M6 X 35

207163560

1,68€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

MOUNT DART

293730040

1,24€ Unit Price incl. VAT

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

TIE RAP WITH DART

204130098

4,18€ Unit Price incl. VAT

DART, BLACK

204130099

6,72€ Unit Price incl. VAT

13a

WRAP_TIE 371 X 4.6

293750008

1,20€ Unit Price incl. VAT

ENGINE COVER

204072553

2 857,78€ Unit Price incl. VAT

D-SEAL RUBBER

204130083

31,99€ Unit Price incl. VAT

SHOCK BRACKET

204070065

23,99€ Unit Price incl. VAT

HEX. SCREW M4 X 16

207141660

1,76€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

HEX. JAM NUT M10

232100600

2,44€ Unit Price incl. VAT

FLAT WASHER 10 MM, STAINLESS

234002600

2,44€ Unit Price incl. VAT

RUBBER WASHER

291000628

1,84€ Unit Price incl. VAT

LATCH STUD

204130146

169,01€ Unit Price incl. VAT

GROMMET

293720017

9,38€ Unit Price incl. VAT

HINGE ASS Y

204070127

58,00€ Unit Price incl. VAT

HINGE ROD

204070204

13,16€ Unit Price incl. VAT

COTTER PIN M2.5 X 12

204070205

0,71€ Unit Price incl. VAT

HEX. SCREW M6 X 25

207162560

1,62€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

GAS SHOCK

204071964

92,00€ Unit Price incl. VAT

GAS SHOCK

204071959

97,99€ Unit Price incl. VAT

SHOCK BRACKET

204070065

23,99€ Unit Price incl. VAT

RIVET_POP 3/16 X ,800

204130014

2,52€ Unit Price incl. VAT

FLAT WASHER M5, STAINLESS

234051600

0,92€ Unit Price incl. VAT

INLET VENT COVER, PORT SIDE

204072463

319,00€ Unit Price incl. VAT

INLET VENT COVER, STARBOARD

204072464

319,00€ Unit Price incl. VAT

SCREW-SET 1/4-20 X 1-1/4 SS

204100142

1,79€ Unit Price incl. VAT

PRIMER LOCTITE SF 7649

293800041

53,34€ Unit Price incl. VAT

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

LOCK WASHER 1/4"

211200025

1,50€ Unit Price incl. VAT

FLAT WASHER 9/32#

204100089

1,57€ Unit Price incl. VAT

WASHER-FENDER/S.S.

204100139

1,57€ Unit Price incl. VAT

HEX. NUT 1/4"

211100026

1,22€ Unit Price incl. VAT

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

INLET VENT, PORT SIDE

204071856

41,99€ Unit Price incl. VAT

INLET VENT, STARBOARD

204071857

41,99€ Unit Price incl. VAT

Boyau de Ventilation 4"

204050476

Not Available

TAPPING SCREW M4.2 X 19

250000090

1,04€ Unit Price incl. VAT

BLACK DART

293730006

1,16€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

WRAP_TIE 371 X 4.6

293750008

1,20€ Unit Price incl. VAT

REAR STORAGE TRAY, PORT SIDE

204071858

94,00€ Unit Price incl. VAT

REAR STORAGE TRAY, STARBOARD

204071859

125,98€ Unit Price incl. VAT

SLOTTED BOLT 1/4#-20 X 1#

204100095

2,34€ Unit Price incl. VAT

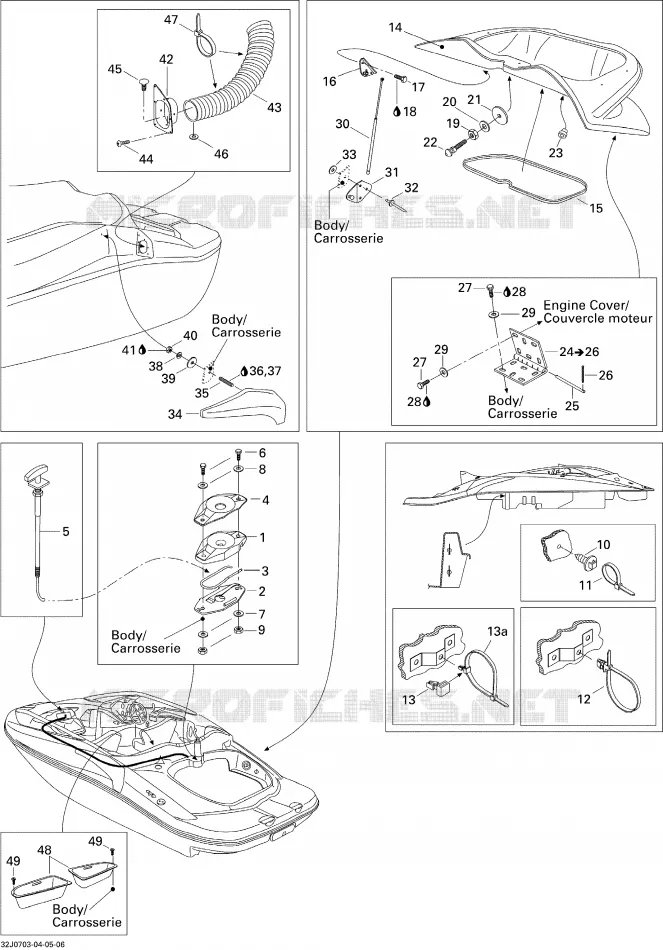

Find the detailed Engine Compartment And Accessories SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
