Electrical Accessories 3 for Sea-Doo 01- Cooling System from 2005

Electrical Accessories 3

1

PHILLIPS SCREW M4.2 X 25

209642560

1,40€ Unit Price incl. VAT

2

Graisse diélectrique, 150 g

293550004

Not Available

3

Phare de Navigation Rouge Ass., Bâbord. Inclus 3 à 6

204470754

Not Available

3

GREEN NAVIGATION LAMP ASSY, STARBOARD

204470755

82,00€ Unit Price incl. VAT

4

FEMALE HOUSING, 2 CIRCUITS

409209500

17,82€ Unit Price incl. VAT

5

FEMALE TERMINAL

278001014

3,90€ Unit Price incl. VAT

6

WIRE SEAL

278001013

3,90€ Unit Price incl. VAT

7

COURTESY LIGHT ASS Y

204470026

54,78€ Unit Price incl. VAT

8

BULB

204470081

14,06€ Unit Price incl. VAT

9

RIVET_POP 1/8 X ,487

293150032

0,50€ Unit Price incl. VAT

10

REAR LAMP BASE ASSY

204470642

60,00€ Unit Price incl. VAT

11

CONNECTOR_DELPHI MALE 2 CAVITIES

278000217

10,90€ Unit Price incl. VAT

12

MALE TERMINAL

278000222

3,66€ Unit Price incl. VAT

13

WIRE SEAL

278000218

5,00€ Unit Price incl. VAT

14

PHILLIPS TAPPING SCREW M4.2 X 32

209943260

1,62€ Unit Price incl. VAT

15

REAR LAMP POLE 62"

204470817

204471207

211,79€ Unit Price incl. VAT

15

REAR LAMP POLE

204470022

94,28€ Unit Price incl. VAT

16

BULB

204470053

15,94€ Unit Price incl. VAT

17

COLLAR

204470350

21,76€ Unit Price incl. VAT

18

HORN

204470801

76,80€ Unit Price incl. VAT

19

PHILLIPS TAPPING SCREW M4.2 X 32

209943260

1,62€ Unit Price incl. VAT

20

WEEDLESS SWITCH

204470858

204471048

52,00€ Unit Price incl. VAT

21

SWITCH PANEL

204470998

72,00€ Unit Price incl. VAT

22

TAPPING SCREW M4.2 X 19

250000090

1,04€ Unit Price incl. VAT

23

MODULE GRILLE*MODULE-GRATE/AUTO.

204470887

223,72€ Unit Price incl. VAT

24

PHILLIPS TAPPING SCREW M4.2 X 19

209641960

1,40€ Unit Price incl. VAT

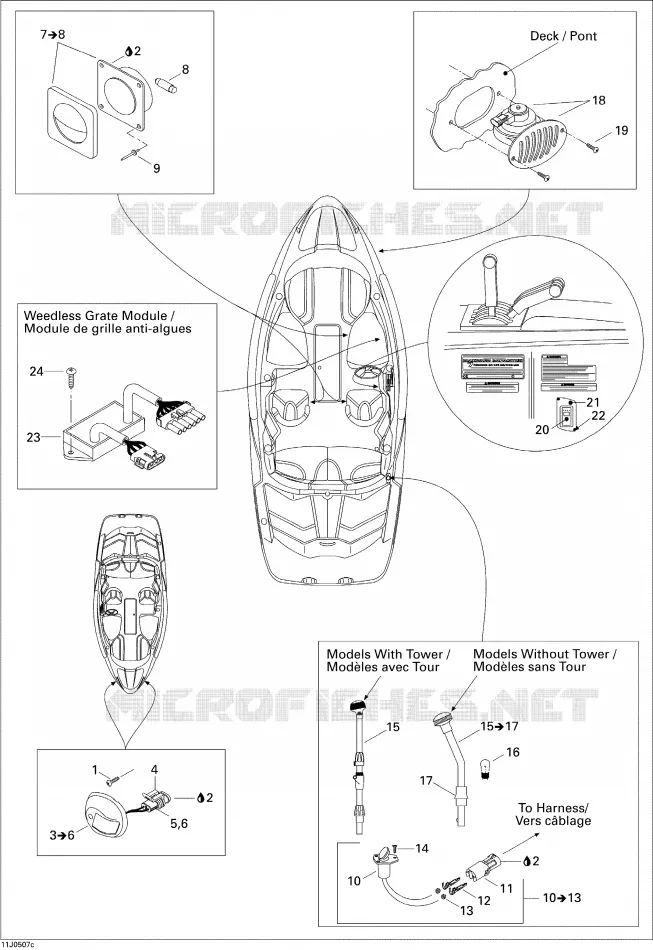

Find the detailed Electrical Accessories 3 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
