1
Model
GTX
2
Year
2010
3
Trim
GTX LIMITED iS 260 (iS:SUSPENSON INTELLIGENTE)
4
Parts Catalog

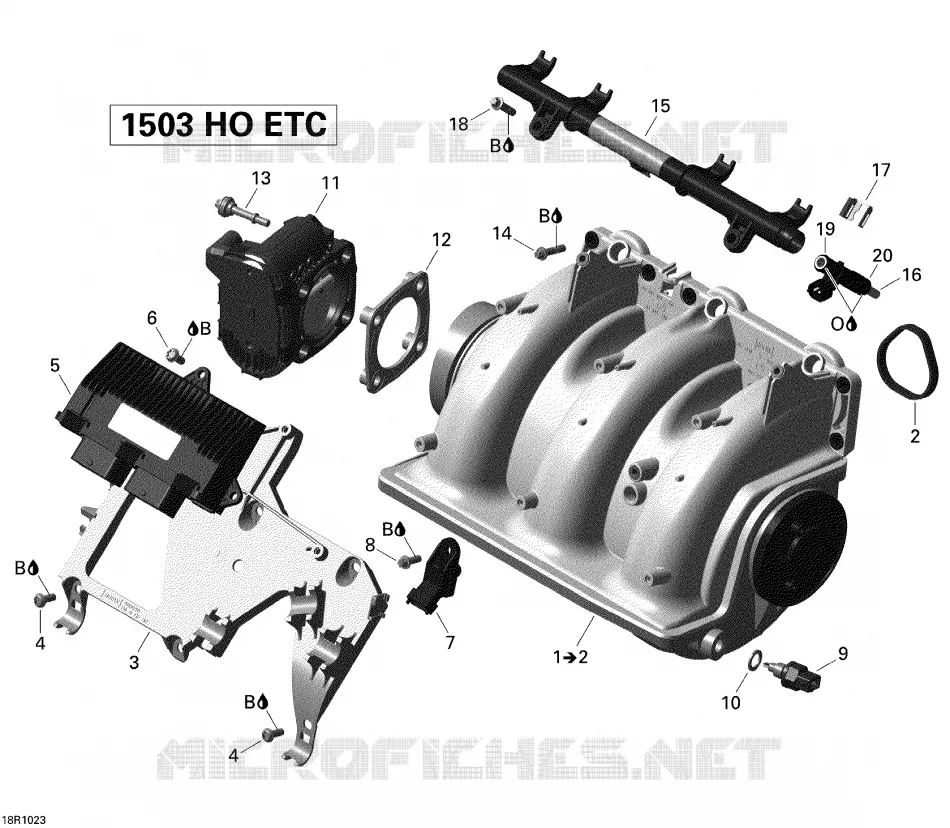

Air Intake Manifold And Throttle Body
5
Parts Diagram
Parts Catalog
Oil Separator
by
Supercharger
Air Intake Manifold And Throttle Body
14
1
7
3
9
11
2
8
13
20
18
6
15
4
4
19
16
12
10
17
5
5
1
INDUCTION MANIFOLD
420867951
741,01€ Unit Price incl. VAT
2
GASKET
420950740
5,18€ Unit Price incl. VAT
3
BASE PLATE
420460841
64,00€ Unit Price incl. VAT
4
FLANGED TORX SCREW M6 X 16
420641583
420641588
2,50€ Unit Price incl. VAT
5
ELECTRONIC BOX
420666322
420666532
1 414,03€ Unit Price incl. VAT
5
ELECTRONIC BOX
420666323
420666533
1 572,04€ Unit Price incl. VAT
6
FLANGED TORX SCREW M6 X 16
420641583
420641588
2,50€ Unit Price incl. VAT
7
PRESSURE SENSOR
420274057
157,01€ Unit Price incl. VAT
8
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
9
TEMPERATURE SENSOR
420222423
420222421
45,66€ Unit Price incl. VAT
10
THRUST WASHER
420227987
18,48€ Unit Price incl. VAT
11
THROTTLE BODY
420892590
420892592
610,01€ Unit Price incl. VAT
12
RUBBER GASKET
420950792
12,76€ Unit Price incl. VAT
13
TORX SCREW M6 X 30.5
420440560
420440561
5,26€ Unit Price incl. VAT
14
FLANGED TORX SCREW M6 X 25
420641238
3,84€ Unit Price incl. VAT
15
FUEL RAIL
420874396
420874414
171,00€ Unit Price incl. VAT
16
FUEL INJECTOR
420874834
420874846
170,00€ Unit Price incl. VAT
17
INJECTOR CLIP
420853030
3,52€ Unit Price incl. VAT
18
FLANGED TORX SCREW M6 X 25
420641238
3,84€ Unit Price incl. VAT
19
O-RING
420631220
16,46€ Unit Price incl. VAT
20
O-RING
420431890
8,52€ Unit Price incl. VAT
B
ADHESIVE LOCTITE 243
293800060
25,72€ Unit Price incl. VAT
O
Not Available As Spare Parts
XXX
Not Available

Find the detailed Air Intake Manifold And Throttle Body SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
