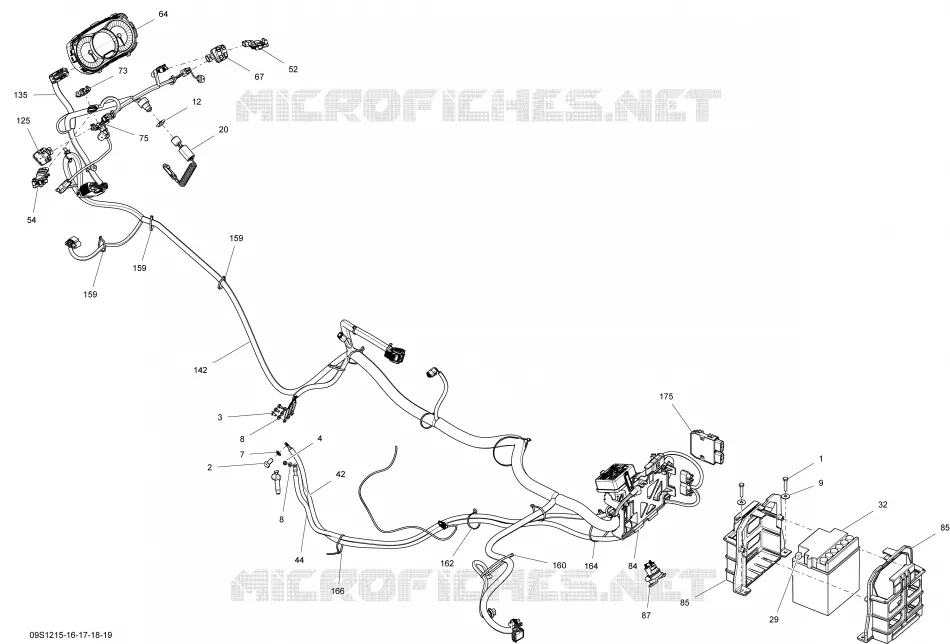

Find the detailed Electrical System SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.
The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
RXT 260 RS (17CA/17CB)
Model : RXT
Engine capacity : 1494
Year : 2012
