1
Model
SPARK
2
Year
2014
3
Trim
SPARK ACE 900 ( 2 SEATS AND 3 SEATS )
4
Parts Catalog
Propulsion _21S1401
5
Parts Diagram
Parts Catalog
Magneto And Electric Starter _04R1411
by
Pump _35S1401
Propulsion _21S1401
90
90
50
10
340
340
340
510
530
120
290
580
30
240
240
360
360
140
330
230
230
365
365
550
40
470
350
350
350
335
540
500
20
20
210
100
560
60
60
590
590
320
250
310
260
345
520
10
PUMP SUPPORT
271001886
63,06€ Unit Price incl. VAT
20
HEX. SCREW M8 X 30, SCOTCH GRIP
250000526
0,92€ Unit Price incl. VAT
30
WATER STRAIGHT FITTING, IN
271001818
16,88€ Unit Price incl. VAT
40
O-RING
293300006
5,18€ Unit Price incl. VAT
50
WATER STRAGHT FITTING, OUT
271001817
16,88€ Unit Price incl. VAT
60
FLAT WASHER
279000164
279000336
12,94€ Unit Price incl. VAT
90
HEX. SCREW M8 X 40, SCOTCH GRIP
250000230
2,94€ Unit Price incl. VAT
100
FLAT WASHER M8, STAINLESS
234080600
1,66€ Unit Price incl. VAT
120
HEX. ELASTIC NUT M8, BRASS
232581200
1,85€ Unit Price incl. VAT
140
GASKET
271001811
27,38€ Unit Price incl. VAT
210
PLATE_RIDE
271001840
167,00€ Unit Price incl. VAT
230
FLAT WASHER
293050001
1,85€ Unit Price incl. VAT
240
HEX. SCREW M8 X 40
207184060
2,44€ Unit Price incl. VAT
250
FLAT WASHER
279000164
279000336
12,94€ Unit Price incl. VAT
260
HEX. ELASTIC NUT M8, BRASS
232581200
1,85€ Unit Price incl. VAT
290
SCREW HEX. M6 X 35, SCOTCH GRIP
207363560
2,16€ Unit Price incl. VAT
310
ANODE ZINC
271001813
21,23€ Unit Price incl. VAT
320
NUT-STOP ELASTIC DIN.985
232561200
4,66€ Unit Price incl. VAT
330
PUMP GRATE
271001804
271002011
61,00€ Unit Price incl. VAT
335
HEX. SCREW 10-14 X 7/8
211000023
4,18€ Unit Price incl. VAT
340
HEX. SCREW M8 X 40
207184060
2,44€ Unit Price incl. VAT
345
CAP PLUG
293000105
4,80€ Unit Price incl. VAT
350
FLAT WASHER
293050001
1,85€ Unit Price incl. VAT
360
FLAT WASHER
279000164
279000336
12,94€ Unit Price incl. VAT
365
HEX. ELASTIC NUT M8, BRASS
232581200
1,85€ Unit Price incl. VAT
470
DRIVE SHAFT
271001761
271002072
366,01€ Unit Price incl. VAT
500
PROTECTOR SLEEVE KIT
295501148
16,36€ Unit Price incl. VAT
510
OETIKER CLAMP
509000442
5,92€ Unit Price incl. VAT
520
OETIKER CLAMP
509000181
5,18€ Unit Price incl. VAT
530
SCREW HEX. M6 X 35, SCOTCH GRIP
207363560
2,16€ Unit Price incl. VAT
540
SCREW HEX. M6 X 35, SCOTCH GRIP
207363560
2,16€ Unit Price incl. VAT
550
FLAT WASHER M6, STAINLESS
234061600
0,36€ Unit Price incl. VAT
560
NUT-STOP ELASTIC DIN.985
232561200
4,66€ Unit Price incl. VAT
580
BELLOW
271001760
25,92€ Unit Price incl. VAT
590
TRIDON GEAR CLAMP
293650023
15,52€ Unit Price incl. VAT

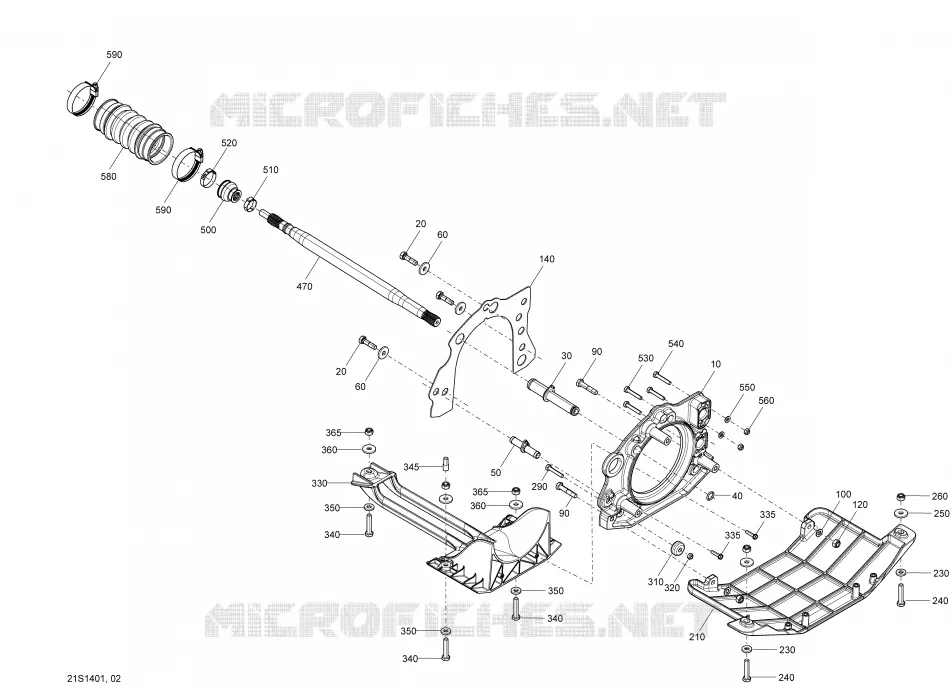

Find the detailed Propulsion _21S1401 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
