Body And Accessories for Sea-Doo 00- Model Numbers Edition 1 from 2006

Body And Accessories

1

MOUNT DART

293730018

293730040

1,24€ Unit Price incl. VAT

2

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

3

TIE RAP WITH DART

204130098

4,18€ Unit Price incl. VAT

4

GRIP HANDLE

204070045

204073191

43,00€ Unit Price incl. VAT

5

SNAP CAP

204070056

204073191

43,00€ Unit Price incl. VAT

6

ADHESIVE LOCTITE 414

413705800

30,01€ Unit Price incl. VAT

7

SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP

205963060

2,06€ Unit Price incl. VAT

8

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

9

CLEAT

204070592

31,99€ Unit Price incl. VAT

10

SOCKET HEAD SCREW M6 X 70

204100144

5,82€ Unit Price incl. VAT

11

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

12

SOCKET HEAD SCREW M6 X 40

205364060

2,08€ Unit Price incl. VAT

13

GRIP HANDLE, BLACK

204070194

43,00€ Unit Price incl. VAT

14

SEALANT LOCTITE SI 5011CL

296000309

44,21€ Unit Price incl. VAT

15

CUP HOLDER

291000619

11,95€ Unit Price incl. VAT

16

SKI TOW HOOK

204070206

89,98€ Unit Price incl. VAT

17

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

18

SOUNDWALL SEAL

204072117

49,73€ Unit Price incl. VAT

19

BLACK DART

293730014

1,16€ Unit Price incl. VAT

20

DART, BLACK

204130099

6,72€ Unit Price incl. VAT

21

WRAP_TIE 371 X 4.6

293750008

1,20€ Unit Price incl. VAT

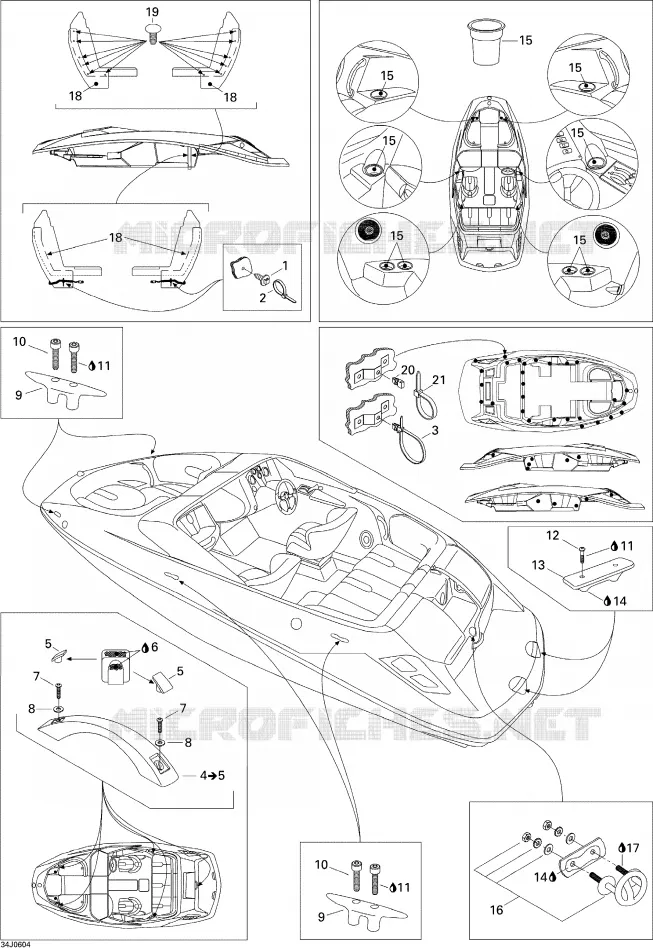

Find the detailed Body And Accessories SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
