Magneto, Oil Pump for Sea-Doo GTX 5526/5527/5538/5539 from 2001

HEX. NUT M18

420942220

12,20€ Unit Price incl. VAT

WASHER-LOCK 18MM

290945757

420945757

2,08€ Unit Price incl. VAT

FLYWHEEL HUB

290966682

326,27€ Unit Price incl. VAT

MAGNETO FLYWHEEL

290887945

420887945

443,15€ Unit Price incl. VAT

STATOR PLATE ASS Y

290886588

454,10€ Unit Price incl. VAT

SENSOR ASS Y

290966832

420966832

207,00€ Unit Price incl. VAT

VIS HEX.M6X16 *SCREW-HEX.M6X16

290640171

1,16€ Unit Price incl. VAT

SOCKET HEAD SCREW M6 X 30

205063044

2,04€ Unit Price incl. VAT

SOCKET HEAD SCREW M6 X 16

420241236

420241237

2,64€ Unit Price incl. VAT

HEX. SCREW M5 X 8

207150844

1,55€ Unit Price incl. VAT

PLAQUE RETENUE *PLATE-RETAINER

290853080

420853080

10,56€ Unit Price incl. VAT

O-RING

290931690

420931690

13,13€ Unit Price incl. VAT

ARBRE POMPE HUI*SHAFT-PUMP OIL

290837390

420837390

15,43€ Unit Price incl. VAT

COUVERCLE IGNIT*COVER-IGNITION

290811066

253,20€ Unit Price incl. VAT

SCREW-HEX.FLANGE DIN.6921

290240033

420240033

6,35€ Unit Price incl. VAT

O-RING

293300018

16,20€ Unit Price incl. VAT

POMP.HUILE ASS.*PUMP-OIL ASSY.

290888690

192,65€ Unit Price incl. VAT

SOCKET HEAD SCREW M5 X 16

205051660

2,08€ Unit Price incl. VAT

SCREW-SOCKET HD.DIN.912A2 SPEDCAP

290940888

3,60€ Unit Price incl. VAT

Hose (Foot)

414413800

Not Available

Hose (Foot)

414413800

Not Available

Clamp

420256408

Not Available

ADHESIVE LOCTITE 243

293800060

25,72€ Unit Price incl. VAT

LOCTITE 648, 10 ML

413711400

219703000

54,18€ Unit Price incl. VAT

LUBRIFIANT DOW CORNING 111 150G

413707000

71,81€ Unit Price incl. VAT

ADAPTOR

270000138

420966522

34,55€ Unit Price incl. VAT

GASKET

293300033

420630800

10,62€ Unit Price incl. VAT

JOINT ETANCHE *GASKET

293200030

3,86€ Unit Price incl. VAT

HOUSING-TAB

270000137

710001539

22,34€ Unit Price incl. VAT

MALE TERMINAL

278000631

5,00€ Unit Price incl. VAT

FEMALE LOCK, 6 CIRCUITS

278000735

3,66€ Unit Price incl. VAT

THROTTLE CABLE

277000892

255,00€ Unit Price incl. VAT

NUT-JAM HEXAGONAL DIN.439B-A2

212100003

232160600

1,30€ Unit Price incl. VAT

WASHER-FLAT DIN.125A-A2(M6)

213200001

234061600

0,36€ Unit Price incl. VAT

BOYAU PROTECT. *HOSE-PROTECTOR

290260437

420260437

7,39€ Unit Price incl. VAT

HEX. SCREW M6 X 16, SCOTCH GRIP

207361660

1,30€ Unit Price incl. VAT

Graisse diélectrique, 150 g

293550004

Not Available

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

EXTERNAL SERRATED LOCK WASHER 6 MM

234461608

1,32€ Unit Price incl. VAT

ENS.JOINT ETANC*SET-GASKET

290889150

167,98€ Unit Price incl. VAT

CYLINDER GASKET SET (NOT SHOWN)

290889155

80,38€ Unit Price incl. VAT

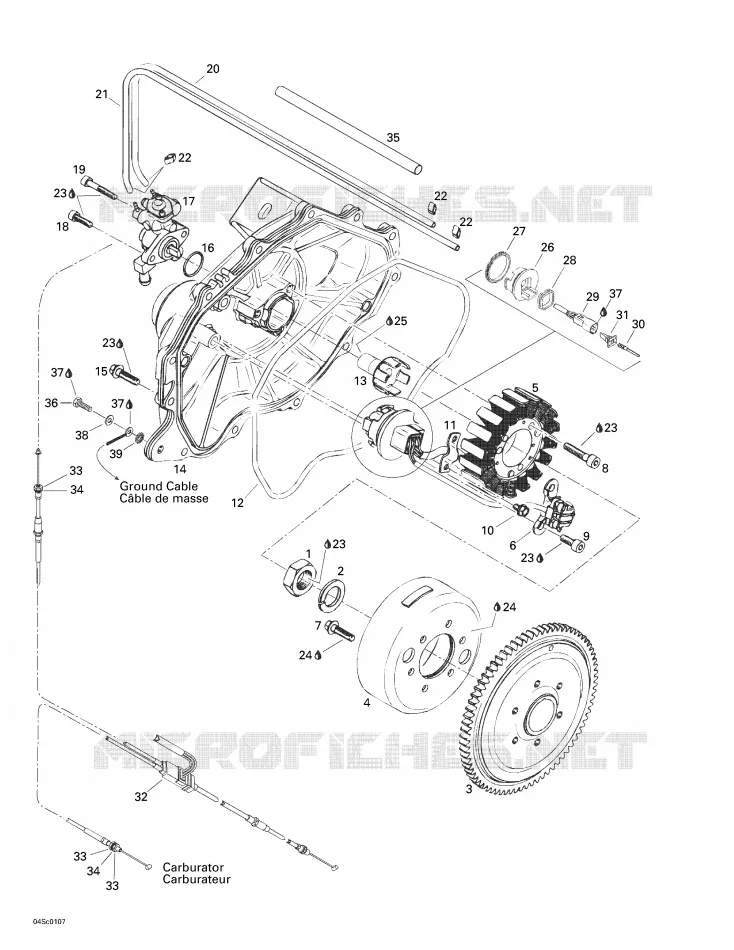

Find the detailed Magneto, Oil Pump SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
