Magneto, Oil Pump for Sea-Doo GTX LIMITED 5837/5842 from 1998

HEX. NUT M18

420942220

12,20€ Unit Price incl. VAT

WASHER-LOCK 18MM

290945757

420945757

2,08€ Unit Price incl. VAT

MOYEU ENGRENAGE*HUB-FLYWHEEL

290966680

310,43€ Unit Price incl. VAT

MAGNETO FLYWHEEL

290886598

415,14€ Unit Price incl. VAT

STATOR PLATE ASS Y

290886588

454,10€ Unit Price incl. VAT

SENSOR ASS Y

290965641

420966832

207,00€ Unit Price incl. VAT

VIS HEX.M6X16 *SCREW-HEX.M6X16

290640171

1,16€ Unit Price incl. VAT

SOCKET HEAD SCREW M6 X 30

420840886

420840887

1,92€ Unit Price incl. VAT

SOCKET HEAD SCREW M6 X 16

420241236

420241237

2,64€ Unit Price incl. VAT

SCREW-HEX.CAP DIN.933

215050848

207150844

1,55€ Unit Price incl. VAT

PLAQUE RETENUE *PLATE-RETAINER

290853080

420853080

10,56€ Unit Price incl. VAT

O-RING

290931690

420931690

13,13€ Unit Price incl. VAT

ARBRE POMPE HUI*SHAFT-PUMP OIL

290837390

420837390

15,43€ Unit Price incl. VAT

COUVERCLE IGNIT*COVER-IGNITION

290811062

298,80€ Unit Price incl. VAT

VIS HEX. *SCREW-HEX.

290240032

420240033

6,35€ Unit Price incl. VAT

O-RING

293300018

16,20€ Unit Price incl. VAT

POMP.HUILE ASS.*PUMP-OIL ASSY.

290887335

270500423

285,11€ Unit Price incl. VAT

SCREW-SOCKET HD.DIN.912A2

215951660

205051660

2,08€ Unit Price incl. VAT

SCREW-SOCKET HD.DIN.912A2

290940883

3,60€ Unit Price incl. VAT

Oil Line (120 mm - 190 mm)

275000039

Not Available

Oil Line (120 mm - 190 mm)

275000039

Not Available

BRIDE SERRAGE *CLAMP

290256408

1,90€ Unit Price incl. VAT

LUBRIFIANT - DEOXIT, 250 ML

293800015

293800060

25,72€ Unit Price incl. VAT

LOCTITE 648, 10 ML

413711400

219703000

54,18€ Unit Price incl. VAT

LUBRIFIANT DOW CORNING 111 150G

413707000

71,81€ Unit Price incl. VAT

ADAPTOR

270000138

420966522

34,55€ Unit Price incl. VAT

GASKET

293300033

420630800

10,62€ Unit Price incl. VAT

JOINT ETANCHE *GASKET

293200030

3,86€ Unit Price incl. VAT

HOUSING-TAB

270000137

710001539

22,34€ Unit Price incl. VAT

MALE TERMINAL

278000631

5,00€ Unit Price incl. VAT

MALE LOCK, 6 CIRCUITS

278000737

2,71€ Unit Price incl. VAT

CABLE INJECTION*CABLE-INJECT.

270000382

64,00€ Unit Price incl. VAT

NUT-JAM HEXAGONAL DIN.439B-A2

212100003

232160600

1,30€ Unit Price incl. VAT

WASHER-LOCK HELICAL DIN.127B-A2

217361500

234161601

1,32€ Unit Price incl. VAT

BOYAU PROTECT. *HOSE-PROTECTOR

290260437

420260437

7,39€ Unit Price incl. VAT

SCREW-HEX.CAP DIN.933A2

215061660

207161660

1,62€ Unit Price incl. VAT

WASHER-LOCK HELICAL DIN.127B-A2

217361500

234161601

1,32€ Unit Price incl. VAT

WASHER-FLAT DIN.9021B-A2(M6)

213200007

234062600

0,92€ Unit Price incl. VAT

WASHER-LOCK SERRATED DIN.6798A-A2

217161600

234461608

1,32€ Unit Price incl. VAT

Graisse diélectrique, 150 g

293550004

Not Available

ENGINE GASKET SET (NOT SHOWN)

290888131

158,58€ Unit Price incl. VAT

ENS.JOINT CYL. *SET-GASKET CYL

290888136

70,02€ Unit Price incl. VAT

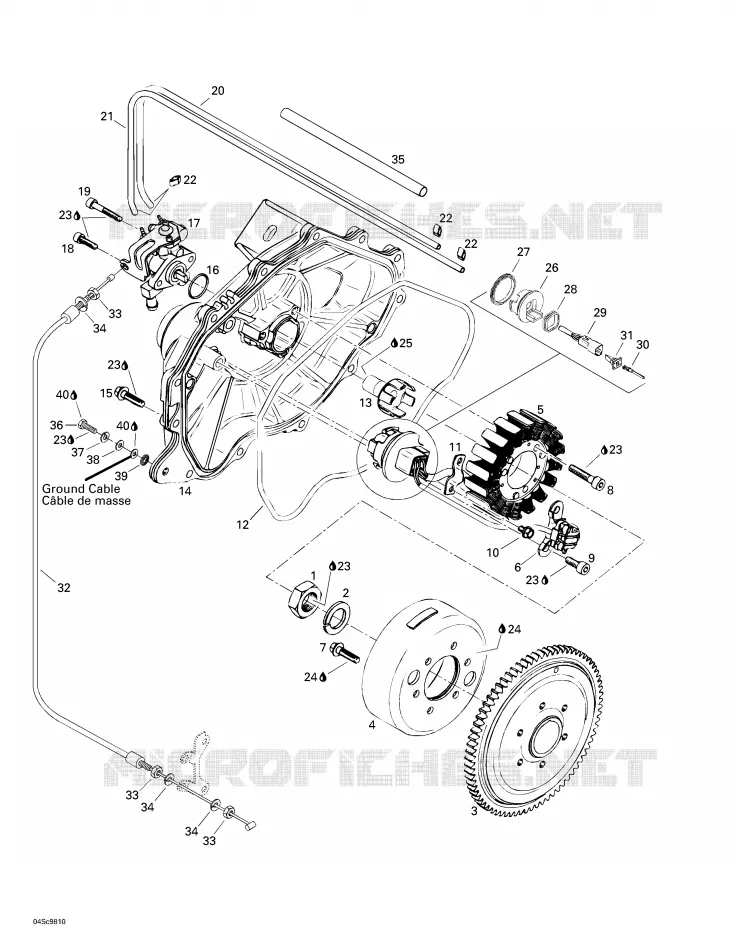

Find the detailed Magneto, Oil Pump SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
