Electrical System - RXT-X aS 260 for Sea-Doo RXT from 2016

Electrical System - RXT-X aS 260

1

HEX. SCREW M8 X 40

207184060

2,44€ Unit Price incl. VAT

2

HEX. SCREW M10 X 20, SCOTCH GRIP

207302060

4,72€ Unit Price incl. VAT

3

HEX. SCREW M6 X 12, SCOTCH GRIP

207361260

0,70€ Unit Price incl. VAT

4

NUT-STOP ELASTIC DIN.985

232561200

4,66€ Unit Price incl. VAT

5

FLAT WASHER 10 MM, STAINLESS

234000600

1,66€ Unit Price incl. VAT

6

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

7

FLAT WASHER 8 MM, STAINLESS

234082600

2,84€ Unit Price incl. VAT

8

TORX SCREW PLASTITE M6

250000466

7,98€ Unit Price incl. VAT

9

STRAP

269500408

269502417

19,86€ Unit Price incl. VAT

11

SENSOR_POSITION THROTTLE

278002283

138,00€ Unit Price incl. VAT

12

SENSOR

278002284

134,00€ Unit Price incl. VAT

14

SWITCH

278002602

144,00€ Unit Price incl. VAT

15

DIAGNOSTIC CONNECTOR

278002704

22,34€ Unit Price incl. VAT

16

SWITCH

278002767

143,90€ Unit Price incl. VAT

18

CLIP

278002910

12,74€ Unit Price incl. VAT

19

BATT. SUPPORT

278003136

32,46€ Unit Price incl. VAT

20

STEERING HARNESS ASS Y

278003266

350,00€ Unit Price incl. VAT

21

BATTERY YUASA YTX20L

410301203

161,54€ Unit Price incl. VAT

21a

BATTERY BOLT KIT

250000282

4,60€ Unit Price incl. VAT

23

WIRING HARNESS_MAIN

278003332

646,01€ Unit Price incl. VAT

25

STARTER RELAY

278003012

50,32€ Unit Price incl. VAT

26

CLIP

278003359

278003521

20,00€ Unit Price incl. VAT

27

CABLE-STARTER

278003398

72,00€ Unit Price incl. VAT

28

WRAP_TIE 371 X 4.6

293750008

1,20€ Unit Price incl. VAT

31

BATTERY GROUND CABLE

278003269

47,68€ Unit Price incl. VAT

32

LCD GAUGE

278003382

768,01€ Unit Price incl. VAT

33

DESS SWITCH

515178049

515178840

97,00€ Unit Price incl. VAT

34

SAFETY NUT

278002963

3,90€ Unit Price incl. VAT

35

O.T.A.S ACTUATOR

278003053

278003537

46,66€ Unit Price incl. VAT

36

SENSOR

278003009

123,00€ Unit Price incl. VAT

37

WRAP_TIE 300 X 4.6

293750053

2,34€ Unit Price incl. VAT

38

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

38

WRAP_TIE 550 X 4

293750047

2,42€ Unit Price incl. VAT

39

SENSOR

278003008

123,00€ Unit Price incl. VAT

40

ANTI-THEFT TETHER CORD

278003400

82,90€ Unit Price incl. VAT

40

ANTI-THEFT TETHER CORD

278003401

82,90€ Unit Price incl. VAT

46

VOLTAGE REGULATOR

710001103

157,85€ Unit Price incl. VAT

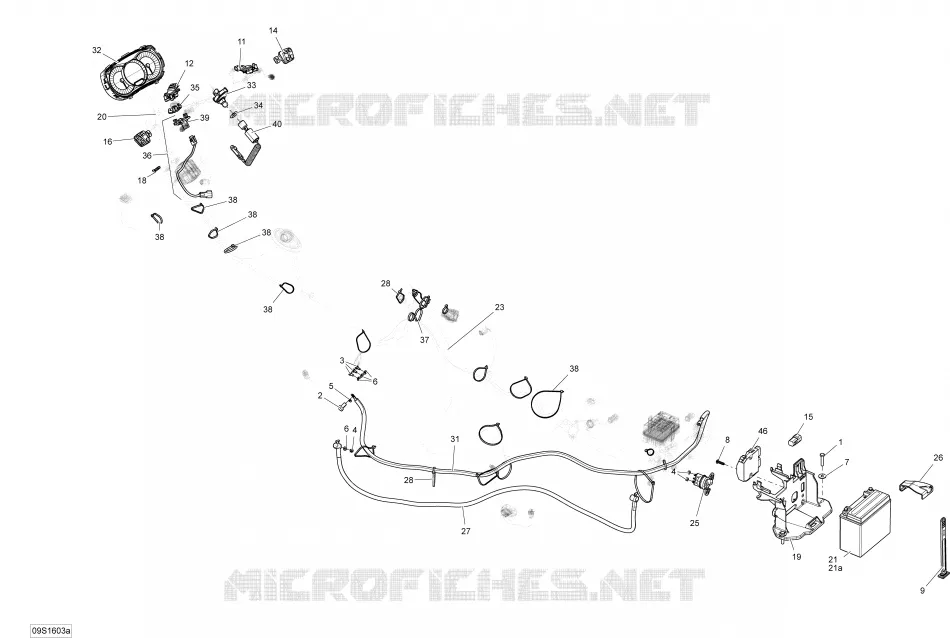

Find the detailed Electrical System - RXT-X aS 260 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
