1
Model
GTI
2
Year
2004
3
Trim
GTI LE RFI ( FUEL INJECTION )
4
Parts Catalog
Cooling System
5
Parts Diagram
Parts Catalog
by
Crankcase And Rotary Valve
Cooling System
34
34
23
45
45
36
22
52
24
60
15
13
29
29
4
56
57
44
25
51
47
39
5
5
48
48
9
38
66
19
16
35
41
30
31
59
59
65
65
18
21
63
1
28
40
68
68
68
17
61
50
50
26
3
69
55
55
62
43
43
64
42
32
32
6
2
2
14
33
8
7
27
27
67
67
67
67
67
10
49
46
12
58
11
20
53
53
37
37
54
1
HOSE-12.5MM.
276000001
14,24€ Unit Price incl. VAT
2
TRIDON GEAR CLAMP
293650172
3,52€ Unit Price incl. VAT
3
T-FITTING
293710025
293710116
20,00€ Unit Price incl. VAT
4
HOSE-12.5MM.
276000001
14,24€ Unit Price incl. VAT
5
TRIDON GEAR CLAMP
293650172
3,52€ Unit Price incl. VAT
6
WRAP_TIE 173 X 4.6
293750009
1,20€ Unit Price incl. VAT
7
WRAP_TIE 188 X 4.6
414115200
0,12€ Unit Price incl. VAT
8
HOSE 5/16"
275500548
20,99€ Unit Price incl. VAT
9
TRIDON GEAR CLAMP
293650170
2,26€ Unit Price incl. VAT
10
TRIDON GEAR CLAMP
293650171
3,52€ Unit Price incl. VAT
11
REGULATOR ASSY
276000134
169,31€ Unit Price incl. VAT
12
Not Available As Spare Parts
XXX
Not Available
13
Not Available As Spare Parts
XXX
Not Available
14
Not Available As Spare Parts
XXX
Not Available
15
Not Available As Spare Parts
XXX
Not Available
16
SPRING 50 MM
274000612
7,18€ Unit Price incl. VAT
17
VALVE COVER
420911552
45,66€ Unit Price incl. VAT
18
BELLOW
420260721
62,00€ Unit Price incl. VAT
19
SPRING CLAMP
420838190
5,98€ Unit Price incl. VAT
20
Not Available As Spare Parts
XXX
Not Available
21
RIVALAIR CLAMP
293650065
31,46€ Unit Price incl. VAT
22
ADJUSTER SCREW
420241221
16,56€ Unit Price incl. VAT
23
SPRING CLIP
420838083
20,27€ Unit Price incl. VAT
24
MALE FITTING
293700042
9,24€ Unit Price incl. VAT
25
SEALANT LOCTITE 592
293800018
43,46€ Unit Price incl. VAT
26
Boyau 1/4"
275500549
Not Available
27
TRIDON GEAR CLAMP
293650170
2,26€ Unit Price incl. VAT
28
MOUNT DART
293730018
293730040
1,24€ Unit Price incl. VAT
29
WRAP_TIE 142 X 3.2
293750002
1,38€ Unit Price incl. VAT
30
Gaine
409901800
Not Available
31
Boyau 8 mm (mètre)
275000007
Not Available
32
WRAP_TIE 101 X 2.5
293750001
1,18€ Unit Price incl. VAT
33
HOSE-12.5MM.
276000001
14,24€ Unit Price incl. VAT
34
TRIDON GEAR CLAMP
293650172
3,52€ Unit Price incl. VAT
35
T-FITTING
293710025
293710116
20,00€ Unit Price incl. VAT
36
HOSE-12.5MM.
276000001
14,24€ Unit Price incl. VAT
37
TRIDON GEAR CLAMP
293650172
3,52€ Unit Price incl. VAT
38
HOSE 5/16"
275500548
20,99€ Unit Price incl. VAT
39
TRIDON GEAR CLAMP
293650170
2,26€ Unit Price incl. VAT
40
OETIKER CLAMP
293650047
3,70€ Unit Price incl. VAT
41
QUICK FITTING
293710067
415128965
Not Available
42
HOSE-12.5MM.
276000001
14,24€ Unit Price incl. VAT
43
TRIDON GEAR CLAMP
293650172
3,52€ Unit Price incl. VAT
44
Boyau 8 mm (mètre)
275000007
Not Available
45
WRAP_TIE 101 X 2.5
293750001
1,18€ Unit Price incl. VAT
46
T-FITTING
293710061
11,30€ Unit Price incl. VAT
47
Boyau 8 mm (mètre)
275000007
Not Available
48
WRAP_TIE 101 X 2.5
293750001
1,18€ Unit Price incl. VAT
49
Boyau 8 mm (mètre)
275000007
Not Available
50
WRAP_TIE 101 X 2.5
293750001
1,18€ Unit Price incl. VAT
51
T-FITTING
293710061
11,30€ Unit Price incl. VAT
52
Boyau 8 mm (mètre)
275000007
Not Available
53
WRAP_TIE 101 X 2.5
293750001
1,18€ Unit Price incl. VAT
54
Boyau 8 mm (mètre)
275000007
Not Available
55
WRAP_TIE 101 X 2.5
293750001
1,18€ Unit Price incl. VAT
56
WIRE SUPPORT
278001597
5,44€ Unit Price incl. VAT
57
COLLAR SUPPORT
278000559
8,12€ Unit Price incl. VAT
58
Boyau 6 mm (mètre)
276000048
Not Available
59
WRAP_TIE 101 X 2.5
293750001
1,18€ Unit Price incl. VAT
60
GROMMET
293720029
1,76€ Unit Price incl. VAT
61
STRAIGHT FITTING
293710039
8,92€ Unit Price incl. VAT
62
SHRINK TUBING
276000132
49,42€ Unit Price incl. VAT
63
ELBOW FITTING 90
293710018
14,38€ Unit Price incl. VAT
64
MALE CONNECTOR
293710021
16,37€ Unit Price incl. VAT
65
SEALANT LOCTITE 592
293800018
43,46€ Unit Price incl. VAT
66
ELBOW FITTING 90
293710018
14,38€ Unit Price incl. VAT
67
SEALANT LOCTITE 567
293800013
92,51€ Unit Price incl. VAT
68
ELBOW FITTING
293700016
A19302179000
13,61€ Unit Price incl. VAT
69
ELBOW FITTING 45
293700036
204130218
13,84€ Unit Price incl. VAT

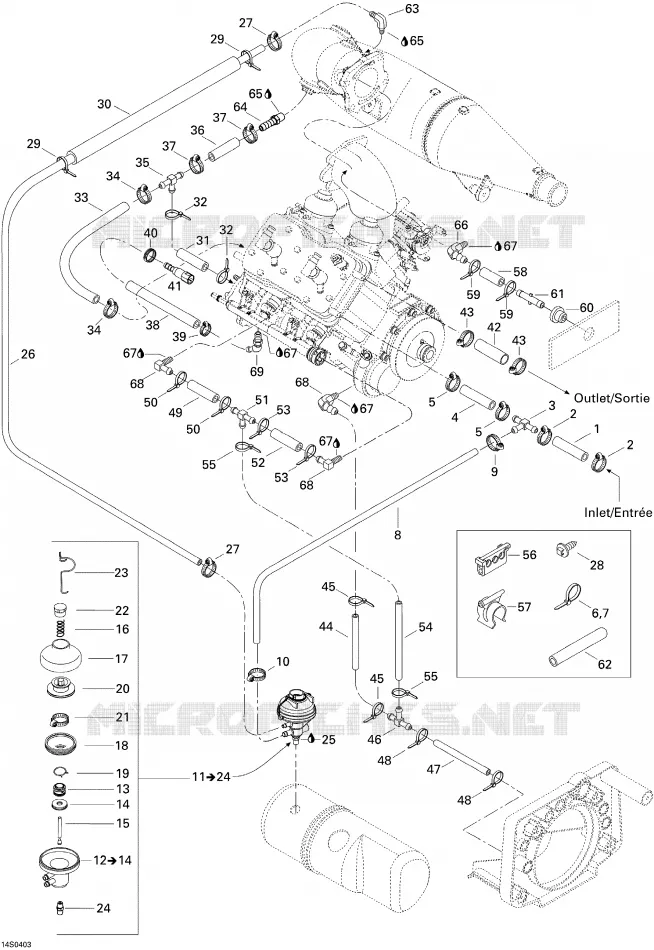

Find the detailed Cooling System SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
