Electrical Harness 2 for Sea-Doo RXP from 2005

MAIN HARNESS ASS Y

278002006

798,01€ Unit Price incl. VAT

FEMALE TERMINAL

278000223

3,66€ Unit Price incl. VAT

MALE CONNECTOR, 4 CIRCUITS

278001308

13,13€ Unit Price incl. VAT

MALE CONNECTOR, 26 CIRCUITS

278000993

40,14€ Unit Price incl. VAT

MALE TERMINAL HOUSING, 26 CIRCUITS

278001062

40,14€ Unit Price incl. VAT

HOUSING-TAB

270000137

710001539

22,34€ Unit Price incl. VAT

CONNECTOR_DELPHI MALE 2 CAVITIES

278000217

10,90€ Unit Price incl. VAT

CONNECTOR_FEMALE 3 CAVITIES

278000273

10,90€ Unit Price incl. VAT

FEMALE LOCK, 6 CIRCUITS

278000735

3,66€ Unit Price incl. VAT

100

MALE TERMINAL

278000631

5,00€ Unit Price incl. VAT

110

CONNECTOR_MALE 6 CAVITIES

278000736

710001540

25,60€ Unit Price incl. VAT

130

MALE TERMINAL

515175823

5,36€ Unit Price incl. VAT

140

FEMALE TERMINAL

278001114

3,66€ Unit Price incl. VAT

150

FEMALE TERMINAL

278000995

5,62€ Unit Price incl. VAT

160

FEMALE TERMINAL

278000994

2,71€ Unit Price incl. VAT

170

FEMALE TERMINAL

409011700

3,96€ Unit Price incl. VAT

180

FEMALE TERMINAL

278001661

9,89€ Unit Price incl. VAT

190

WIRE SEAL

278000216

3,66€ Unit Price incl. VAT

200

FEMALE TERMINAL

278000632

2,42€ Unit Price incl. VAT

210

WIRE SEAL

278000996

2,90€ Unit Price incl. VAT

220

TERMINAL_FEMALE

278001392

5,46€ Unit Price incl. VAT

230

MALE HOUSING, 41 CIRCUITS

278001751

28,64€ Unit Price incl. VAT

240

SEALING CAP

293000070

5,44€ Unit Price incl. VAT

250

Joint d'Étanchéité

278001223

Not Available

260

WIRE SEAL

278000218

5,00€ Unit Price incl. VAT

270

SEALING CAP

293000052

3,66€ Unit Price incl. VAT

280

MALE LOCK, 3 CIRCUITS

409207600

3,66€ Unit Price incl. VAT

290

MALE LOCK, 6 CIRCUITS

278000737

2,71€ Unit Price incl. VAT

300

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

310

CONNECTOR_MALE 3 CAVITIES

409207000

278002378

15,64€ Unit Price incl. VAT

320

FEMALE HOUSING, 4 CIRCUITS

278000635

18,54€ Unit Price incl. VAT

330

FEMALE WEDGE, 4 CIRCUITS

278000636

5,00€ Unit Price incl. VAT

360

FEMALE TERMINAL HOUSING, 2 CIRCUITS

278001673

27,94€ Unit Price incl. VAT

370

WEDGE-2 WAYS M

278001671

4,26€ Unit Price incl. VAT

387

Graisse diélectrique, 150 g

293550004

Not Available

420

MALE CONNECTOR, 4 CIRCUITS

278000739

21,42€ Unit Price incl. VAT

430

MALE LOCK, 4 CIRCUITS

278000738

3,52€ Unit Price incl. VAT

440

FEMALE TERMINAL

515175567

8,78€ Unit Price incl. VAT

450

FEMALE TERMINAL

278001750

4,00€ Unit Price incl. VAT

460

CONNECTOR_FEMALE 2 CAVITIES

278000220

17,26€ Unit Price incl. VAT

470

CONNECTOR_FEMALE 3 CAVITIES

409207400

278002375

36,44€ Unit Price incl. VAT

480

FEMALE LOCK

409207200

5,00€ Unit Price incl. VAT

500

Not Available As Spare Parts

XXX

Not Available

530

Not Available As Spare Parts

XXX

Not Available

540

Not Available As Spare Parts

XXX

Not Available

560

Not Available As Spare Parts

XXX

Not Available

570

Not Available As Spare Parts

XXX

Not Available

580

WRAP_TIE 173 X 4.6

293750009

1,20€ Unit Price incl. VAT

590

Not Available As Spare Parts

XXX

Not Available

600

Not Available As Spare Parts

XXX

Not Available

610

COVER

515175885

8,59€ Unit Price incl. VAT

620

LATCH

515175883

10,87€ Unit Price incl. VAT

630

SEAL

515175886

7,51€ Unit Price incl. VAT

640

LOCK

515175884

7,99€ Unit Price incl. VAT

650

MALE CONNECTOR, 6 CIRCUITS

278000221

18,60€ Unit Price incl. VAT

660

MALE TERMINAL

409004300

6,62€ Unit Price incl. VAT

670

Not Available As Spare Parts

XXX

Not Available

680

Not Available As Spare Parts

XXX

Not Available

700

CONNECTOR_FEMALE 2 CAVITIES

278001113

19,79€ Unit Price incl. VAT

710

Not Available As Spare Parts

XXX

Not Available

720

FUSE HOLDER

278001325

10,38€ Unit Price incl. VAT

730

FEMALE TERMINAL

710000357

8,78€ Unit Price incl. VAT

750

BATTERY CABLE

278002058

38,17€ Unit Price incl. VAT

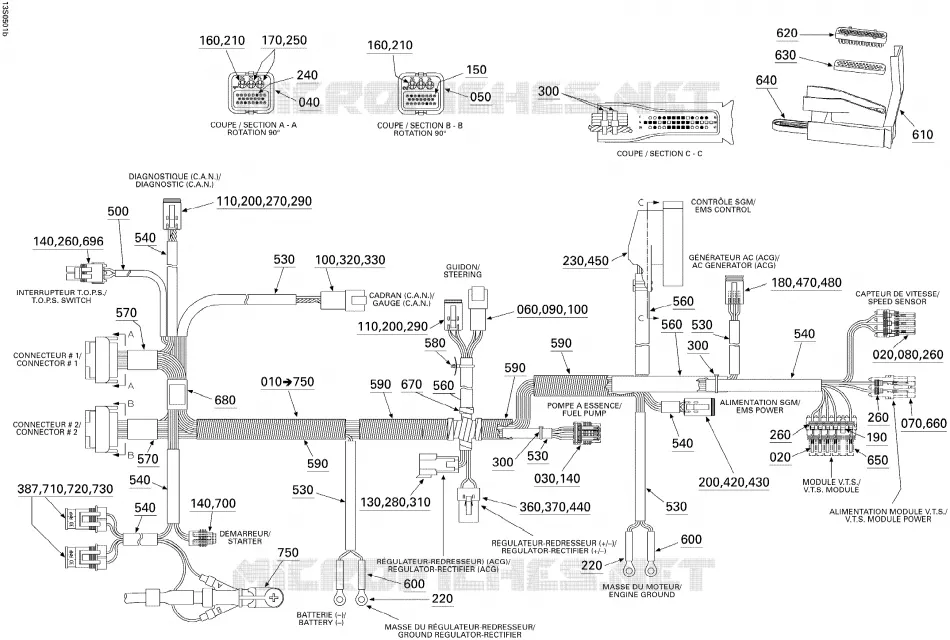

Find the detailed Electrical Harness 2 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RXP

Sea-Doo RXP 2005

RXP

Model : RXP

Engine capacity : 1494

Year : 2005
