Supercharger _38R1531 for Sea-Doo GTX LIMITED iS 260 from 2015

Supercharger _38R1531

1

SUPERCHARGER ASS Y

420881992

420893563

1 824,67€ Unit Price incl. VAT

2

COMPRESSOR BASE PLATE

420867180

420867181

324,01€ Unit Price incl. VAT

3

DRIVE PIN 5 X 10

420929650

1,92€ Unit Price incl. VAT

4

BALL BEARING

420832710

420832713

45,66€ Unit Price incl. VAT

5

THRUST WASHER

420227685

8,06€ Unit Price incl. VAT

6

Not Available As Spare Parts

XXX

Not Available

7

O-RING

420650270

9,28€ Unit Price incl. VAT

8

Not Available As Spare Parts

XXX

Not Available

9

Not Available As Spare Parts

XXX

Not Available

10

NEEDLE PIN

420632435

40,58€ Unit Price incl. VAT

11

Not Available As Spare Parts

XXX

Not Available

12

Not Available As Spare Parts

XXX

Not Available

13

Not Available As Spare Parts

XXX

Not Available

14

Not Available As Spare Parts

XXX

Not Available

15

HEX. NUT

420942950

15,46€ Unit Price incl. VAT

16

Not Available As Spare Parts

XXX

Not Available

17

OIL SEAL

420950940

35,50€ Unit Price incl. VAT

18

Not Available As Spare Parts

XXX

Not Available

19

O-RING

420950950

1,20€ Unit Price incl. VAT

20

COMPRESSOR IMPELLER

420867195

850,48€ Unit Price incl. VAT

21

SHIM

420627418

19,94€ Unit Price incl. VAT

22

CAP NUT

420842833

23,99€ Unit Price incl. VAT

23

COMPRESSOR HOUSING

420867157

198,00€ Unit Price incl. VAT

24

FLANGED TORX SCREW M6 X 25

420641238

3,84€ Unit Price incl. VAT

25

FLANGED TORX SCREW M6 X 35

420641258

4,00€ Unit Price incl. VAT

26

OETIKER CLAMP

420851703

26,53€ Unit Price incl. VAT

27

SUPERCHARGER KIT

420881102

548,58€ Unit Price incl. VAT

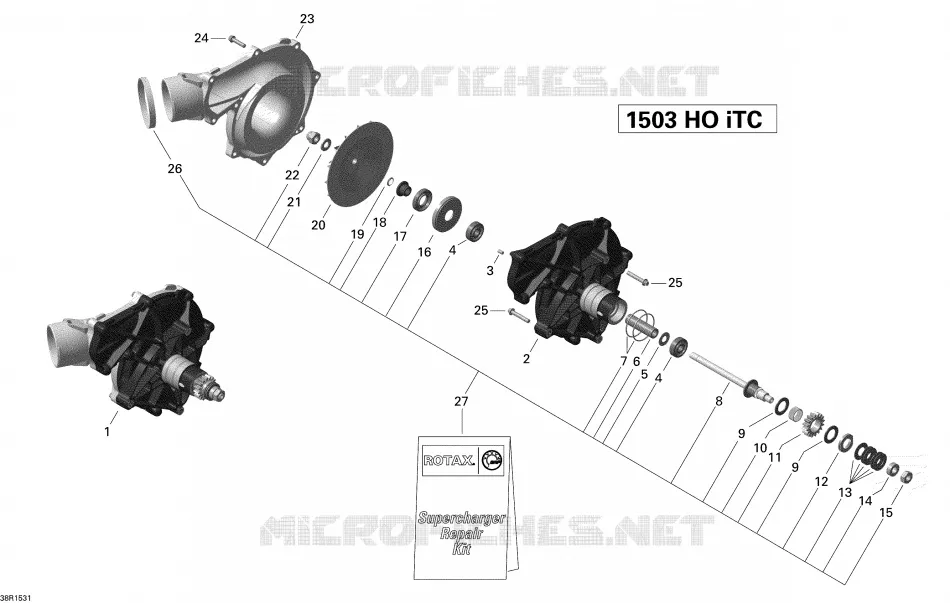

Find the detailed Supercharger _38R1531 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
