1
Model
RXT
2
Year
2012
3
Trim
RXT 260 RS (17CS)
4
Parts Catalog
Reverse
5
Parts Diagram
Parts Catalog
Pump
by
Steering 2
Reverse
44
44
4
15
15
25
25
25
25
26
9
30
30
30
35
36
21
21
20
20
8
16
37
37
43
43
48
33
33
13
31
49
49
5
39
39
47
27
40
40
23
23
1
10
46
7
19
19
32
32
29
29
29
28
28
28
28
12
22
22
51
51
42
42
24
24
24
24
41
41
6
18
52
53
38
38
17
50
50
45
45
14
14
11
34
34
1
Non disponible pour ce véhicule
N/A
Not Available
2a
Non disponible pour ce véhicule
N/A
Not Available
2b
Non disponible pour ce véhicule
N/A
Not Available
2c
Non disponible pour ce véhicule
N/A
Not Available
2d
Non disponible pour ce véhicule
N/A
Not Available
3a
IBR ACTUATOR ASS Y
278002606
278003042
1 828,03€ Unit Price incl. VAT
3b
COOLING COVER
278002473
16,20€ Unit Price incl. VAT
3c
O-RING
278002474
5,88€ Unit Price incl. VAT
3d
TORX SCREW STAINLESS M5 X 16.8
278002475
6,84€ Unit Price incl. VAT
4
HEX. SCREW M8 X 60, SCOTCH GRIP
250000187
5,18€ Unit Price incl. VAT
5
FLAT WASHER 8 MM, STAINLESS
234081600
0,66€ Unit Price incl. VAT
6
LH SUPPORT PLATE ASS Y
268000067
27,38€ Unit Price incl. VAT
7
LH FORMED SEAL
268000046
18,53€ Unit Price incl. VAT
8
LH FIXING PLATE ASS Y
268000069
30,50€ Unit Price incl. VAT
9
LH FORMED SEAL
268000055
11,44€ Unit Price incl. VAT
10
RH SUPPORT PLATE ASS Y
268000068
26,96€ Unit Price incl. VAT
11
RH FORMED SEAL
268000047
18,53€ Unit Price incl. VAT
12
RH FIXING PLATE ASS Y
268000070
18,38€ Unit Price incl. VAT
13
RH FORMED SEAL
268000056
11,44€ Unit Price incl. VAT
14
HEX. SCREW M8 X 30, SCOTCH GRIP
207383060
2,22€ Unit Price incl. VAT
15
FLAT WASHER
293050001
1,85€ Unit Price incl. VAT
16
U ARM, BLACK
268000087
67,18€ Unit Price incl. VAT
17
HEX. SCREW M8 X 20, SCOTCH GRIP
207382060
2,26€ Unit Price incl. VAT
18
FLAT WASHER 8 MM, STAINLESS
234081600
0,66€ Unit Price incl. VAT
19
SPACER
268000062
15,89€ Unit Price incl. VAT
20
LINKAGE ARM
268000042
268000145
21,60€ Unit Price incl. VAT
21
BUSHING
268000099
11,06€ Unit Price incl. VAT
22
HEX. SCREW M8 X 45
207084560
3,98€ Unit Price incl. VAT
23
SOCKET HEAD SCREW M8 X 55
205085560
5,18€ Unit Price incl. VAT
24
FLAT WASHER 8 MM, STAINLESS
234081600
0,66€ Unit Price incl. VAT
25
VENTURI BUSHING
271000321
9,58€ Unit Price incl. VAT
26
HEX. ELASTIC NUT M8, BRASS
232581200
1,85€ Unit Price incl. VAT
27
TRIMMING RING, BLACK
268000100
268000155
103,46€ Unit Price incl. VAT
28
VENTURI BUSHING
293900007
6,31€ Unit Price incl. VAT
29
SPACER
268000063
20,10€ Unit Price incl. VAT
30
FLAT WASHER 8 MM, STAINLESS
234082600
2,84€ Unit Price incl. VAT
31
VENTURI BUSHING
293900007
6,31€ Unit Price incl. VAT
32
HEX. SCREW M8 X 70, SCOTCH GRIP
250000506
7,94€ Unit Price incl. VAT
33
FRICTION SLEEVE
268000045
10,94€ Unit Price incl. VAT
34
SOCKET HEAD SCREW M6 X 16, SCOTCH GRIP
205561660
1,96€ Unit Price incl. VAT
35
DIRECTION NOZZLE, BLACK
267000397
267000727
87,00€ Unit Price incl. VAT
36
DIRECTION NOZZLE LEVER, BLACK
268000064
268000148
68,00€ Unit Price incl. VAT
37
DIRECTION LEVER ARM
268000058
15,24€ Unit Price incl. VAT
38
SPACER
268000060
14,32€ Unit Price incl. VAT
39
FLAT WASHER M6, STAINLESS
234062600
0,92€ Unit Price incl. VAT
40
HEX. SCREW M6 X 20, SCOTCH GRIP
207362060
1,62€ Unit Price incl. VAT
41
SOCKET HEAD SCREW M8 X 10, SCOTCH GRIP
211000127
4,66€ Unit Price incl. VAT
42
SPACER
268000060
14,32€ Unit Price incl. VAT
43
BUSHING
268000059
16,54€ Unit Price incl. VAT
44
FLAT WASHER M6, STAINLESS
234062600
0,92€ Unit Price incl. VAT
45
HEX. SCREW M6 X 20, SCOTCH GRIP
207362060
1,62€ Unit Price incl. VAT
46
REVERSE GATE ASS Y
268000048
268000182 , 268000183
Not Available
47
FLAT WASHER M6, STAINLESS
234061600
0,36€ Unit Price incl. VAT
48
SOCKET HEAD SCREW M6 X 16, SCOTCH GRIP
205561660
1,96€ Unit Price incl. VAT
49
SPACER
271001039
18,26€ Unit Price incl. VAT
50
FLAT WASHER 8 MM, STAINLESS
234082600
2,84€ Unit Price incl. VAT
51
HEX. SCREW M8 X 30, SCOTCH GRIP
207383060
2,22€ Unit Price incl. VAT
52
GUARD
268000066
268000162
33,46€ Unit Price incl. VAT
53
HEX. FLANGED SCREW M6.81 X 25, PLASTITE
243162560
2,50€ Unit Price incl. VAT

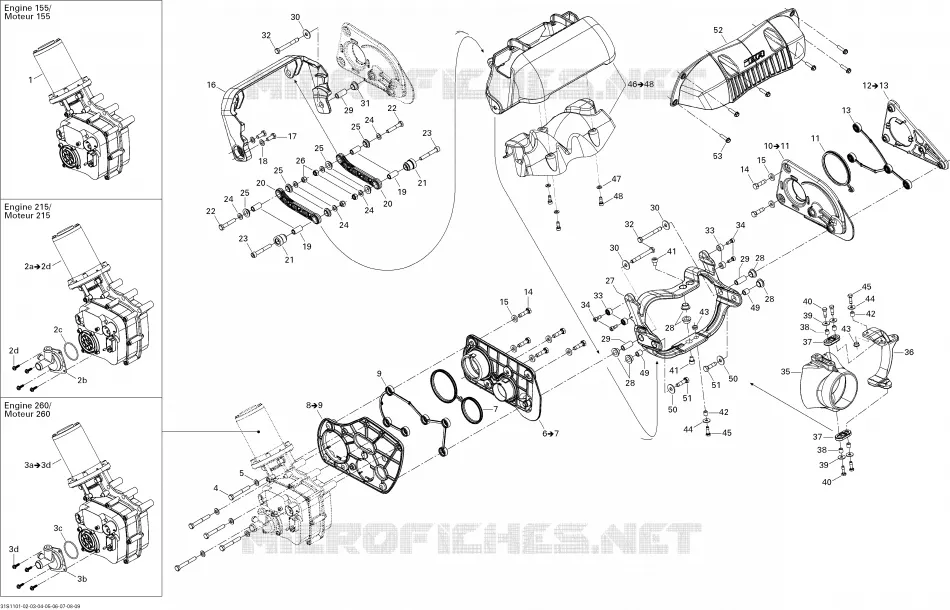

Find the detailed Reverse SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
