HULL EXTENSION AND LADDER FOR SEA-DOO WAKE PRO 230 2020

Decals

(10h) 250000399

HEXAGONAL CAP SCREW M6 X35

(10f) 250000994

TORX-HEAD SCREW M8 X 35

(10l) 269800816

SUPPORT-BILGE

(10j) 270000854

STRAP ANCHOR

(10c) 270000933

STRAP RETAINING

(10g) 270000988

STRAP ANCHOR

(10b) 293150067

RIVET

(10k) 293150186

POP RIVET 3/16

(10d) 293450387

INSERT M8

(20) 293450384

HULL INSERT

(30) 243162060

HEX. FLANGED SCREW M6.81 X 20

(30) 243162060

HEX. FLANGED SCREW M6.81 X 20

(40) 291004907

REINFORCEMENT

(40) 291004907

REINFORCEMENT

(100) 292000933

U-CLAMP

(110) 293050001

WASHER FLAT M8.5 X 18

(130) 250200175

FLAT WASHER 8 MM, STAINLESS

(140) 293830037

RUBBER WASHER

(150) 232581200

HEX. ELASTIC NUT M8 BRASS

(220) 292001953

RH SPONSON

(240) 292001954

LH SPONSON

(360e) 292002022

PLUG ASS'Y

(360) 292002766

HULL DRAIN ASS'Y. INCLUDES 360 TO 360E

(360c) 293830080

FLOATING BALL

(370) 250001007

SCREW TORX M6.81 X 30

(370) 250001007

SCREW TORX M6.81 X 30

(380) 292002153

DRAIN NECK ASS'Y

(390) 250001007

SCREW TORX M6.81 X 30

(400) 293830198

HOSE

(400) 293830198

HOSE

(410) 293710152

FITTING ELBOW 90°

(410) 293710152

FITTING ELBOW 90°

(420) 293750001

TIE-RAP 94 MM

(420) 293750001

TIE-RAP 94 MM

(420) 293750001

TIE-RAP 94 MM

(420) 293750001

TIE-RAP 94 MM

(420) 293750001

TIE-RAP 94 MM

(420) 293750001

TIE-RAP 94 MM

(420) 293750001

TIE-RAP 94 MM

(420) 293750001

TIE-RAP 94 MM

(430) 293750008

TIE-RAP 368 MM

(430) 293750008

TIE-RAP 368 MM

(450) 293150037

AVDEL RIVET 3/16"

(600) 291004769

LOWER ANCHORAGE

(610) 250001007

SCREW TORX M6.81 X 30

(740) 292002011

COOLER FLOAT

(980) 292000933

U-CLAMP

(980) 292000933

U-CLAMP

(990) 293050001

WASHER FLAT M8.5 X 18

(990) 293050001

WASHER FLAT M8.5 X 18

(1010) 293830037

RUBBER WASHER

(1010) 293830037

RUBBER WASHER

(1020) 250200175

FLAT WASHER 8 MM, STAINLESS

(1020) 250200175

FLAT WASHER 8 MM, STAINLESS

(1030) 232581200

HEX. ELASTIC NUT M8 BRASS

(1030) 232581200

HEX. ELASTIC NUT M8 BRASS

(1080a5) 207068060

HEX. SCREW M6 X 80

(1080b) 207068060

HEX. SCREW M6 X 80

(1080a7) 232561600

HEX. ELASTIC STOP NUT M6

(1080d) 232561600

HEX. ELASTIC STOP NUT M6

(1080a6) 234061600

STAINLESS, FLAT WASHER M6

(1080c) 234061600

STAINLESS, FLAT WASHER M6

(1080a3) 292002107

SPRING

(1080a) 295100869

LADDER ASS'Y

(1120) 292002113

LADDER ATTACHMENT

(1120) 292002113

LADDER ATTACHMENT

(1130) 250000924

TRUSS CONE TORX SCREW M6 X 30

(1130) 250000924

TRUSS CONE TORX SCREW M6 X 30

(1130) 250000924

TRUSS CONE TORX SCREW M6 X 30

(1130) 250000924

TRUSS CONE TORX SCREW M6 X 30

(1140) 234061600

STAINLESS, FLAT WASHER M6

(1140) 234061600

STAINLESS, FLAT WASHER M6

(1140) 234061600

STAINLESS, FLAT WASHER M6

(1140) 234061600

STAINLESS, FLAT WASHER M6

(1145) 250200022

FLAT WASHER M6.6 X 22

(1145) 250200022

FLAT WASHER M6.6 X 22

(1145) 250200022

FLAT WASHER M6.6 X 22

(1145) 250200022

FLAT WASHER M6.6 X 22

(1150) 232561200

ELASTIC STOP NUT M6, BRASS

(1150) 232561200

ELASTIC STOP NUT M6, BRASS

(1200) 292002102

LH TRIM TAB

(1205) 250000978

HEXAGONAL CAP SCREW M6 X 25

(1205) 250000978

HEXAGONAL CAP SCREW M6 X 25

(1230) 292002103

RH TRIM TAB

(1240) 250000978

HEXAGONAL CAP SCREW M6 X 25

(1240) 250000978

HEXAGONAL CAP SCREW M6 X 25

(1260) 277002171

GASKET

(1260) 277002171

GASKET

	Part number	Description	Qty
# 10b	293150067	RIVET	2,87 £ (3,32 €)
# 10c	270000933	STRAP RETAINING	6,26 £ (7,24 €)
# 10d	293450363 293450387	INSERT M8	7,21 £ (8,34 €)
# 10f	250000994	TORX-HEAD SCREW M8 X 35	4,22 £ (4,88 €)
# 10g	270000988	STRAP ANCHOR	11,16 £ (12,91 €)
# 10h	250000399	HEXAGONAL CAP SCREW M6 X35	4,22 £ (4,88 €)
# 10j	270000854	STRAP ANCHOR	7,45 £ (8,62 €)
# 10k	293150186	POP RIVET 3/16	2,02 £ (2,34 €)
# 10l	269800816	SUPPORT-BILGE	2,66 £ (3,08 €)
# 20	293450384	HULL INSERT	31,49 £ (36,42 €)
# 30	243162060	HEX. FLANGED SCREW M6.81 X 20	3,56 £ (4,12 €)
# 40	291004907	REINFORCEMENT	2,49 £ (2,88 €)
# 100	292000933	U-CLAMP	107,28 £ (124,08 €)
# 110	293050001	WASHER FLAT M8.5 X 18	2,99 £ (3,46 €)
# 130	250200175	FLAT WASHER 8 MM, STAINLESS	2,90 £ (3,36 €)
# 140	293830037	RUBBER WASHER	2,32 £ (2,68 €)
# 150	232581200	HEX. ELASTIC NUT M8 BRASS	2,14 £ (2,48 €)
# 220	292001953	RH SPONSON	51,08 £ (59,08 €)
# 240	292001954	LH SPONSON	67,43 £ (77,99 €)
# 360	292002097 292002766	HULL DRAIN ASS'Y. INCLUDES 360 TO 360E	13,47 £ (15,58 €)
# 360c	293830080	FLOATING BALL	6,36 £ (7,36 €)
# 360e	292002022	PLUG ASS'Y	12,76 £ (14,76 €)
# 370	250001007	SCREW TORX M6.81 X 30	2,33 £ (2,70 €)
# 380	292002153	DRAIN NECK ASS'Y	12,93 £ (14,95 €)
# 390	250001007	SCREW TORX M6.81 X 30	2,33 £ (2,70 €)
# 400	293830198	HOSE	Contact	0,00 £ (0,00 €)
# 410	293710152	FITTING ELBOW 90°	16,43 £ (19,00 €)
# 420	293750001	TIE-RAP 94 MM	Contact	0,00 £ (0,00 €)
# 430	293750008	TIE-RAP 368 MM	1,00 £ (1,16 €)
# 450	293150037	AVDEL RIVET 3/16"	0,55 £ (0,64 €)
# 600	291004769	LOWER ANCHORAGE	14,07 £ (16,27 €)
# 610	250001007	SCREW TORX M6.81 X 30	2,33 £ (2,70 €)
# 740	292002011	COOLER FLOAT	31,49 £ (36,42 €)
# 980	292000933	U-CLAMP	107,28 £ (124,08 €)
# 990	293050001	WASHER FLAT M8.5 X 18	2,99 £ (3,46 €)
# 1010	293830037	RUBBER WASHER	2,32 £ (2,68 €)
# 1020	250200175	FLAT WASHER 8 MM, STAINLESS	2,90 £ (3,36 €)
# 1030	232581200	HEX. ELASTIC NUT M8 BRASS	2,14 £ (2,48 €)

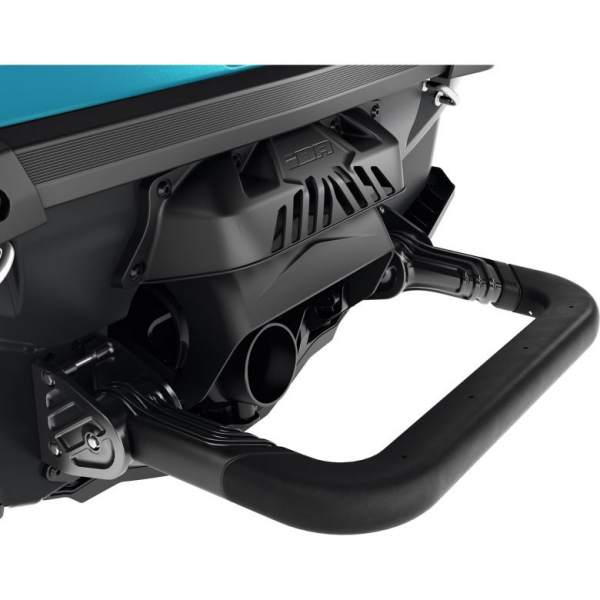

# 1080a	295100869	LADDER ASS'Y	239,09 £ (276,54 €)
# 1080a3	292002107	SPRING	23,81 £ (27,54 €)
# 1080a5	207068060	HEX. SCREW M6 X 80	2,32 £ (2,68 €)
# 1080a6	234061600	STAINLESS, FLAT WASHER M6	0,32 £ (0,37 €)
# 1080a7	232561600	HEX. ELASTIC STOP NUT M6	1,09 £ (1,26 €)
# 1080b	207068060	HEX. SCREW M6 X 80	2,32 £ (2,68 €)
# 1080c	234061600	STAINLESS, FLAT WASHER M6	0,32 £ (0,37 €)
# 1080d	232561600	HEX. ELASTIC STOP NUT M6	1,09 £ (1,26 €)
# 1120	292002113	LADDER ATTACHMENT	7,44 £ (8,60 €)
# 1130	250000924	TRUSS CONE TORX SCREW M6 X 30	7,19 £ (8,32 €)
# 1140	234061600	STAINLESS, FLAT WASHER M6	0,32 £ (0,37 €)
# 1145	250200022	FLAT WASHER M6.6 X 22	2,37 £ (2,74 €)
# 1150	232561200	ELASTIC STOP NUT M6, BRASS	4,12 £ (4,76 €)
# 1200	292002102	LH TRIM TAB	18,71 £ (21,64 €)
# 1205	250000978	HEXAGONAL CAP SCREW M6 X 25	4,22 £ (4,88 €)
# 1230	292002103	RH TRIM TAB	18,71 £ (21,64 €)
# 1240	250000978	HEXAGONAL CAP SCREW M6 X 25	4,22 £ (4,88 €)
# 1260	277002064 277002171	GASKET	4,06 £ (4,70 €)

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Sea-Doo. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the Hull Extension and Ladder of your Sea-Doo WAKE PRO 230 of 2020. Let us know if you have any questions.
