Rear Electrical Box for Sea-Doo GSX LIMITED 5625 from 1998

SUPPORT BATT. *SUPPORT-BATT.

278001174

278001580

13,84€ Unit Price incl. VAT

BASE BOITE ELEC*BASE-BOX ELECT

278001171

278001425

40,88€ Unit Price incl. VAT

Ground Plate

278000732

Not Available

BOBINE ALLUMAGE*COIL-IGNITION

278001188

116,00€ Unit Price incl. VAT

O-RING

293300040

6,16€ Unit Price incl. VAT

GASKET

278001173

13,80€ Unit Price incl. VAT

JOINT ETANCHE *GASKET

293200030

3,86€ Unit Price incl. VAT

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

WASHER-LOCK HELICAL DIN.127B-A2

217361500

234161601

1,32€ Unit Price incl. VAT

SCREW-HEX.CAP DIN.933A2

210000004

207162060

1,48€ Unit Price incl. VAT

Not Available As Spare Parts

XXX

Not Available

SEALING CAP

293000052

3,66€ Unit Price incl. VAT

WASHER-FLAT DIN.9021B-A2(M6)

213200007

234062600

0,92€ Unit Price incl. VAT

LUBRIFIANT - DEOXIT, 250 ML

293800015

293800060

25,72€ Unit Price incl. VAT

PASSE-FILS NOIR*GROMMET-BLACK

278000682

6,49€ Unit Price incl. VAT

STARTER RELAY

278000513

278003012

50,32€ Unit Price incl. VAT

NUT-STOP ELASTIC DIN.985-A2(M6)

212000001

232561600

1,32€ Unit Price incl. VAT

SCREW-FORMING HEX.HD.FL.DIN.7500D

211000035

210261040

1,66€ Unit Price incl. VAT

SCREW-TAPP.HEX.DIN.7976C

215462550

209462540

1,40€ Unit Price incl. VAT

WRAP_TIE 101 X 2.5

293750001

1,18€ Unit Price incl. VAT

Bouchon électrique

278000100

Not Available

CABLAGE BOITE *HARNESS-BOX

278001184

135,43€ Unit Price incl. VAT

HOUSING-TAB

270000137

710001539

22,34€ Unit Price incl. VAT

FEMALE LOCK, 6 CIRCUITS

278000735

3,66€ Unit Price incl. VAT

MALE TERMINAL

278000631

5,00€ Unit Price incl. VAT

MALE TERMINAL

278000230

5,00€ Unit Price incl. VAT

TUBING

278001008

3,88€ Unit Price incl. VAT

CABLAGE FUSIBLE*HARNESS-FUSE

278001212

43,63€ Unit Price incl. VAT

RING TERMINAL

278000300

3,68€ Unit Price incl. VAT

FUSE, 15 AMPERES

278000343

3,90€ Unit Price incl. VAT

FEMALE TERMINAL

278001009

3,66€ Unit Price incl. VAT

TUBING

278001007

4,26€ Unit Price incl. VAT

COUVERCLE BOITE*COVER-BOX ELEC

278001172

278001433

68,99€ Unit Price incl. VAT

WASHER-FLAT DIN.125A-A2(M6)

213200001

234061600

0,36€ Unit Price incl. VAT

WRAP_TIE 371 X 4.6

293750008

1,20€ Unit Price incl. VAT

GROUND HARNESS

278000664

9,96€ Unit Price incl. VAT

FEMALE TERMINAL

278000228

2,52€ Unit Price incl. VAT

RING TERMINAL

278000300

3,68€ Unit Price incl. VAT

BATTERY YUASA YB16CL-B

278000712

278001756

162,47€ Unit Price incl. VAT

FLAT WASHER 6 MM

211200018

1,78€ Unit Price incl. VAT

BATTERY SCREW

211000045

207161644

0,88€ Unit Price incl. VAT

BATTERY NUT M6

211100022

232061414

0,64€ Unit Price incl. VAT

RUBBER STRAP

293850021

293850097

13,14€ Unit Price incl. VAT

TERMINAL_FEMALE

278000992

2,58€ Unit Price incl. VAT

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

Câble de démarreur (rouge). Inclus 46 - 49.

278001183

Not Available

Bouchon électrique

278000100

Not Available

GROMMET

278000098

6,49€ Unit Price incl. VAT

FEMALE TERMINAL

278001114

3,66€ Unit Price incl. VAT

BATTERY LOWER PAD

278000776

278001976

32,14€ Unit Price incl. VAT

Fil de masse-batterie

278001189

Not Available

SPARK PLUG NGK BR8ES

278000609

219703119

5,74€ Unit Price incl. VAT

NUT-STOP ELASTIC DIN.985-A2(M6)

212000001

232561600

1,32€ Unit Price incl. VAT

TEMPERATURE SENSOR

278001016

278002895

45,66€ Unit Price incl. VAT

ADHESIVE LOCTITE 518

293800038

59,28€ Unit Price incl. VAT

SPARK PLUG WIRE

278002198

15,42€ Unit Price incl. VAT

Spark Plug Wire 530 (MAG)

278000322

Not Available

PROTECTION CAP

278000020

7,02€ Unit Price incl. VAT

Câble de batterie (rouge). Inclus 56 - 59.

278001185

Not Available

Bouchon électrique

278000100

Not Available

GROMMET

278000098

6,49€ Unit Price incl. VAT

PROTECTION CAP

278000020

7,02€ Unit Price incl. VAT

SPARK PLUG CAP

278000237

19,68€ Unit Price incl. VAT

Graisse diélectrique, 150 g

293550004

Not Available

CONNECTOR_FEMALE 2 CAVITIES

278001113

19,79€ Unit Price incl. VAT

SUPP.BOITE ASS.*SUPP-BOX ASSY.

278001169

278001418

66,72€ Unit Price incl. VAT

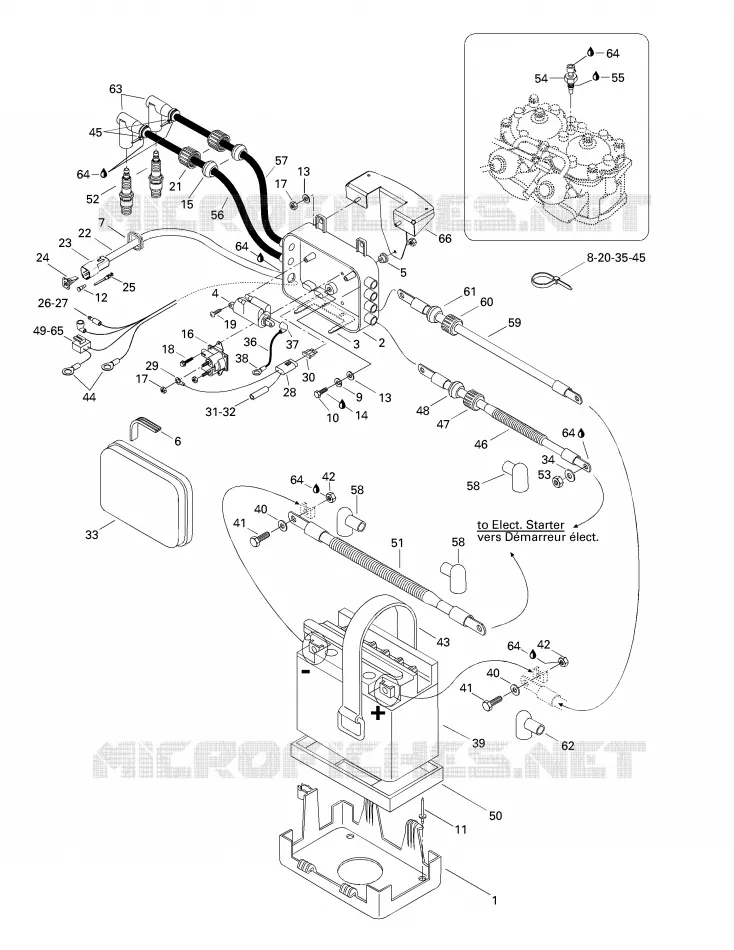

Find the detailed Rear Electrical Box SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
