Crankcase, Rotary Valve for Sea-Doo GSX LIMITED 5625 from 1998

ENGINE SHORT BLOC 947

295500658

205004060 , 205582560 , 207004060 , 234002600 , 234101601 , 234151601 , 274000636 , 274000679 , 293050001 , 421000562

Not Available

Carter ass. «947» (blanc). Inclus 1 - 7.

290887751

Not Available

VIS HEX.FLASQUE*SCREW-HEX.FLAN

290941333

420941333

15,43€ Unit Price incl. VAT

FLANGE SCREW M8 X 45

290940638

6,04€ Unit Price incl. VAT

PIN M8 X 12

290632010

420632010

4,68€ Unit Price incl. VAT

CHECK VALVE

420956510

420956511

41,00€ Unit Price incl. VAT

SEALING RING

420950141

2,36€ Unit Price incl. VAT

ALLEN SCREW M8 X 16

290440193

2,39€ Unit Price incl. VAT

O-RING

290230300

420230300

9,24€ Unit Price incl. VAT

COUVERCLE *COVER

290811200

420811200

13,84€ Unit Price incl. VAT

REED VALVE ASS Y

290924602

138,76€ Unit Price incl. VAT

Lame pédale

290924610

Not Available

Arrêt lame pédale

290924615

Not Available

PHILLIPS SCREW M3 X 5

420941215

1,88€ Unit Price incl. VAT

ADAP.CARB *ADAP-CARB.

290867833

420867833

68,57€ Unit Price incl. VAT

SCREW-HEX.FLANGE DIN.6921

290240033

420240033

6,35€ Unit Price incl. VAT

NEEDLE BUSHING

290232480

420232482

24,32€ Unit Price incl. VAT

STARTER DRIVE ASS Y

290888040

420888042

409,01€ Unit Price incl. VAT

SPRING

290938204

420938204

9,12€ Unit Price incl. VAT

COUVERCLE LANC.*COVER-DRIVE ST

290811210

19,44€ Unit Price incl. VAT

SPRING WASHER

290845020

420845020

1,26€ Unit Price incl. VAT

ALLEN SCREW M6 X 22

290840401

420840403

1,66€ Unit Price incl. VAT

WIRE SUPPORT

290953330

3,60€ Unit Price incl. VAT

LOCTITE 648, 10 ML

413711400

219703000

54,18€ Unit Price incl. VAT

LOCTITE 242, 10 CC

413703000

293800060

25,72€ Unit Price incl. VAT

Enduit étanche, 100 gr

413707100

Not Available

LUBRIFIANT DOW CORNING 111 150G

413707000

71,81€ Unit Price incl. VAT

Engine Gasket Set (Not Shown). .

290888130

Not Available

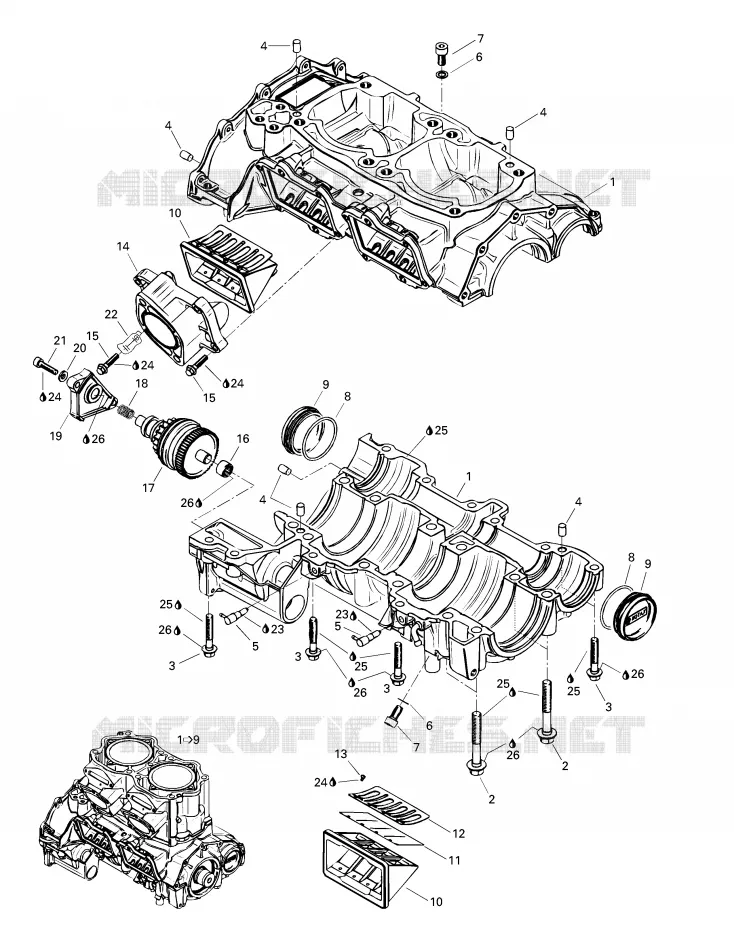

Find the detailed Crankcase, Rotary Valve SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
