Steering System STD for Sea-Doo GTI RFI STANDARD ( FUEL INJECTION ) from 2005

TIGE DIRECTION *STEM-STEERING

277000562400

85,72€ Unit Price incl. VAT

STEERING CLAMP

277000142

10,48€ Unit Price incl. VAT

HEX. SCREW M8 X 50

207085060

2,22€ Unit Price incl. VAT

HEX. ELASTIC NUT M8

232581600

1,66€ Unit Price incl. VAT

HANDLE BAR

277001450

136,01€ Unit Price incl. VAT

HEX. SCREW M6 X 30

207063060

2,16€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

HANDLE BAR PAD, BRIGHT YELLOW

277001366

83,15€ Unit Price incl. VAT

HANDLE BAR PAD SUPPORT

277000687

14,99€ Unit Price incl. VAT

HEX. FLANGED SCREW 1/4"-20 X 1/2"

211000036

1,84€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

PLATE

277000549

17,09€ Unit Price incl. VAT

LH HANDLE HOUSING ASS Y

277000869

31,76€ Unit Price incl. VAT

SWITCH KNOB

277000306

7,68€ Unit Price incl. VAT

SQUARE NUT M6

232860600

1,80€ Unit Price incl. VAT

PHILLIPS SCREW M3.9 X 9.5

209630960

1,04€ Unit Price incl. VAT

SOCKET HEAD SCREW M6 X 16

250000036

10,36€ Unit Price incl. VAT

RETAINER PLATE

277000845

3,60€ Unit Price incl. VAT

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2

209631360

1,20€ Unit Price incl. VAT

THROTTLE HOUSING ASS Y

277000872

25,72€ Unit Price incl. VAT

THROTTLE HANDLE

277001107

277001485

17,28€ Unit Price incl. VAT

SQUARE NUT M6

232860600

1,80€ Unit Price incl. VAT

277000381

1,84€ Unit Price incl. VAT

INSERT

293450153

9,76€ Unit Price incl. VAT

FLAT WASHER M5, STAINLESS

234051600

0,92€ Unit Price incl. VAT

HANDLE GRIP INSERT

277000554

277001863

10,08€ Unit Price incl. VAT

HANDLE GRIP, SLATE GREY

277001336

21,46€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

HEX. SCREW M6 X 30, SCOTCH GRIP

250000002

1,08€ Unit Price incl. VAT

CAP, BLACK

277000203

10,72€ Unit Price incl. VAT

UPPER STEERING COVER, BLACK

277001393

96,86€ Unit Price incl. VAT

STEERING COVER PLATE

277001394

21,17€ Unit Price incl. VAT

Non disponible pour ce véhicule

n/a

Not Available

Non disponible pour ce véhicule

n/a

Not Available

Non disponible pour ce véhicule

n/a

Not Available

Non disponible pour ce véhicule

n/a

Not Available

LOWER STEERING COVER

277000808

96,00€ Unit Price incl. VAT

FLAT WASHER M5, STAINLESS

234051600

0,92€ Unit Price incl. VAT

HEX. FLANGED PT SCREW K40 X 16

241141660

1,66€ Unit Price incl. VAT

STEERING STEM ARM

277000518

277001472

42,37€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

ARM THRUST

277000519

16,00€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

HEX. SCREW M6 X 25

207162560

1,62€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

HEX. SCREW M6 X 30

211000081

4,24€ Unit Price incl. VAT

BALL JOINT

277001180

42,60€ Unit Price incl. VAT

STEERING CABLE

277001322

277001580

233,00€ Unit Price incl. VAT

AJUSTMENT KNOB

277000782

25,44€ Unit Price incl. VAT

HEX. NUT 1/4"-28

211100056

0,80€ Unit Price incl. VAT

TERMINAL WIPER

277000441

13,82€ Unit Price incl. VAT

RUBBER WASHER

293830063

2,14€ Unit Price incl. VAT

HALF-RING

277000783

277001527

11,86€ Unit Price incl. VAT

STEERING CABLE LOCK

277000784

277001729

14,78€ Unit Price incl. VAT

TERMINAL WIPER

277000441

13,82€ Unit Price incl. VAT

HEX. NUT 1/4"-28

211100056

0,80€ Unit Price incl. VAT

BALL JOINT

277000775

61,00€ Unit Price incl. VAT

HEX. SCREW M6 X 35

207063560

2,44€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

SUPPORT THRUST

277000162

277001528

9,40€ Unit Price incl. VAT

HEX. SCREW M6 X 50

207065060

2,44€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

CABLE SUPPORT

277000516

31,78€ Unit Price incl. VAT

M6 NUT HOUSING ASS Y

269500252

9,36€ Unit Price incl. VAT

HEX. NUT M6

232061600

1,30€ Unit Price incl. VAT

FLAT WASHER 10 MM, STAINLESS

234002600

2,44€ Unit Price incl. VAT

STEERING SUPPORT

277000515

322,84€ Unit Price incl. VAT

NUT HOUSING ASS Y

271000598

11,78€ Unit Price incl. VAT

HEX. ELASTIC NUT M10

232501600

2,08€ Unit Price incl. VAT

SYNTHETIC GREASE, 400 G

293550010

9779702

27,96€ Unit Price incl. VAT

HEX. JAM NUT M10

232100600

2,44€ Unit Price incl. VAT

LATCH STUD

291000689

34,99€ Unit Price incl. VAT

HEX. FORMING SCREW M6 X 20

207162060

1,48€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

STEERING SUPPORT

277001000

22,00€ Unit Price incl. VAT

HEX. ELASTIC NUT M8

232581600

1,66€ Unit Price incl. VAT

FLAT WASHER 8 MM, STAINLESS

234081600

0,66€ Unit Price incl. VAT

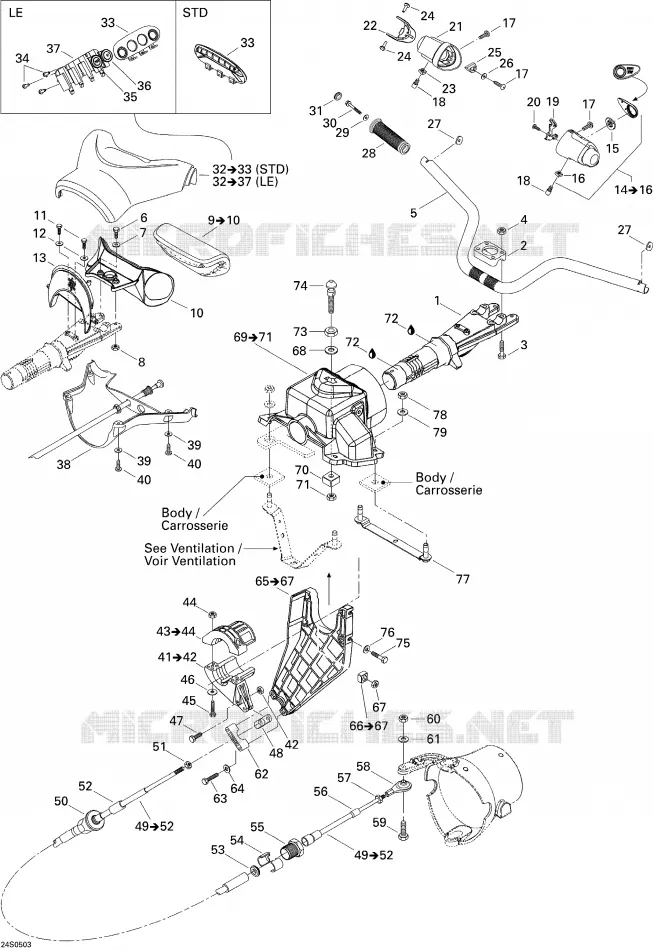

Find the detailed Steering System STD SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
