Electrical System for Sea-Doo GTI RFI STANDARD ( FUEL INJECTION ) from 2005

ECM, ENGINE CONTROL MODULE

420665226

1 028,59€ Unit Price incl. VAT

MODULES SUPPORT

278002009

58,28€ Unit Price incl. VAT

HEX. SCREW 10-14 X 7/8

211000023

4,18€ Unit Price incl. VAT

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

WASHER-LOCK IMPERIAL

211200043

1,20€ Unit Price incl. VAT

HEX. SCREW M6 X 12, SCOTCH GRIP

207361260

0,70€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234062600

0,92€ Unit Price incl. VAT

REGULATOR

278001969

230,48€ Unit Price incl. VAT

CONNECTOR_FEMALE 3 CAVITIES

409207400

278002375

36,44€ Unit Price incl. VAT

FEMALE TERMINAL

278000632

2,42€ Unit Price incl. VAT

MALE HOUSING, 2 CIRCUITS

409206900

10,90€ Unit Price incl. VAT

FEMALE TERMINAL

515175567

8,78€ Unit Price incl. VAT

SCREW HEX. M6 X 35, SCOTCH GRIP

207363560

2,16€ Unit Price incl. VAT

RELAY STARTER

278001802

278003012

50,32€ Unit Price incl. VAT

VCM ELECTRONIC MODULE

278001988

583,78€ Unit Price incl. VAT

FUSE COVER

278002102

43,34€ Unit Price incl. VAT

STICKER

278002103

16,96€ Unit Price incl. VAT

BATTERY YUASA YB16CL-B

278001756

162,47€ Unit Price incl. VAT

HEX. SCREW M6 X 16

207161644

0,88€ Unit Price incl. VAT

FLAT WASHER 6 MM

211200018

1,78€ Unit Price incl. VAT

HEX. NUT M6

232061414

0,64€ Unit Price incl. VAT

LOWER BATTERY PAD

278001976

32,14€ Unit Price incl. VAT

BATTERY SUPPORT

278001972

13,84€ Unit Price incl. VAT

RETAINER STRAP

293850097

13,14€ Unit Price incl. VAT

RIVET_AVEX 4,8 X 18.7

293150037

0,68€ Unit Price incl. VAT

GROMMET

293720029

1,76€ Unit Price incl. VAT

CHECK VALVE

275500499

20,72€ Unit Price incl. VAT

HOSE 6 MM

275500446

7,36€ Unit Price incl. VAT

WRAP_TIE 101 X 2.5

293750001

1,18€ Unit Price incl. VAT

MODULE PROTECTOR

278002077

16,85€ Unit Price incl. VAT

MOUNT DART

293730018

293730040

1,24€ Unit Price incl. VAT

IGNITION COIL ASSY

278001545

341,00€ Unit Price incl. VAT

IGNITION COIL

278001546

186,00€ Unit Price incl. VAT

CONNECTOR_FEMALE 1 CAVITY

278000161

10,90€ Unit Price incl. VAT

MALE TERMINAL

409004300

6,62€ Unit Price incl. VAT

WIRE SEAL

278000218

5,00€ Unit Price incl. VAT

Cosse à anneau

409003200

Not Available

SOCKET HEAD SCREW M6 X 20

205062044

1,40€ Unit Price incl. VAT

EXTERNAL TOOTH LOCK WASHER

394001900

0,22€ Unit Price incl. VAT

NUT-STOP ELASTIC DIN.985

232561414

0,66€ Unit Price incl. VAT

SEALANT LOCTITE 271

293800005

31,50€ Unit Price incl. VAT

SPARK PLUG WIRE, 270 MM

278001464

34,55€ Unit Price incl. VAT

SPARK PLUG WIRE

278001465

34,55€ Unit Price incl. VAT

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

SPARK PLUG CAP

278000237

19,68€ Unit Price incl. VAT

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

Vis 6.3 x 32

209663260

Not Available

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

CLIP

278001873

5,44€ Unit Price incl. VAT

TAPTITE SCREW M6 X 25

420841543

6,49€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

LUBRICANT LOCTITE LB 8150

293800070

28,45€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

WRAP_TIE 101 X 2.5

293750001

1,18€ Unit Price incl. VAT

WRAP_TIE 142 X 3.2

293750002

1,38€ Unit Price incl. VAT

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

WRAP_TIE 371 X 4.6

293750008

1,20€ Unit Price incl. VAT

GROUND WIRE

278002092

15,65€ Unit Price incl. VAT

BATTERY GROUND CABLE

278001973

25,78€ Unit Price incl. VAT

HEX. SCREW M8 X 20, SCOTCH GRIP

207382060

2,26€ Unit Price incl. VAT

FLAT WASHER 8 MM, STAINLESS

234081600

0,66€ Unit Price incl. VAT

STARTER CABLE

278002060

54,00€ Unit Price incl. VAT

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

Graisse diélectrique, 150 g

293550004

Not Available

HEX. SCREW M6 X 16, SCOTCH GRIP

207361660

1,30€ Unit Price incl. VAT

FLAT WASHER M6, STAINLESS

234061600

0,36€ Unit Price incl. VAT

3 WIRE SUPPORT

278000245

5,44€ Unit Price incl. VAT

COLLAR SUPPORT

278001096

8,12€ Unit Price incl. VAT

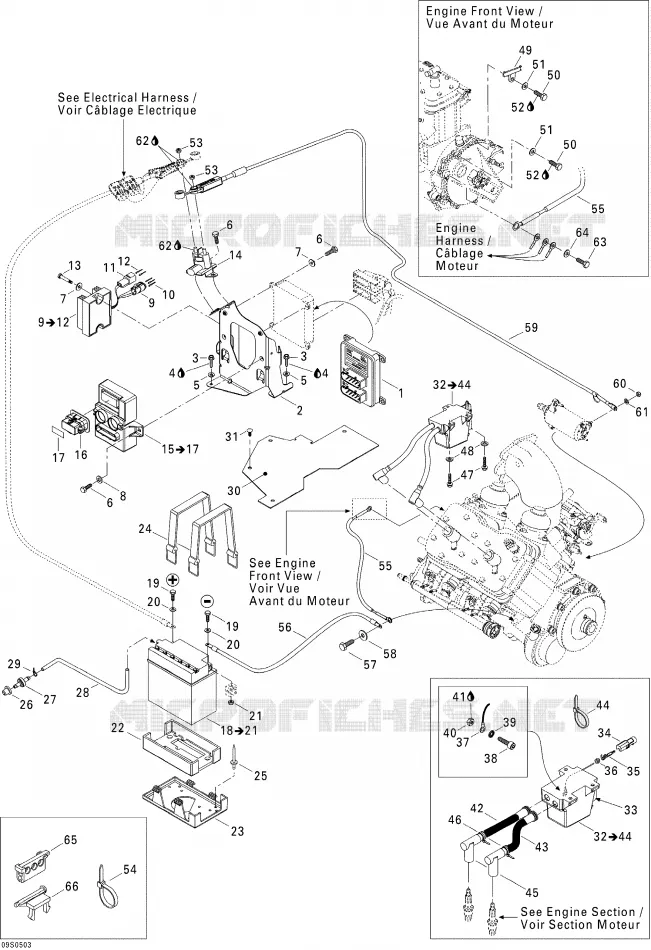

Find the detailed Electrical System SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
