Model
GTX
2
Year
2017
3
Trim
GTX
4
Parts Catalog
Cylinder Head - 155 Model With Suspension
5

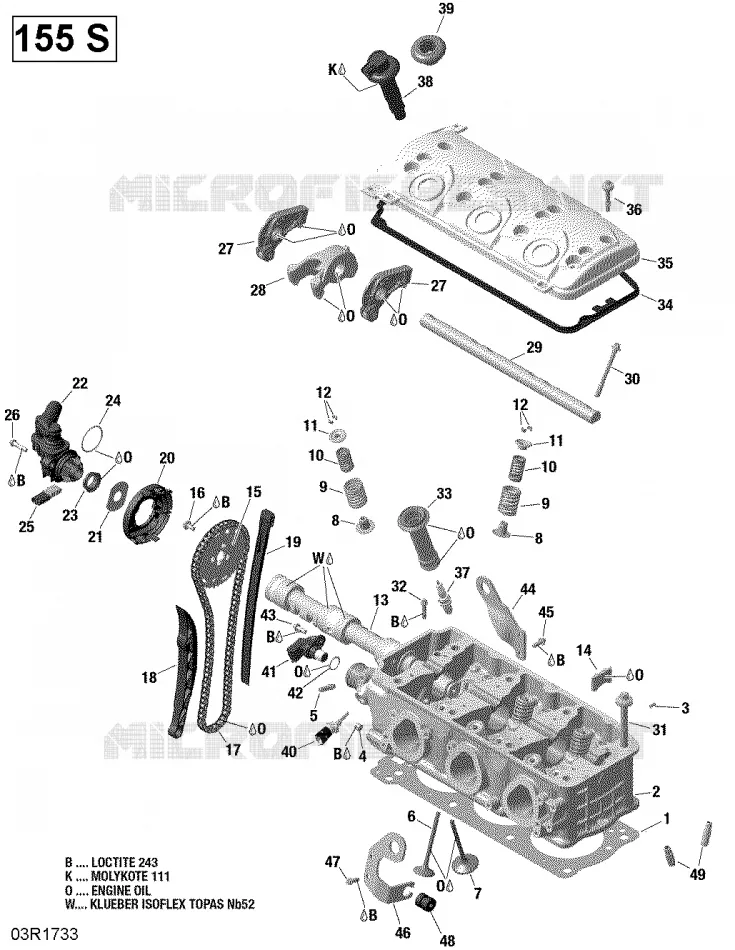

Parts Diagram
Parts Catalog
Crankshaft, Pistons And Balance Shaft - 155 Model With Suspension
by
Engine Block - 155 Model With Suspension
Cylinder Head - 155 Model With Suspension
29
26
8
33
35
15
14
1
49
46
4
3
47
44
36
12
12
37
34
5
24
18
13
11
11
39
30
43
17
32
9
19
42
25
23
40
6
45
7
28
27
27
20
48
16
21
10
10
38
31
1
CYLINDER HEAD GASKET
420950771
145,01€ Unit Price incl. VAT
2>5
CYLINDER HEAD ASS Y
420613978
907,40€ Unit Price incl. VAT
3
DRIVE PIN 5 X 10
420929650
1,92€ Unit Price incl. VAT
4
PLUG SCREW M10 X 1
420641323
16,46€ Unit Price incl. VAT
5
HOSE NIPPLE
420924724
17,62€ Unit Price incl. VAT
6
EXHAUST VALVE, 31 MM
420254682
121,01€ Unit Price incl. VAT
7
INTAKE VALVE, 38 MM
420254294
420253163
48,46€ Unit Price incl. VAT
8
VALVE STEM SEAL
420630202
9,42€ Unit Price incl. VAT
9
VALVE SPRING
420238180
18,62€ Unit Price incl. VAT
10
VALVE SPRING INSIDE
420838280
14,02€ Unit Price incl. VAT
11
VALVE SPRING RETAINER
420254283
10,10€ Unit Price incl. VAT
12
VALVE COTTER
420253645
8,76€ Unit Price incl. VAT
13
CAMSHAFT
420837851
420637783
1 026,02€ Unit Price incl. VAT
14
CAMSHAFT GUIDE
420851694
38,20€ Unit Price incl. VAT
15
TIMING GEAR, 38 TEETH
420254309
83,00€ Unit Price incl. VAT
16
VIS HEXALOB.EPA*TORX FLANGE SCREW
420841080
5,28€ Unit Price incl. VAT
17
CAMSHAFT CHAIN
420898042
115,01€ Unit Price incl. VAT
18
CHAIN TENSION GUIDE
420236541
18,62€ Unit Price incl. VAT
19
CHAIN GUIDE
420236501
16,46€ Unit Price incl. VAT
20
COVER
420660037
27,94€ Unit Price incl. VAT
21
THRUST WASHER
420627494
8,76€ Unit Price incl. VAT
22>25
VENT VALVE ASS Y
420856504
126,00€ Unit Price incl. VAT
23
V-RING
420630125
13,44€ Unit Price incl. VAT
24
O-RING
420950870
6,32€ Unit Price incl. VAT
25
TOPS SWITCH
420665951
48,70€ Unit Price incl. VAT
26
FLANGED TORX SCREW M6 X 25
420641238
3,84€ Unit Price incl. VAT
27
ROCKER ARM, EXHAUST
420254329
162,00€ Unit Price incl. VAT
28
ROCKER ARM, INNER
420254316
213,00€ Unit Price incl. VAT
29
ROCKER ARM, SHAFT
420854594
232,01€ Unit Price incl. VAT
30
TORX SCREW M8 X 72
420641080
5,82€ Unit Price incl. VAT
31
TORX FLANGED SCREW M11 X 147
420641110
13,50€ Unit Price incl. VAT
32
FLANGED TORX SCREW M6 X 25
420641238
3,84€ Unit Price incl. VAT
33
SPARK PLUG PIPE
420851751
420851754
32,60€ Unit Price incl. VAT
34
VALVE COVER GASKET
420950820
39,14€ Unit Price incl. VAT
35
VALVE COVER
420811589
173,00€ Unit Price incl. VAT
36
TORX SCREW M6 X 30.5
420440560
420440561
5,26€ Unit Price incl. VAT
37
SPARK PLUG NGK DCPR8E
707000246
715900637
9,56€ Unit Price incl. VAT
38
IGNITION COIL KIT
296000307
124,01€ Unit Price incl. VAT
39
SEALING CUP
420460830
25,34€ Unit Price incl. VAT
40
TEMPERATURE SENSOR
278002895
45,66€ Unit Price incl. VAT
41>42
CAMSHAFT POSITION SENSOR ASS Y
420664045
420664046
102,00€ Unit Price incl. VAT
42
O-RING
420631890
6,08€ Unit Price incl. VAT
43
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
44
TRANSPORT BRACKET PTO
420851618
31,44€ Unit Price incl. VAT
45
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
46
TRANSPORT BRACKET FRONT
420951380
23,60€ Unit Price incl. VAT
47
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
48
RUBBER BRACKET
420660090
4,84€ Unit Price incl. VAT
49
VALVE GUIDE
420253929
54,06€ Unit Price incl. VAT
