Parts Catalog
Engine Lubrication - 130-155 Model Without Suspension
5

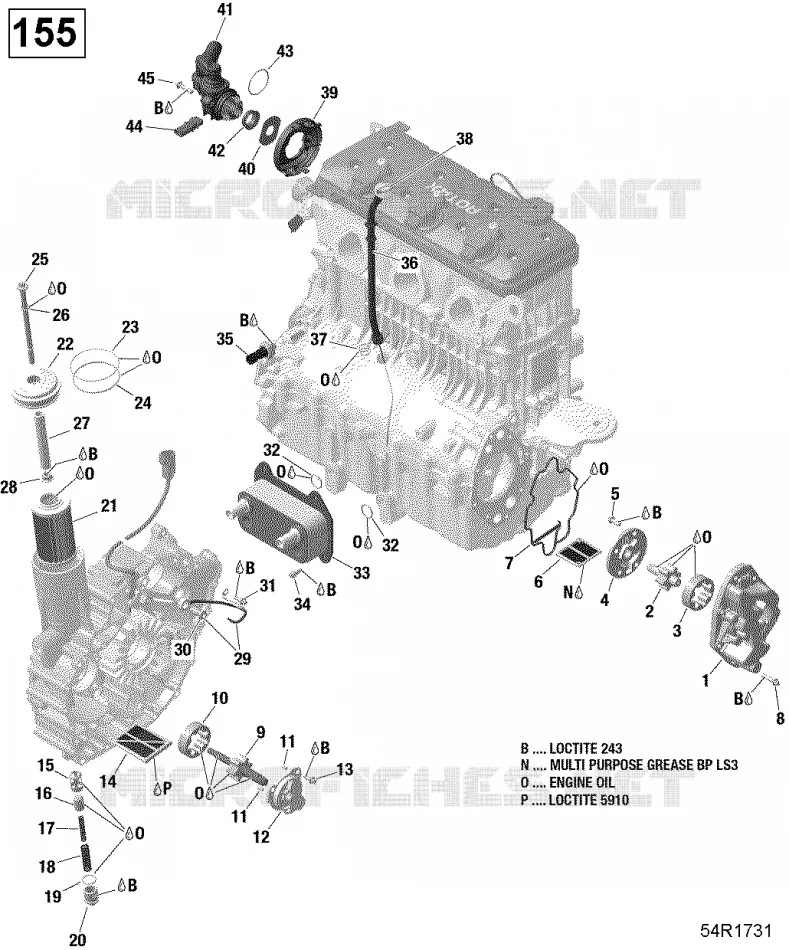

Parts Diagram
Parts Catalog
Engine Cooling - 130-155 Model Without Suspension
by
Valve Train - 130-155 Model Without Suspension
Engine Lubrication - 130-155 Model Without Suspension
32
32
39
43
10
22
14
28
21
9
24
38
26
8
35
23
11
11
33
1
25
15
4
30
2
6
18
7
31
37
19
16
3
34
13
44
40
5
27
42
17
20
12
45
1
OIL PUMP HOUSING
420812725
420812726
134,00€ Unit Price incl. VAT
2
OIL PUMP SHAFT
420837543
71,00€ Unit Price incl. VAT
3
OIL PUMP ROTOR 16 MM
420956675
41,92€ Unit Price incl. VAT
4
OIL PUMP COVER
420811850
420811851
39,14€ Unit Price incl. VAT
5
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
6
OIL SIEVE
420856520
30,42€ Unit Price incl. VAT
7
GASKET
420631486
12,30€ Unit Price incl. VAT
8
FLANGED TORX SCREW M6 X 25
420641238
3,84€ Unit Price incl. VAT
9
PUMP SHAFT ASS Y
420837472
65,00€ Unit Price incl. VAT
10
OIL PUMP ROTOR 16 MM
420956675
41,92€ Unit Price incl. VAT
11
NEEDLE PIN
420929070
2,24€ Unit Price incl. VAT
12
OIL PUMP COVER
420811590
420811591
42,86€ Unit Price incl. VAT
13
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
14
OIL SIEVE
420956950
19,33€ Unit Price incl. VAT
15
VALVE SEAT SLEEVE
420256606
34,46€ Unit Price incl. VAT
16
PISTON VALVE
420256630
420256638
26,42€ Unit Price incl. VAT
17
COMPRESSION SPRING
420939401
16,91€ Unit Price incl. VAT
18
COMPRESSION SPRING
420939211
10,28€ Unit Price incl. VAT
19
O-RING
420230890
6,32€ Unit Price incl. VAT
20
PLUG SCREW M20 X 1.5
420641052
44,72€ Unit Price incl. VAT
21
OIL FILTER
420956741
15,82€ Unit Price incl. VAT
22
OIL FILTER COVER
420612080
420612081
13,06€ Unit Price incl. VAT
23
O-RING
420850500
3,76€ Unit Price incl. VAT
24
O-RING
420230920
420230923
3,72€ Unit Price incl. VAT
25
HEX. SCREW M8 X 140.5
420641103
420641104
16,08€ Unit Price incl. VAT
26
O-RING
420950860
4,58€ Unit Price incl. VAT
27
SPACER
420857229
24,32€ Unit Price incl. VAT
28
HEX. NUT M8
420842610
15,92€ Unit Price incl. VAT
29>30
GICLEUR D HUILE ASS Y
420856877
67,00€ Unit Price incl. VAT
30
BANJO SCREW
420840181
16,98€ Unit Price incl. VAT
31
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
32
O-RING
420250055
420250057
5,00€ Unit Price incl. VAT
33
OIL RADIATOR
420888852
420888877
380,00€ Unit Price incl. VAT
34
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
35
OIL PRESSURE SWITCH
420256916
420256919
56,82€ Unit Price incl. VAT
36>37
OIL LEVEL TUBE
420956944
137,00€ Unit Price incl. VAT
37
O-RING
420950810
17,62€ Unit Price incl. VAT
38
OIL LEVEL GAUGE
420956933
30,74€ Unit Price incl. VAT
39
COVER
420660037
27,94€ Unit Price incl. VAT
40
THRUST WASHER
420627494
8,76€ Unit Price incl. VAT
41>44
VENT VALVE ASS Y
420856504
126,00€ Unit Price incl. VAT
42
V-RING
420630125
13,44€ Unit Price incl. VAT
43
O-RING
420950870
6,32€ Unit Price incl. VAT
44
TOPS SWITCH
420665951
48,70€ Unit Price incl. VAT
45
FLANGED TORX SCREW M6 X 25
420641238
3,84€ Unit Price incl. VAT
