Parts Catalog
PTO Cover And Magneto - 230
5

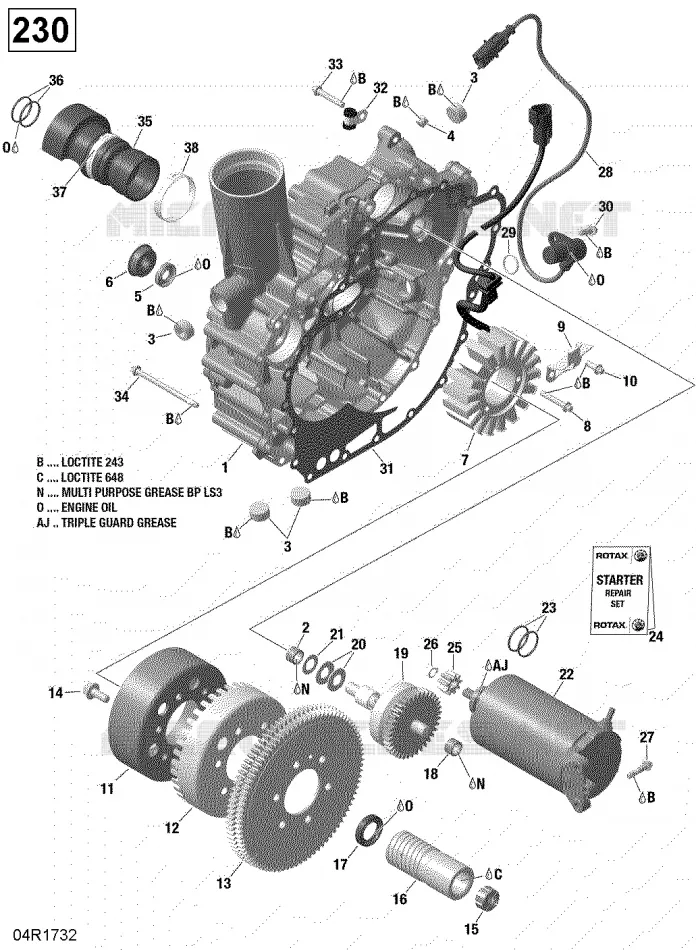

Parts Diagram
Parts Catalog
PTO Cover And Magneto - 300
by
PTO Cover And Magneto - 130-155 Model Without Suspension
PTO Cover And Magneto - 230
29
8
17
16
15
12
25
31
7
26
23
3
3
3
30
13
24
24
9
11
19
4
37
6
2
36
20
33
27
14
38
21
5
10
32
18
1>6
TIMING/DRIVE COVER ASS Y
420910521
420481440
821,02€ Unit Price incl. VAT
2
BEARING NEEDLE
420232482
24,32€ Unit Price incl. VAT
3
PLUG SCREW M20 X 1.5
420641317
16,56€ Unit Price incl. VAT
4
PLUG SCREW M10 X 1
420641323
16,46€ Unit Price incl. VAT
5
OIL SEAL
420650310
420650315
13,80€ Unit Price incl. VAT
6
ROTARY SEAL
420650370
420650371
51,26€ Unit Price incl. VAT
7
STATOR PLATE
420889721
420889726
365,54€ Unit Price incl. VAT
8
FLANGED TORX SCREW M6 X 35
420641258
4,00€ Unit Price incl. VAT
9
RETAINING PLATE
420926300
18,48€ Unit Price incl. VAT
10
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
11
MAGNETO FLYWHEEL
420296900
522,38€ Unit Price incl. VAT
12
TRIGGER WHEEL
420664082
420966851
21,42€ Unit Price incl. VAT
13
STARTER DOUBLE GEAR
420834874
420834871
356,00€ Unit Price incl. VAT
14
SCREW KIT
295501162
17,95€ Unit Price incl. VAT
15
Not Available As Spare Parts
XXX
Not Available
16
Not Available As Spare Parts
XXX
Not Available
17
Not Available As Spare Parts
XXX
Not Available
18
Not Available As Spare Parts
XXX
Not Available
19
BENDIX STARTER
420890637
305,00€ Unit Price incl. VAT
20
SPRING-DISK
420238300
8,76€ Unit Price incl. VAT
21
THRUST WASHER
420827261
8,86€ Unit Price incl. VAT
22>23
ELECTRIC STARTER ASSY
420888995
304,62€ Unit Price incl. VAT
23
O-RING
420631310
5,18€ Unit Price incl. VAT
24
CARBON BRUSH SET
420881340
76,00€ Unit Price incl. VAT
24
FLANGED TORX SCREW M6 X 85
420641228
8,76€ Unit Price incl. VAT
25
STARTER GEAR, 9 TEETH
420834522
86,00€ Unit Price incl. VAT
26
RETAINING RING
420845601
5,36€ Unit Price incl. VAT
27
FLANGED TORX SCREW M6 X 25
420641238
3,84€ Unit Price incl. VAT
28>29
CRANKSHAFT POSITION SENSOR ASSY
420966570
123,70€ Unit Price incl. VAT
29
SEAL_O-RING
420431580
17,62€ Unit Price incl. VAT
30
FLANGED TORX SCREW M6 X 16
420641048
3,52€ Unit Price incl. VAT
31
GASKET
420931130
27,94€ Unit Price incl. VAT
32
CLAMP
420853414
21,28€ Unit Price incl. VAT
33
FLANGED TORX SCREW M6 X 35
420641258
4,00€ Unit Price incl. VAT
35>37
BALL BEARING WITH BELLOWS ASSY
420832648
163,01€ Unit Price incl. VAT
36
O-RING
420631610
420631612
5,06€ Unit Price incl. VAT
37
GEAR CLAMP
420853023
8,76€ Unit Price incl. VAT
38
GEAR CLAMP
420851653
8,76€ Unit Price incl. VAT
