Cylinder Head - 230 for Sea-Doo GTX from 2017

Cylinder Head - 230

1

CYLINDER HEAD GASKET

420950772

157,01€ Unit Price incl. VAT

2>5

CYLINDER HEAD ASS Y

420413258

420413259

960,95€ Unit Price incl. VAT

2>5

REBUILD-CYLINDER HEAD

421000732

792,64€ Unit Price incl. VAT

3

DRIVE PIN 5 X 10

420929650

1,92€ Unit Price incl. VAT

4

PLUG SCREW M10 X 1

420641323

16,46€ Unit Price incl. VAT

5

HOSE NIPPLE

420924724

17,62€ Unit Price incl. VAT

6

EXHAUST VALVE, 31 MM

420254682

121,01€ Unit Price incl. VAT

7

INTAKE VALVE, 38 MM

420254294

420253163

48,46€ Unit Price incl. VAT

8

VALVE STEM SEAL

420630202

9,42€ Unit Price incl. VAT

9

VALVE SPRING

420238180

18,62€ Unit Price incl. VAT

10

VALVE SPRING INSIDE

420838280

14,02€ Unit Price incl. VAT

11

VALVE SPRING RETAINER

420254283

10,10€ Unit Price incl. VAT

12

VALVE COTTER

420253645

8,76€ Unit Price incl. VAT

13

TORX FLANGED SCREW M11 X 147

420641110

13,50€ Unit Price incl. VAT

14

FLANGED TORX SCREW M6 X 25

420641238

3,84€ Unit Price incl. VAT

15

TRANSPORT BRACKET PTO

420851618

31,44€ Unit Price incl. VAT

16

FLANGED TORX SCREW M6 X 16

420641048

3,52€ Unit Price incl. VAT

17

TRANSPORT BRACKET FRONT

420951382

24,32€ Unit Price incl. VAT

18

FLANGED TORX SCREW M6 X 16

420641048

3,52€ Unit Price incl. VAT

19

VALVE GUIDE

420254882

420253929

54,06€ Unit Price incl. VAT

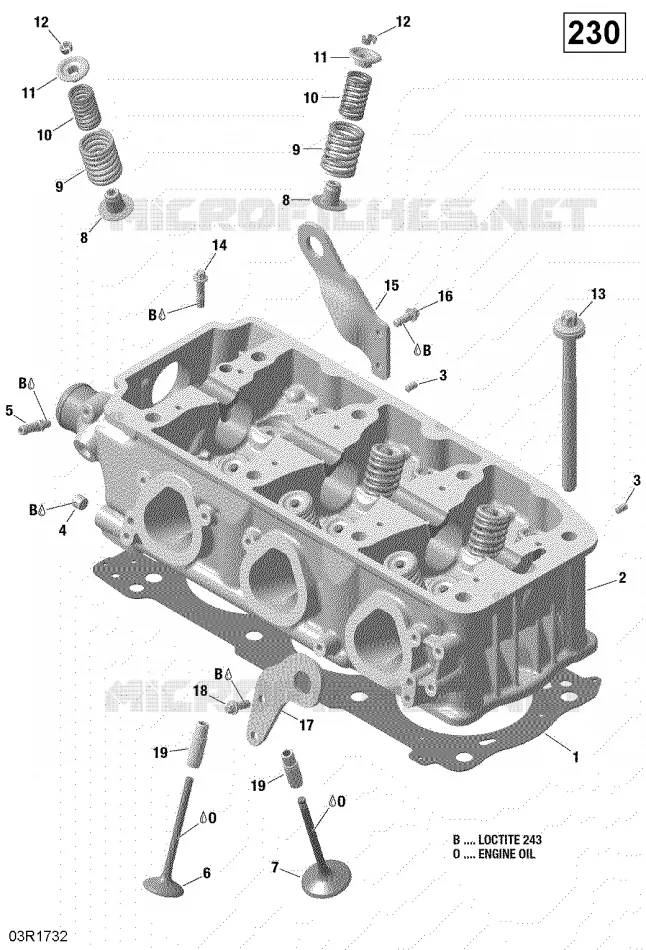

Find the detailed Cylinder Head - 230 SEA-DOO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original SEA-DOO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
